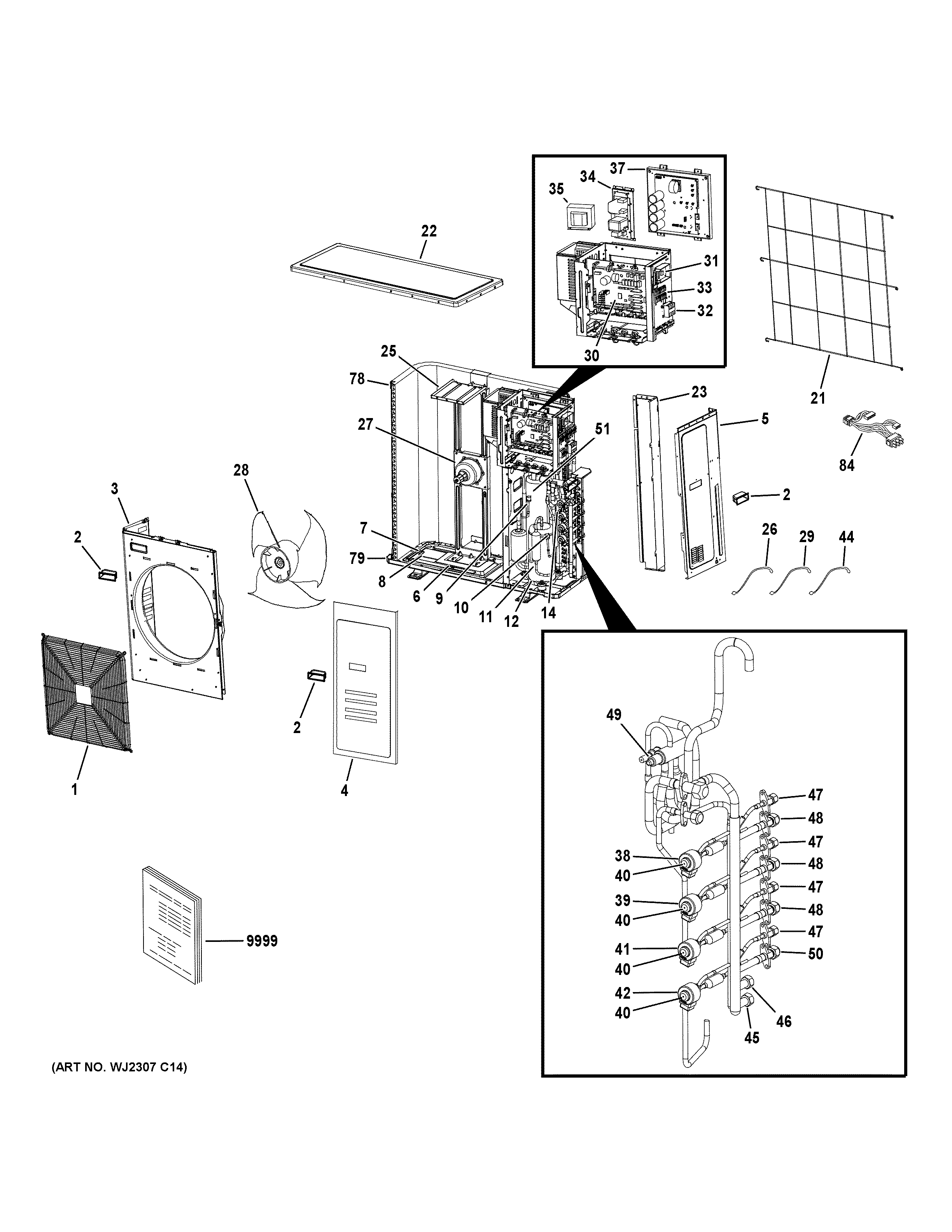

ASH436NCDDA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X32238 GE Front Grille
2	WJ65X32236 GE Handle
3	WJ71X32246 GE Front Panel
4	WJ71X32245 GE Front Service Panel
5	WJ71X32249 GE Right Side Panel
6	WJ65X26198 GE Baffle Late
7	WJ27X26209 GE Heating Element
8	WJ65X25035 GE Baffle Plate
9	WJ26X23722 GE Low Pressure Switch
10	WJ27X22646 GE High Pressure Switch
11	WJ98X31158 GE Compressor DC
12	CRANK CASE HEATER
14	WJ53X23724 GE Outdoor EEV Coil Assembly
21	WJ71X26197 GE Rear Grille
22	WJ76X32247 GE Top Cover
23	WJ71X32248 GE Back Panel
25	WJ65X31170 GE Motor Bracket
26	WJ26X28816 GE Refrigerator Defrost/Suction/Discharge Temperature
27	WJ94X31189 GE DC Fan Motor
28	WJ73X32233 GE Fan Blade
29	WJ26X28814 GE Gas Pipe Sensor
30	OUTDOOR POWER CONTROL BOARD
31	SERVICE POWER CONTROL BOARD
32	TERMINAL BLOCK (INDOOR)
33	WJ26X25073 GE Terminal Block Supply
34	WJ26X26200 GE Power Control Board Filter
35	WJ26X22659 GE Reactor
37	WJ26X31278 GE Inverter Board
38	WJ26X25034 GE Leveling Coil
39	WJ26X24364 GE Evaporator Coil
40	WJ26X22674 GE Expansion Valve Body
41	LEV COIL C (BLLUE)
42	WJ26X26195 GE Coil D (White)
44	WJ26X28815 GE Liquid Pipe Sensor
45	WJ53X25049 GE Liquid Stop Valve
46	WJ53X25050 GE Gas Stop Valve
47	WJ53X25046 GE Liquid Pipe 1/4"
48	WJ53X25047 GE Gas Pipe 3/8 Inch
49	WJ53X31157 GE 4-Way Valve
50	WJ53X26205 GE Gas Pipe 1/2 Inch
51	WJ53X31159 GE Gas Liquid Separator
78	WJ88X31176 GE Condenser Assembly
79	WJ76X32250 GE Bottom Plate Assembly
84	WJ35X29453 GE Wiring Harness Assembly
9999	PM INSTALL INSTRUCTIONS
