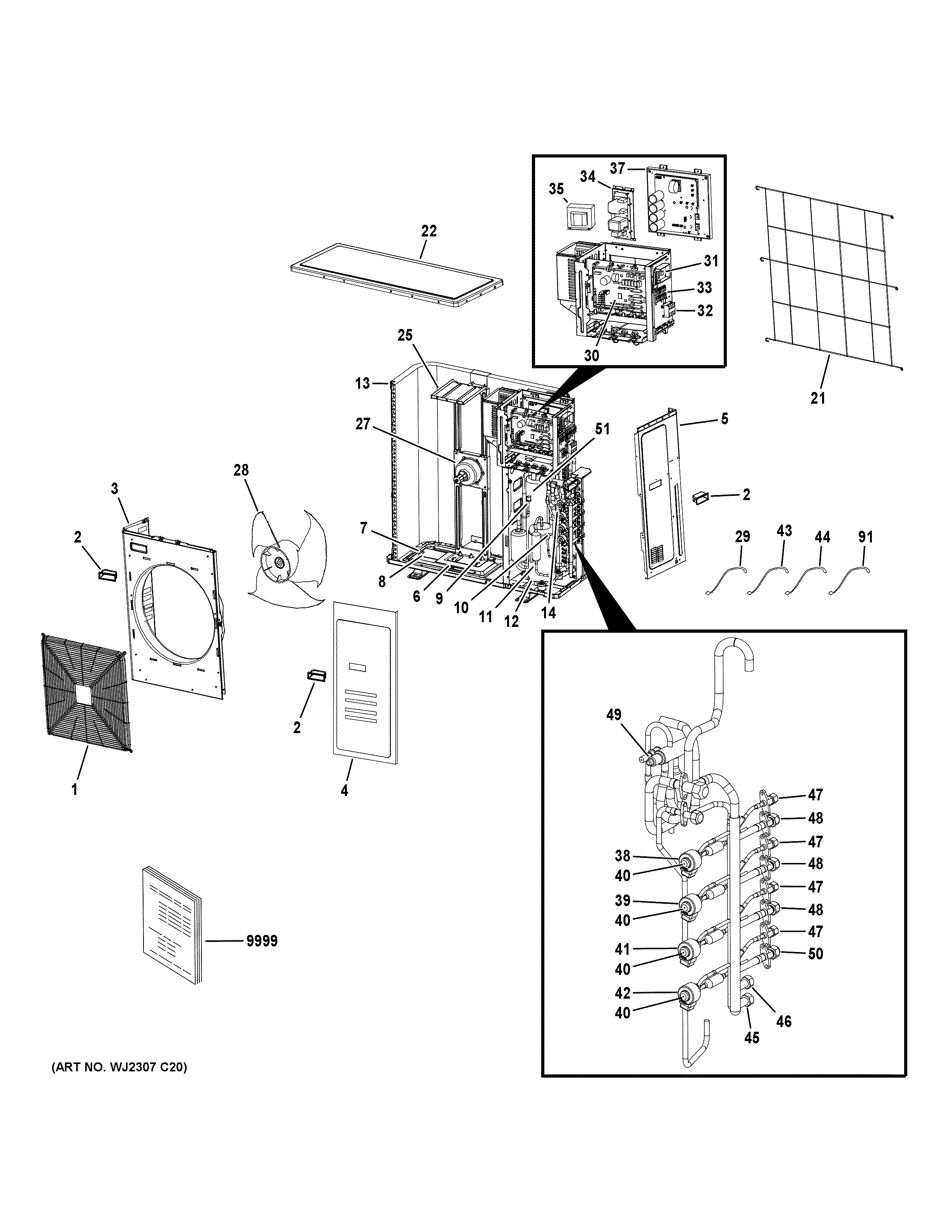

ASH436NCDWA1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:58+00:00ASH436NCDWA1 ROOM AIR CONDITIONER ProductsPositionProduct1FRONT GRILLE2WJ65X25041 GE Handle3WJ71X26196 GE Front Panel4FRONT SERVICE PANEL5RIGHT SIDE PANEL6WJ65X25035 GE Baffle Plate7WJ27X26209 GE Heating Element8WJ65X26198 GE Baffle Late9WJ26X23722 GE Low Pressure Switch10WJ27X22646 GE High Pressure Switch11WJ98X26204 GE Compressor12WJ27X22668 GE Sump Heater13WJ88X31176 GE Condenser Assembly14WJ53X23724 GE Outdoor EEV Coil Assembly21WJ71X26197 GE Rear Grille22WJ71X26207 GE Top Cover25WJ65X23569 GE Fan Motor Bracket27FAN MOTOR28WJ73X22642 GE Fan Blade29WJ26X28815 GE Liquid Pipe Sensor30WJ26X25053 GE Outdoor Power Control Board31WJ26X25054 GE Service Power Control Board32TERMINAL BLOCK (INDOOR)33WJ26X25073 GE Terminal Block Supply34WJ26X26200 GE Power Control Board Filter35WJ26X22659 GE Reactor37WJ26X26201 GE Inverter Driver Module38WJ26X25034 GE Leveling Coil39WJ26X24364 GE Evaporator Coil40WJ26X22674 GE Expansion Valve Body41LEV COIL C (BLLUE)42WJ26X26195 GE Coil D (White)43WJ26X28816 GE Refrigerator Defrost/Suction/Discharge Temperature44WJ26X28814 GE Gas Pipe Sensor45WJ53X25049 GE Liquid Stop Valve46WJ53X25050 GE Gas Stop Valve47WJ53X25046 GE Liquid Pipe 1/4"48WJ53X25047 GE Gas Pipe 3/8 Inch49WJ53X23567 GE 4-Way Valve50WJ53X26205 GE Gas Pipe 1/2 Inch51ACCUMULATOR91WJ26X26203 GE Defrost/Thermostat Sensor9999PM INSTALL INSTRUCTIONS
