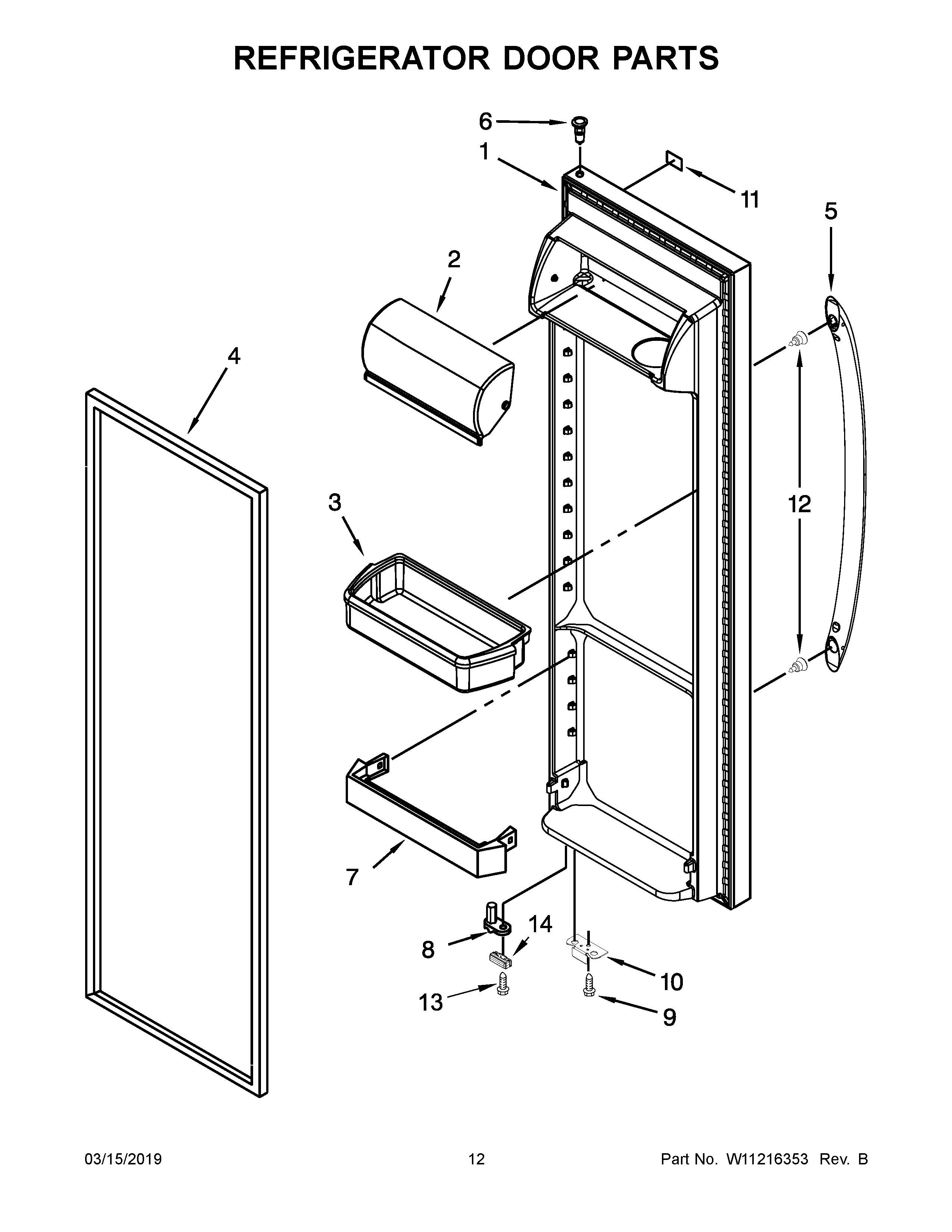

ASI2175GRB00 07 – REFRIGERATOR DOOR PARTS

ASI2175GRB00 07 – REFRIGERATOR DOOR PARTS

Written by

in

ASI2175GRB00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
1ADOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
1BDOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2Door, Compartment
3BIN, DOOR
4AGASKET, DOOR (BLACK)
4GASKET, DOOR (BEIGE)
5AHANDLE (BLACK)
5HANDLE (WHITE)
5BHANDLE (GREY)
6THIMBLE
7Trivet
8THIMBLE, CAM
9SCREW
10BRACKET, DOOR STOP (BLACK)
11ANAMEPLATE (BLACK)
11NAMEPLATE (WHITE)
11BMAY W11046241
12MAY W10288153
13ASCREW (BLACK)
13SCREW (WHITE)
14BUMPER, DOOR (WHITE)
14ABUMPER, DOOR (BLACK)
