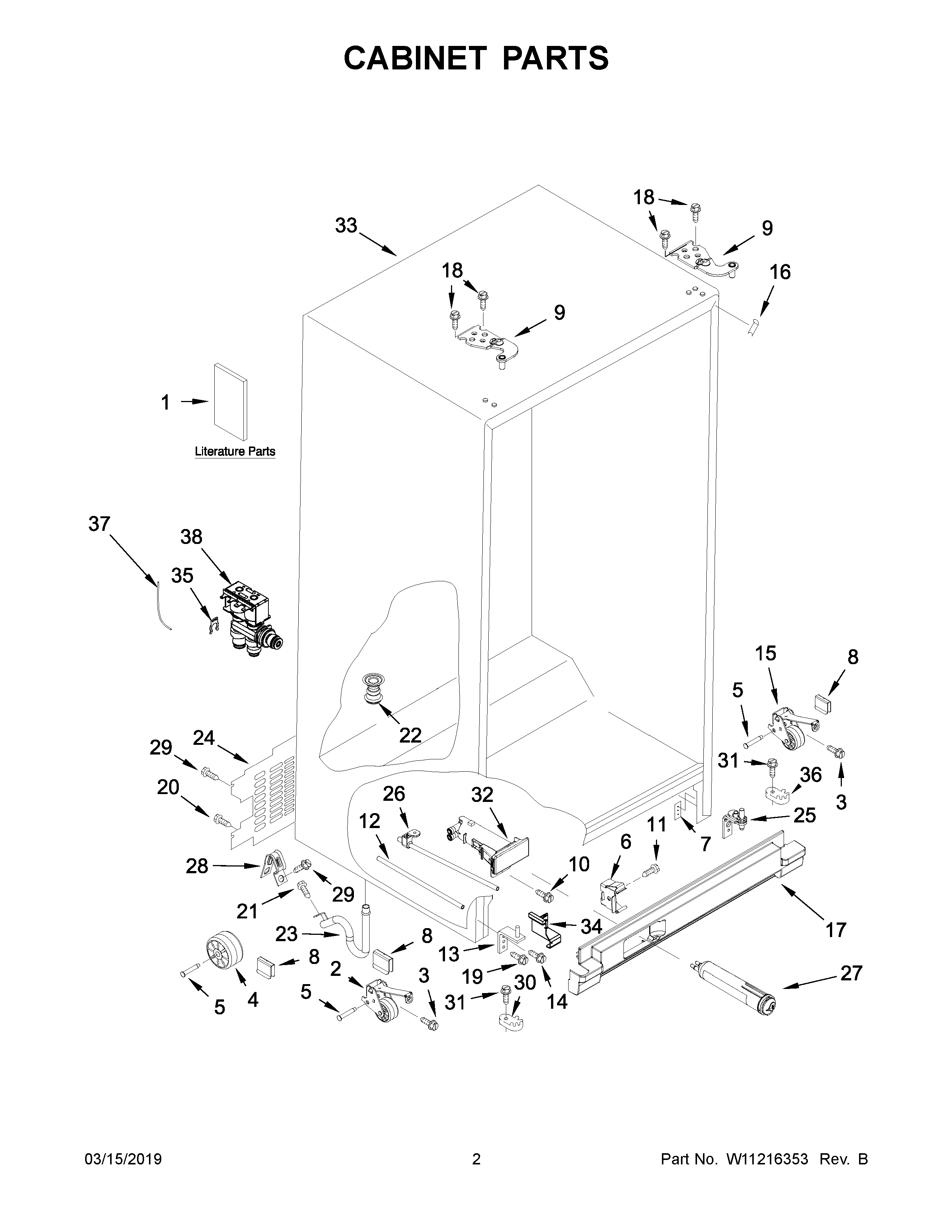

ASI2175GRS00 02 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1B	ENERGY GUIDE
1A	TECH SHEET
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	PLATE, SCREW (REFRIGERATOR)
7A	PLATE, SCREW (FREEZER)
8	CLIP, ROLLER
9A	HINGE, TOP (WHITE (FREEZER))
9	HINGE, TOP (WHITE (REFRIGERATOR))
9B	HINGE, TOP (BLACK (REFRIGERATOR))
9C	HINGE, TOP (BLACK (FREEZER))
10	MAY 489500
11	MAY 488500
12	TUBE, FILTER OUTLET
13	ASSEMBLY, BOTTOM HINGE (FREEZER)
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16A	FILLER, WRAPPER (BLACK)
16	FILLER, WRAPPER (WHITE)
17A	GRILLE (BLACK)
17	GRILLE (WHITE)
18	SCREW (WHITE)
18A	SCREW (BLACK)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	COVER, UNIT
25	ASSEMBLY, BOTTOM HINGE (REFRIGERATOR)
26	TUBE, FILTER INLET
27	FILTER, WATER
28	MAY 549193
29	MAY W10141645
30	CLOSER, DOOR (FREEZER)
31	MAY W10142234
32	HOUSING, WATER FILTER (WHITE)
32A	HOUSING, WATER FILTER (BLACK)
33	LINER (NOT A SERVICEABLE PART)
34	ASSEMBLY, BRACKET
35A	LOCKING RING (5/16)
35	LOCKING RING (1/4)
36	CLOSER, LOWER CAM DOOR (REFRIGERATOR)
37	MAY W10357069
38	MAY W10179146
