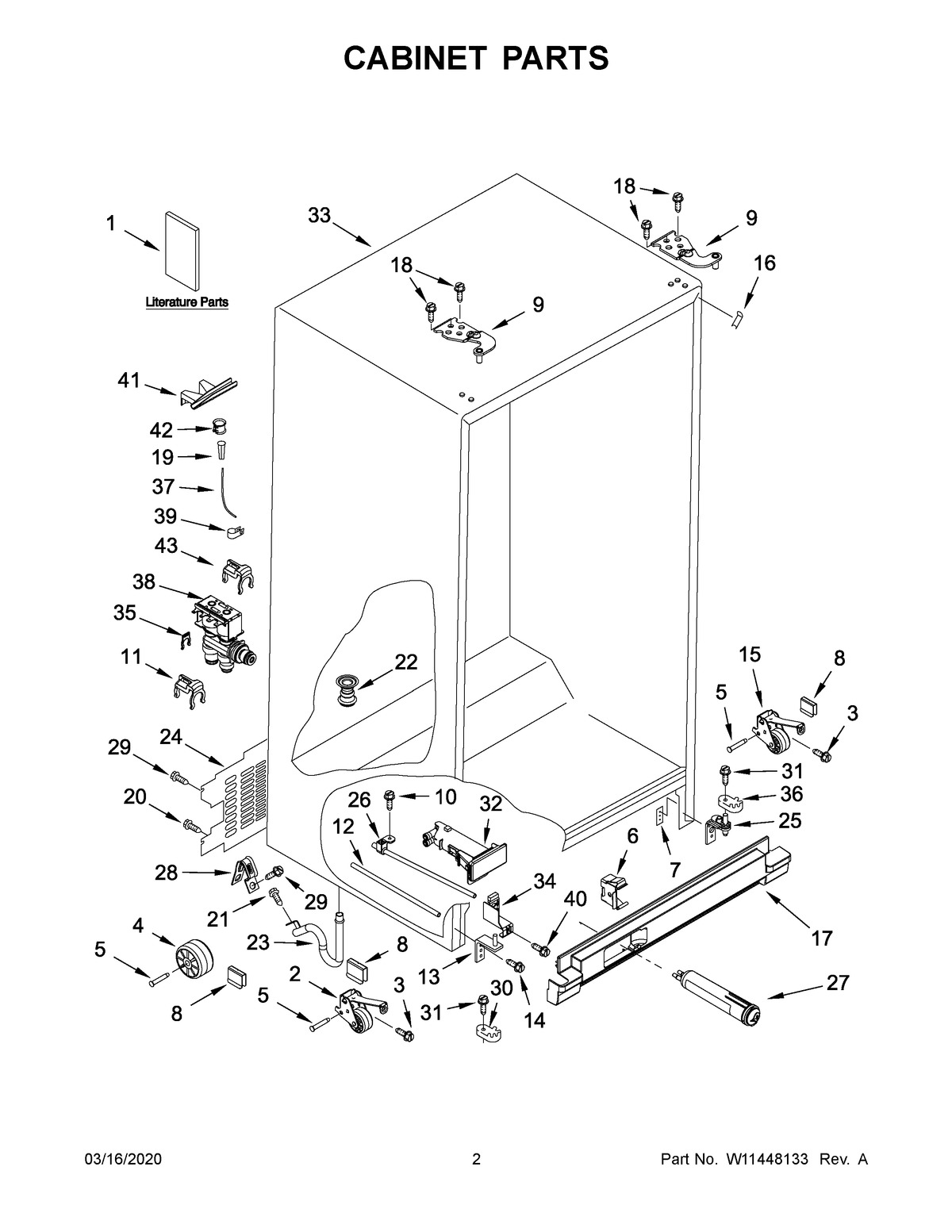

ASI2175GRS03 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET
1	USE & CARE GUIDE
1B	ENERGY GUIDE
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7A	PLATE, SCREW (FREEZER)
7	PLATE, SCREW (REFRIGERATOR)
8	CLIP, ROLLER
9C	HINGE, TOP (BLACK (FREEZER))
9B	HINGE, TOP (BLACK (REFRIGERATOR))
9A	HINGE, TOP (WHITE (FREEZER))
9	HINGE, TOP (WHITE (REFRIGERATOR))
10	MAY 489500
11	CONNECTOR, DOUBLE LOCK
12	TUBE, FILTER OUTLET
13	ASSEMBLY, BOTTOM HINGE (FREEZER)
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	FILLER, WRAPPER (WHITE)
16A	FILLER, WRAPPER (BLACK)
17	GRILLE (WHITE)
17A	GRILLE (BLACK)
18	SCREW (WHITE)
18A	SCREW (BLACK)
19	MAY 2181939
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	COVER, UNIT
25	ASSEMBLY, BOTTOM HINGE (REFRIGERATOR)
26	TUBE, FILTER INLET
27	FILTER, WATER
28	CLAMP, POWER CORD
29	MAY W10141645
30	CLOSER, DOOR (FREEZER)
31	MAY W10142234
32A	HOUSING, WATER FILTER (BLACK)
32	HOUSING, WATER FILTER (WHITE)
33	LINER (NOT A SERVICEABLE PART)
34	ASSEMBLY, BRACKET
35A	LOCKING RING (5/16)
35	LOCKING RING (1/4)
36	CLOSER, LOWER CAM DOOR (REFRIGERATOR)
37	MAY W10357069
38	MAY W10179146
39	CLAMP, TUBE
40	MAY 8281149
41	CHUTE, WATER
42	CLAMP, TUBE
43	DOUBLE LOCK RING (1/4)
