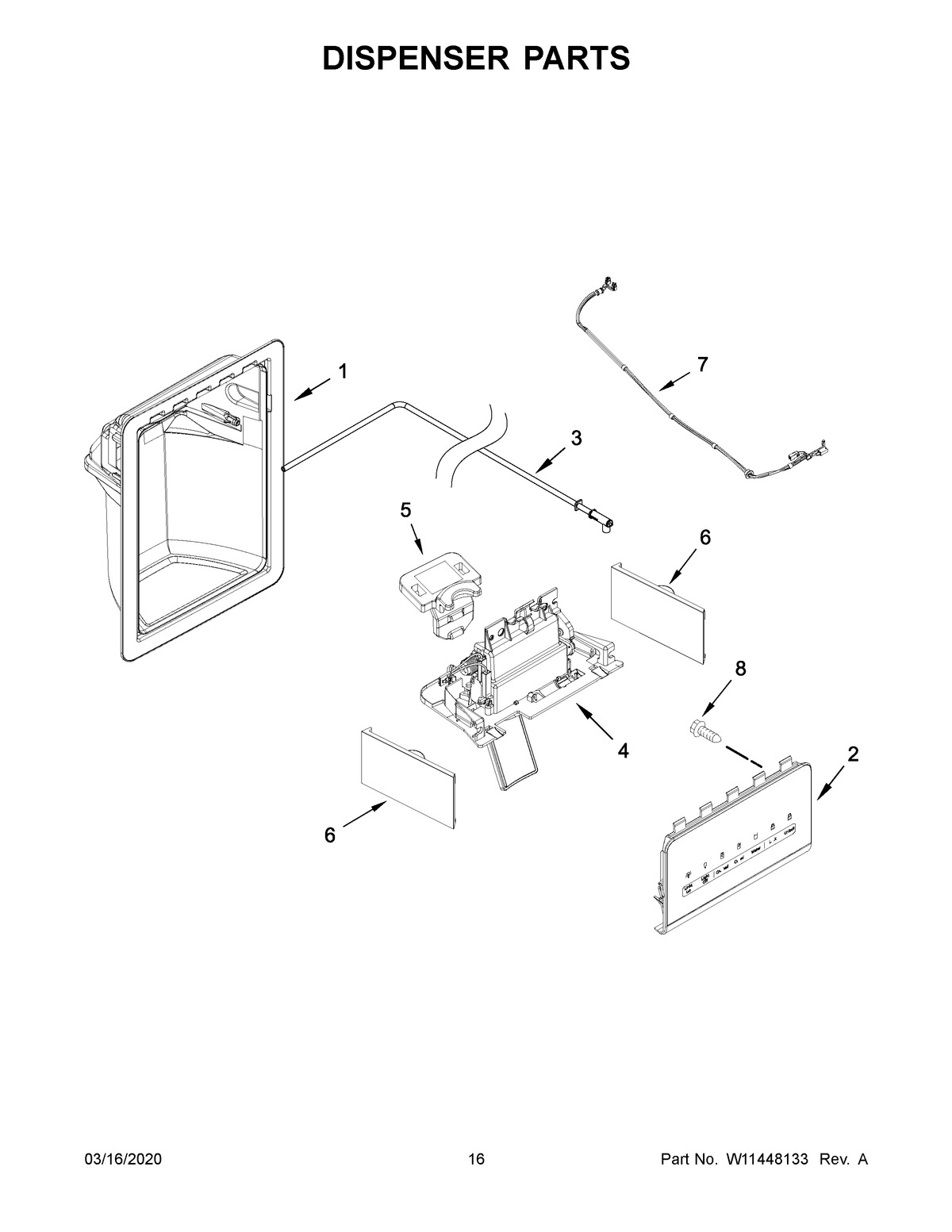

ASI2175GRS03 09 – DISPENSER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
3	ASSEMBLY, WATER FITTING
4	ASSEMBLY, SEPARATOR (WHITE)
4A	ASSEMBLY, SEPARATOR (BLACK)
5	RETAINER, SEPARATOR HOSE
6B	FRONT COVER, DISPENSER (BLACK (LEFT HAND))
6C	FRONT COVER, DISPENSER (BLACK (RIGHT HAND))
6A	FRONT COVER, DISPENSER (WHITE (RIGHT HAND))
6	FRONT COVER, DISPENSER (WHITE (LEFT HAND))
7	HARNESS, WIRE
8	Screw
