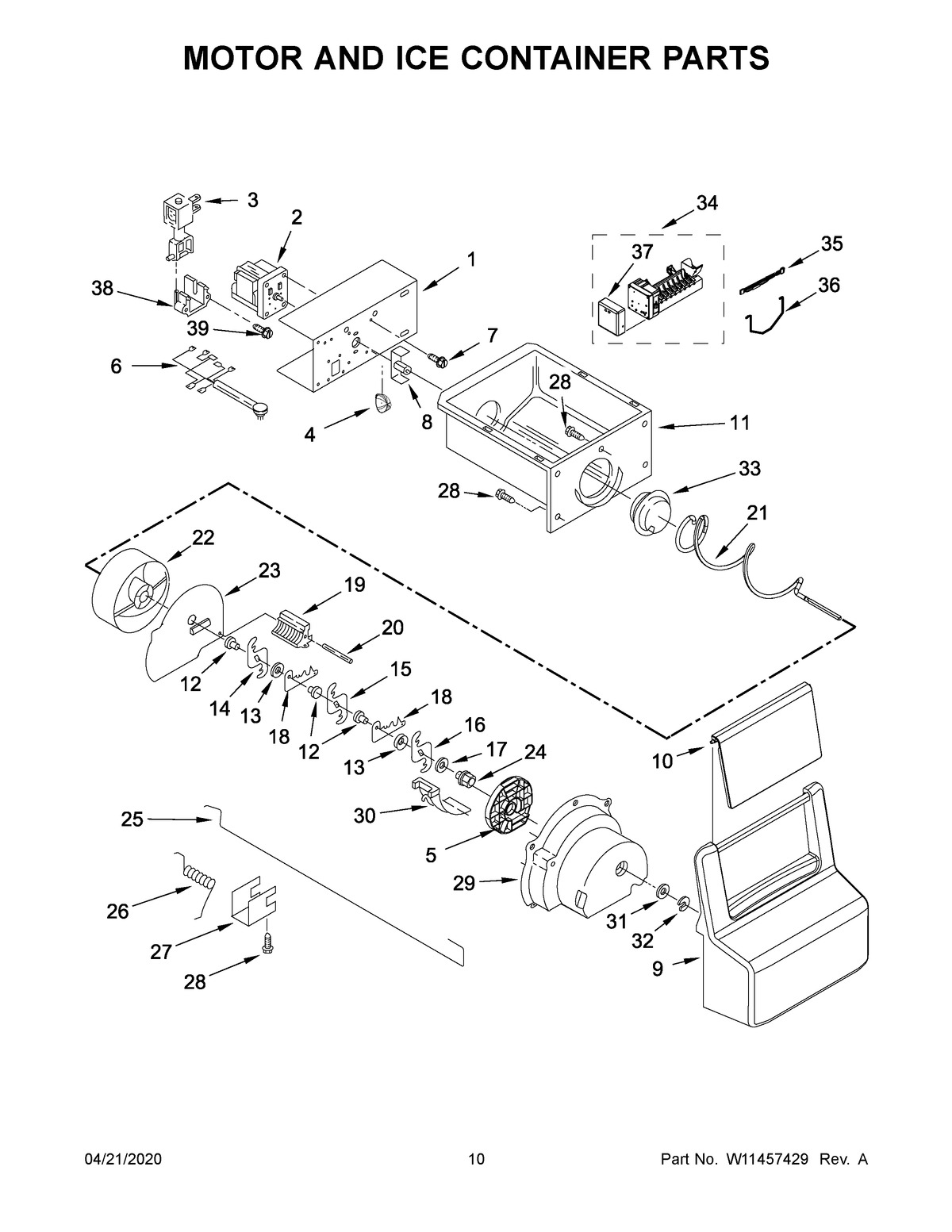

ASI2175GRS04 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	MOTOR, DISPENSER
3	Soleniod Assembly
4	MAY W11251749
5	SPACER – CRUSHER HOUSING
6	ASSEMBLY, ICE DISPENSER WIRING
7	Screw 8-32 x 5/16
8	MAY W10169511
9	MAY W10189274
10	DOOR, ICE
11	MAY W10670844
12	SPACER, STEP
13	SPACER, FLAT
14	MAY W10278731
15	MAY W10278732
16	MAY W10278733
18	MAY W10181990
19	MAY W10189708
20	MAY 489229
21	MAY W10295082
22	MAY W10698642
23	MAY W10403781
24	MAY 1119018
25	MAY W10838981
26	MAY 1119020
27	MAY 1119021
28	MAY 488886
29	MAY W10185018
30	MAY 1119017
31	MAY 489234
32	MAY 489236
33	MAY W10698668
34	MAY W10300022
35	HARNESS, ICEMAKER
36	ASSEMBLY, SHUT OFF ARM
37	COVER
38	Guide, Soleniod
39	SCREW
100	MAY W10558424
