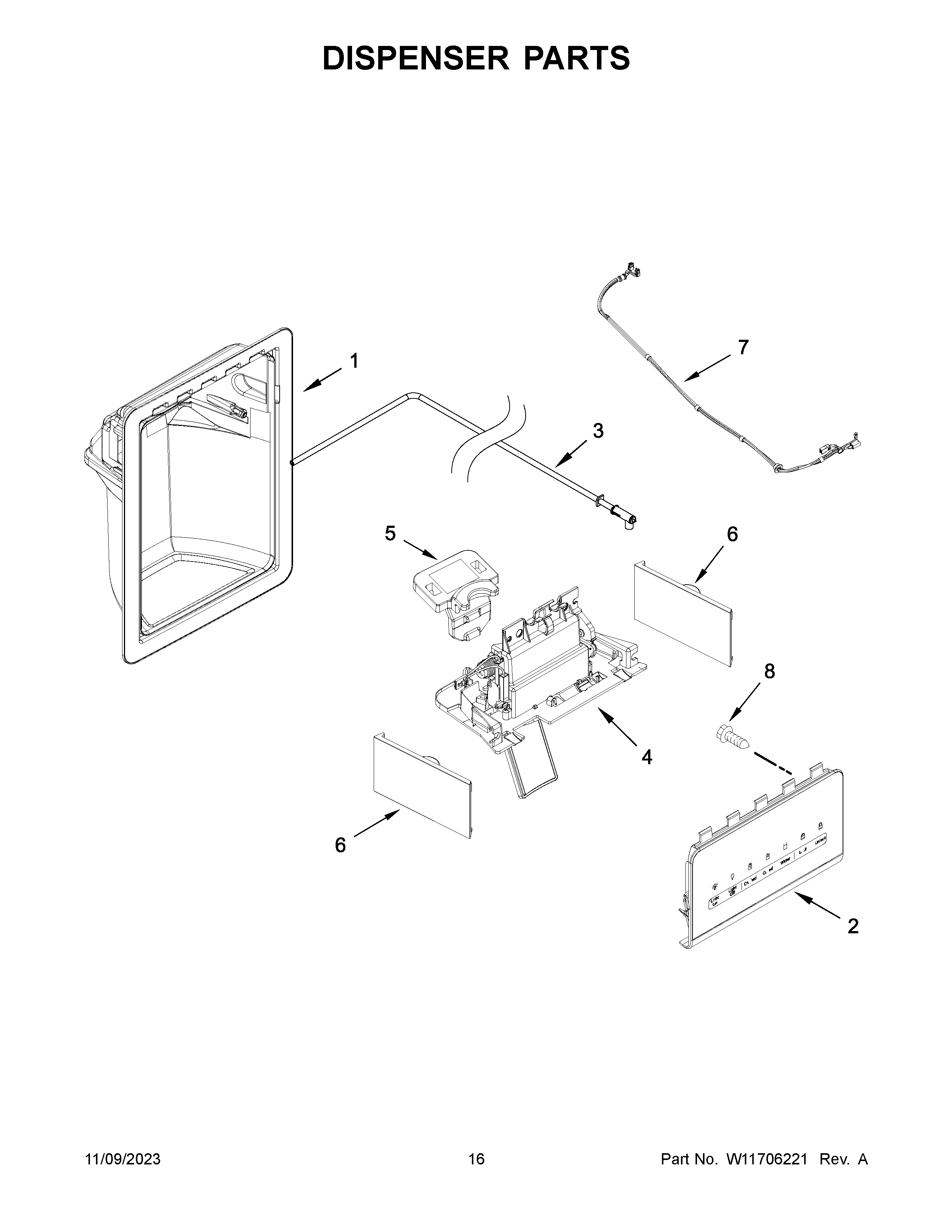

ASI2175GRS09 09 – DISPENSER PARTS

ASI2175GRS09 09 – DISPENSER PARTS

Written by

in

ASI2175GRS09 09 – DISPENSER PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W11216949-includeCORE Whirlpool W11216949 Refrigerator Electronic Control Board
3W11163765 Whirlpool Refrigerator Fitting
4W11678841 Whirlpool Ice Door Assembly
4AW11678840 Whirlpool Ice Door
5W11397167 Whirlpool Refrigerator Retainer
6CW11311800 Whirlpool Refrigerator Cover
6AW11311798 Whirlpool Cover Assembly
6BW11311799 Whirlpool Refrigerator Cover
6W11311797 Whirlpool Refrigerator Cover
7W10898319 Whirlpool Refrigerator Wire Harness
8WP8281163 Whirlpool Refrigerator Screw
