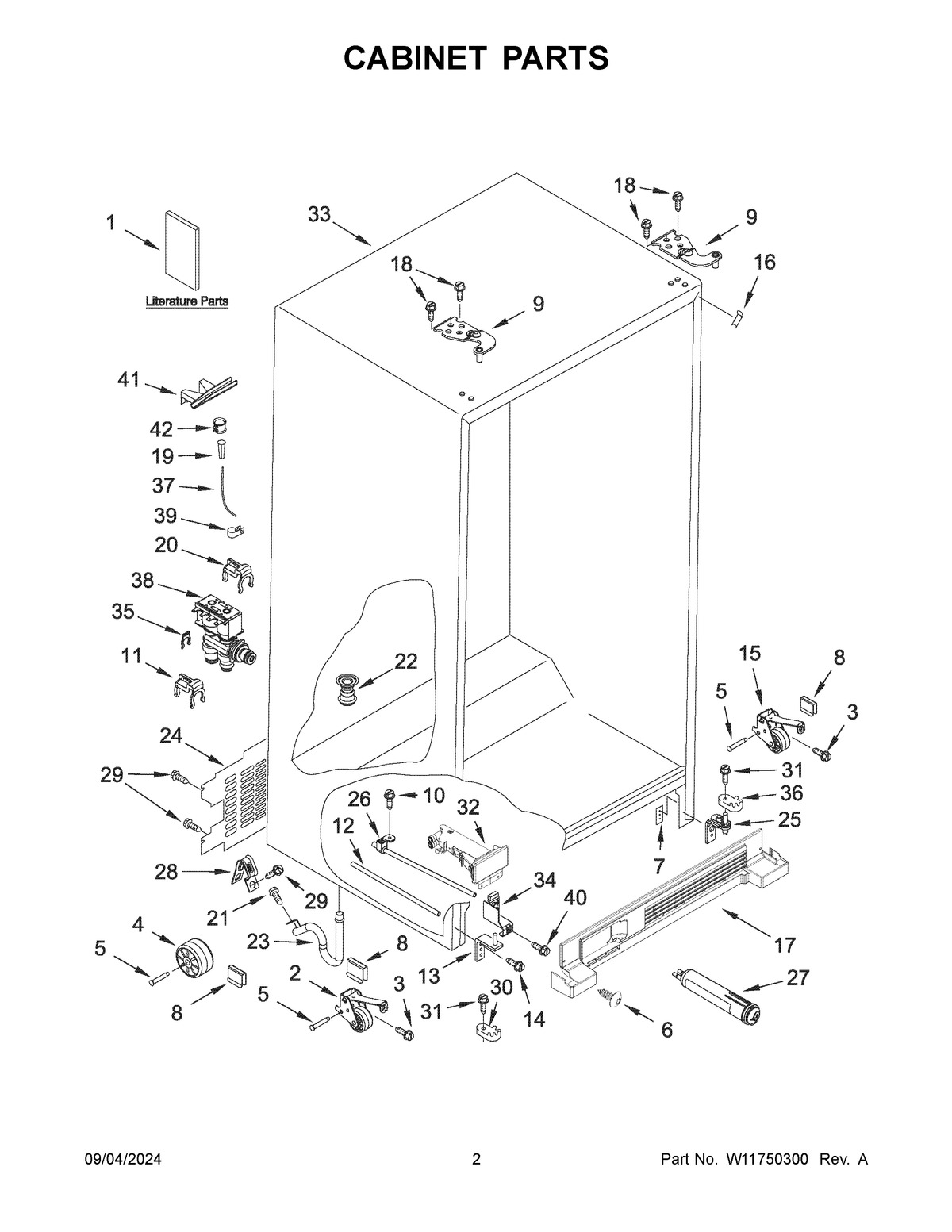

ASI2175GRS10 02 – CABINET PARTS

ASI2175GRS10 02 – CABINET PARTS

Written by

in

ASI2175GRS10 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET (ENGLISH)
1BENERGY GUIDE
1USE & CARE GUIDE
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP98008545 Whirlpool Screw
7AW10904380 Whirlpool Plate
7W11036715 Whirlpool Refrigerator Plate
9W11505709 Whirlpool Refrigerator Door Hinge
9AW11505710 Whirlpool Refrigerator Door Hinge
10W10141518 Whirlpool Refrigerator Screw
11W11091654 Whirlpool Refrigerator Double Lock WTR Connect
12W11162036 Whirlpool Refrigerator Water Tube
13W11687636 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16W11219641 Whirlpool Refrigerator Filler
17W11282556 Whirlpool Refrigerator Grille
18SCREW, HINGE (WHITE)
194387491 Whirlpool Refrigerator Insert
20W11252188 Whirlpool Connector
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24W11613262 Whirlpool Unit Cover
25W11399415 Whirlpool Refrigerator Door Hinge
26W11162040 Whirlpool Refrigerator Water Tube
27EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28W11234470 Whirlpool Refrigerator Clamp
29SCREW
30W11679635 Whirlpool Door Cam
31WP489483 Whirlpool Screw
32HOUSING
33CABINET (NOT A SERVICABLE PART)
34W10897565 Whirlpool Refrigerator Bracket
35AW11678575 Whirlpool Ring
35W11676611 Whirlpool Ring
36CAM-DOOR
37W10823511 Whirlpool Refrigerator Water Tube
38VALVE WASHER
39W11456069 Whirlpool Refrigerator Clamp
40WP489399 Whirlpool Refrigerator Screw
41W11645360 Whirlpool Chute
42W10861184 Whirlpool Refrigerator Clamp
