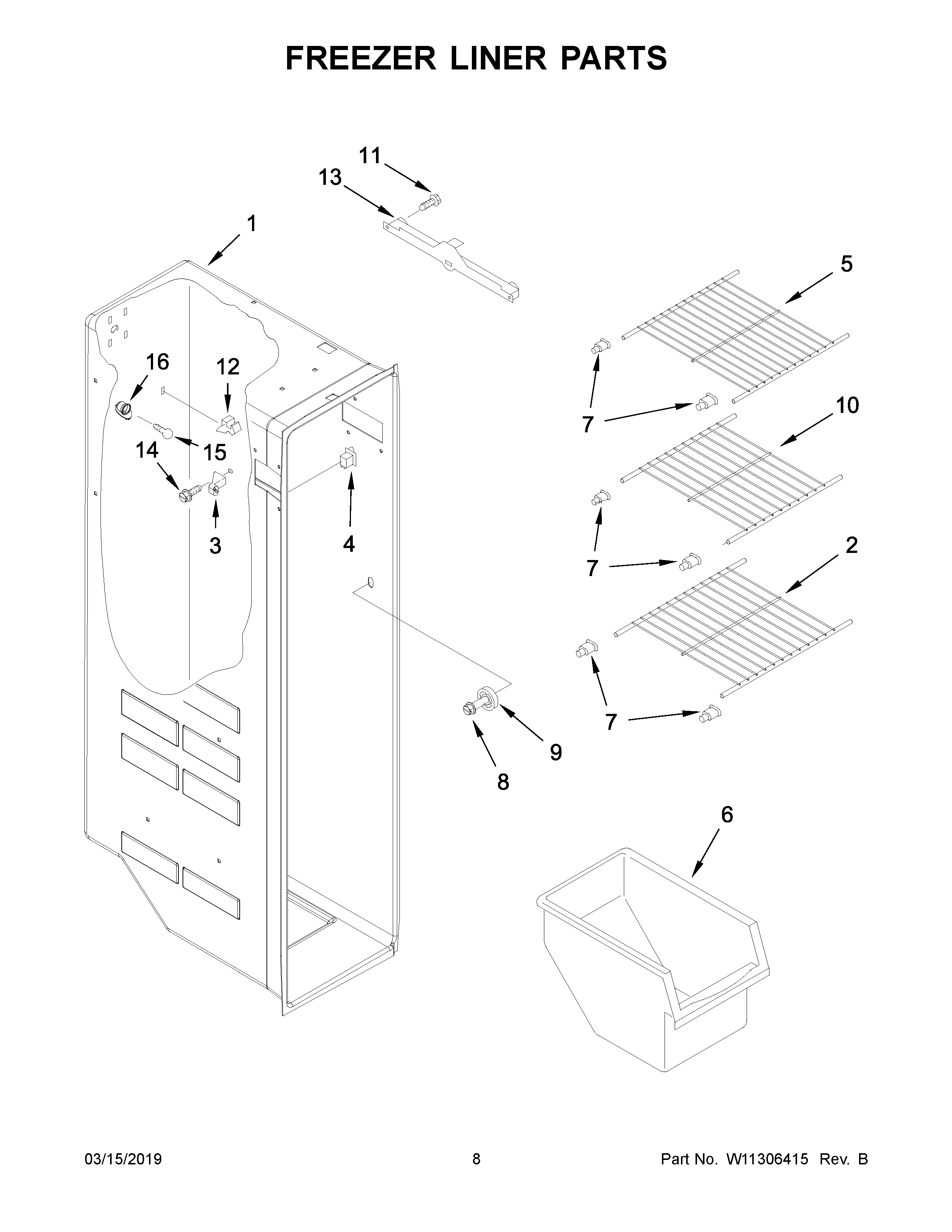

ASI2175GRW01 05 – FREEZER LINER PARTS

ASI2175GRW01 05 – FREEZER LINER PARTS

Written by

in

ASI2175GRW01 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10318952
3Support, Stud (4)
4Switch, Rocker Arm
5SHELF, WIRE (SHORT)
6MAY 2309758
7Cup, Shelf Mount
8MAY W10191954
9Stud Assembly
10MAY W10318953
11MAY 489100
12MAY 2315163
13ASLIDE, ICE CONTAINER (RIGHT)
13SLIDE, ICE CONTAINER (LEFT)
14MAY 3400893
15BULB, LIGHT
16MAY W10134764
