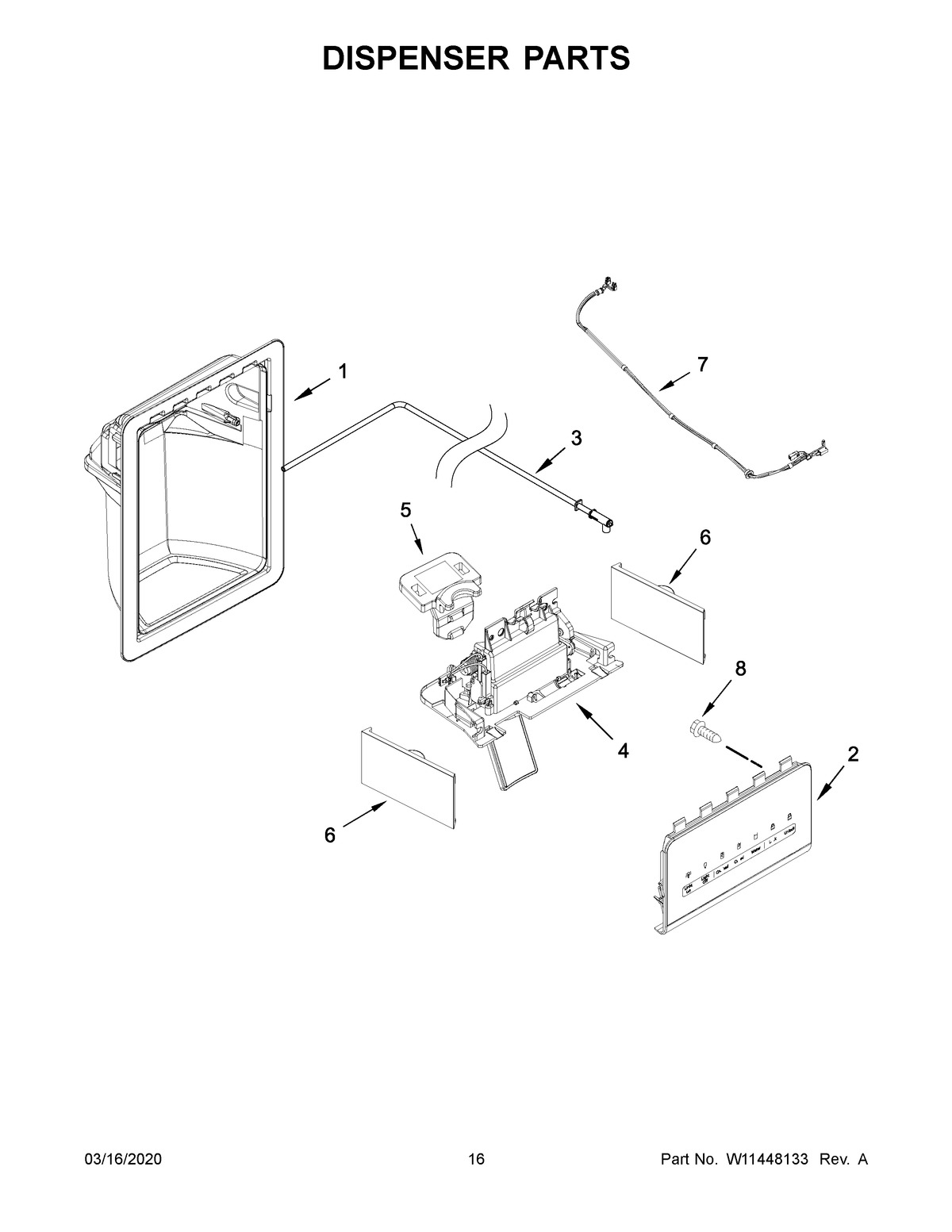

ASI2175GRW03 09 – DISPENSER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
3ASSEMBLY, WATER FITTING
4ASSEMBLY, SEPARATOR (WHITE)
4AASSEMBLY, SEPARATOR (BLACK)
5RETAINER, SEPARATOR HOSE
6BFRONT COVER, DISPENSER (BLACK (LEFT HAND))
6CFRONT COVER, DISPENSER (BLACK (RIGHT HAND))
6AFRONT COVER, DISPENSER (WHITE (RIGHT HAND))
6FRONT COVER, DISPENSER (WHITE (LEFT HAND))
7HARNESS, WIRE
8Screw
