ASI2175GRW07 08 – FREEZER DOOR PARTS

ASI2175GRW07 08 – FREEZER DOOR PARTS

Written by

in

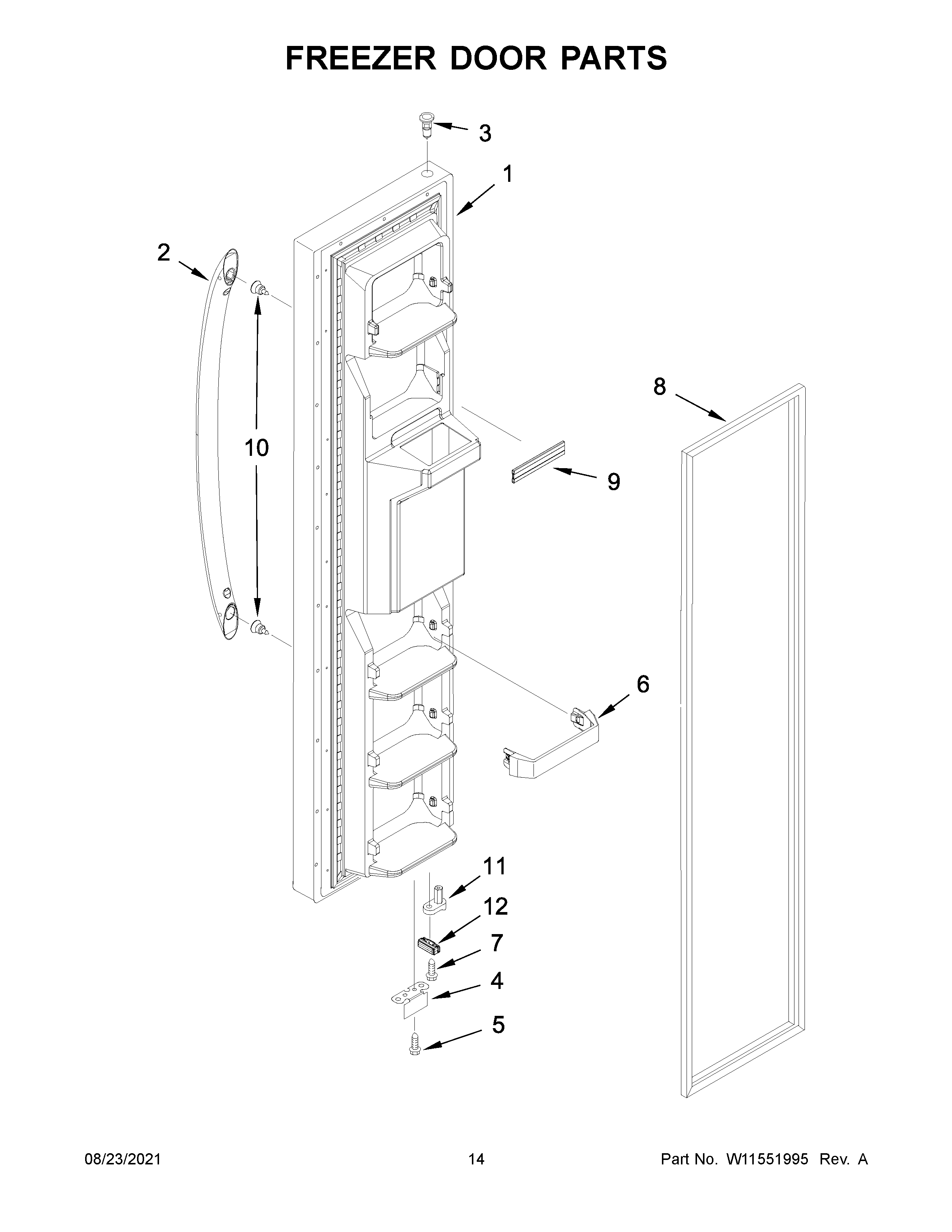

ASI2175GRW07 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW11025544 Whirlpool Refrigerator FIP Door
1ALW11032729 Whirlpool Refrigerator DOR FIP
1LW11032721 Whirlpool Refrigerator DOR-FIP
2BWPW10257120 Whirlpool Refrigerator Handle
2AW10210943A Whirlpool Refrigerator Handle
2W10210942A Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309717 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
8A2159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10288153 Whirlpool Refrigerator Screw
11W11661926 Whirlpool Refrigerator Door Cam
12AW10407187 Whirlpool Refrigerator Door Bumper
12BUMPER, DOOR (WHITE)
