ASI2175GRW10 03 – REFRIGERATOR LINER PARTS

ASI2175GRW10 03 – REFRIGERATOR LINER PARTS

Written by

in

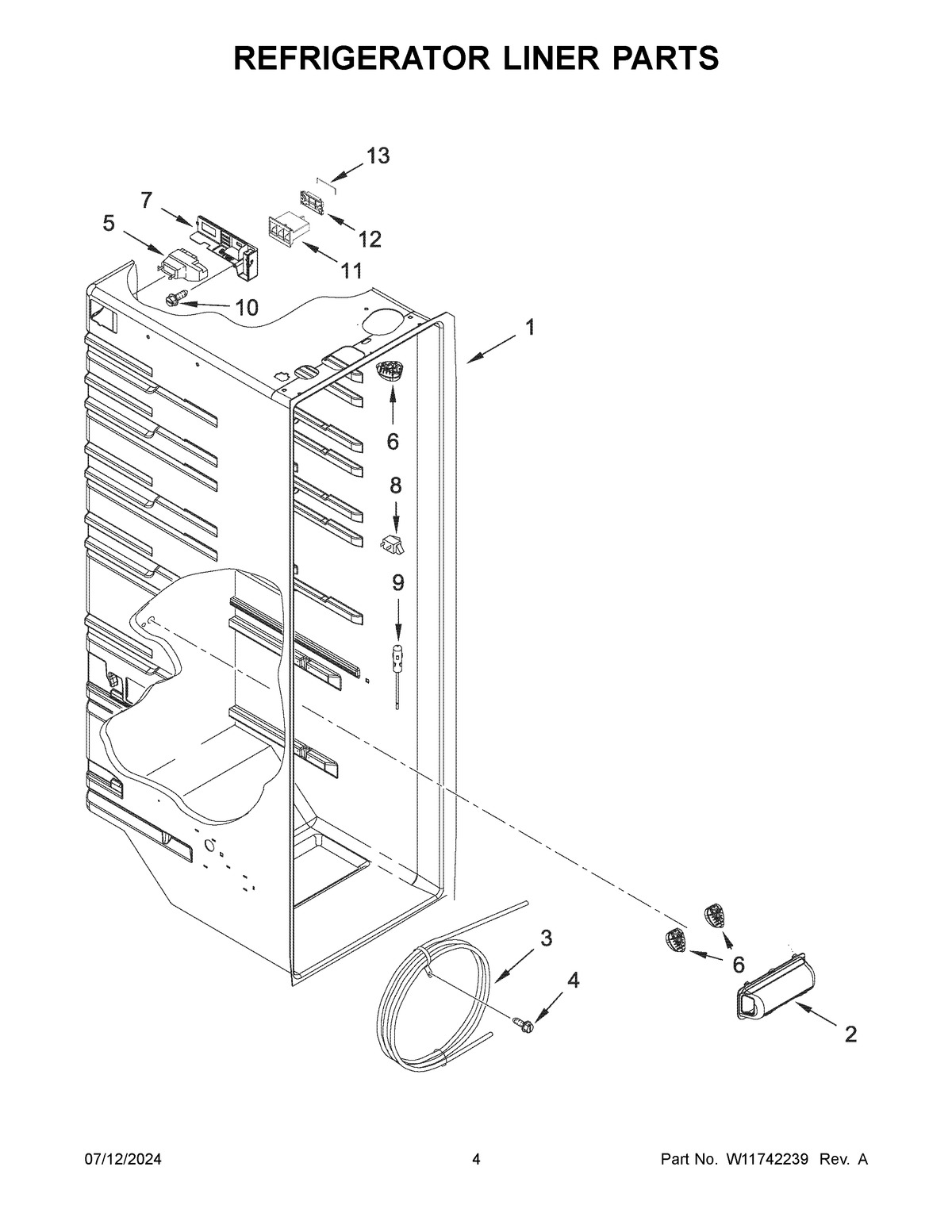

ASI2175GRW10 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2W11239891 Whirlpool Refrigerator Light Lens
3TUBING, WATER RESERVOIR
4W10141518 Whirlpool Refrigerator Screw
5W11380595 Whirlpool Refrigerator Diffuser
6MODULE
7W11546609 Whirlpool Refrigerator Control Box
8W11396033 Whirlpool Refrigerator Rocker Switch
9WPW10384183 Whirlpool Thermistor
10W10759522 Whirlpool Screw
11W10901825 Whirlpool Housing
12W10901827 Whirlpool Knob
13W10901826 Whirlpool Rod Assembly
