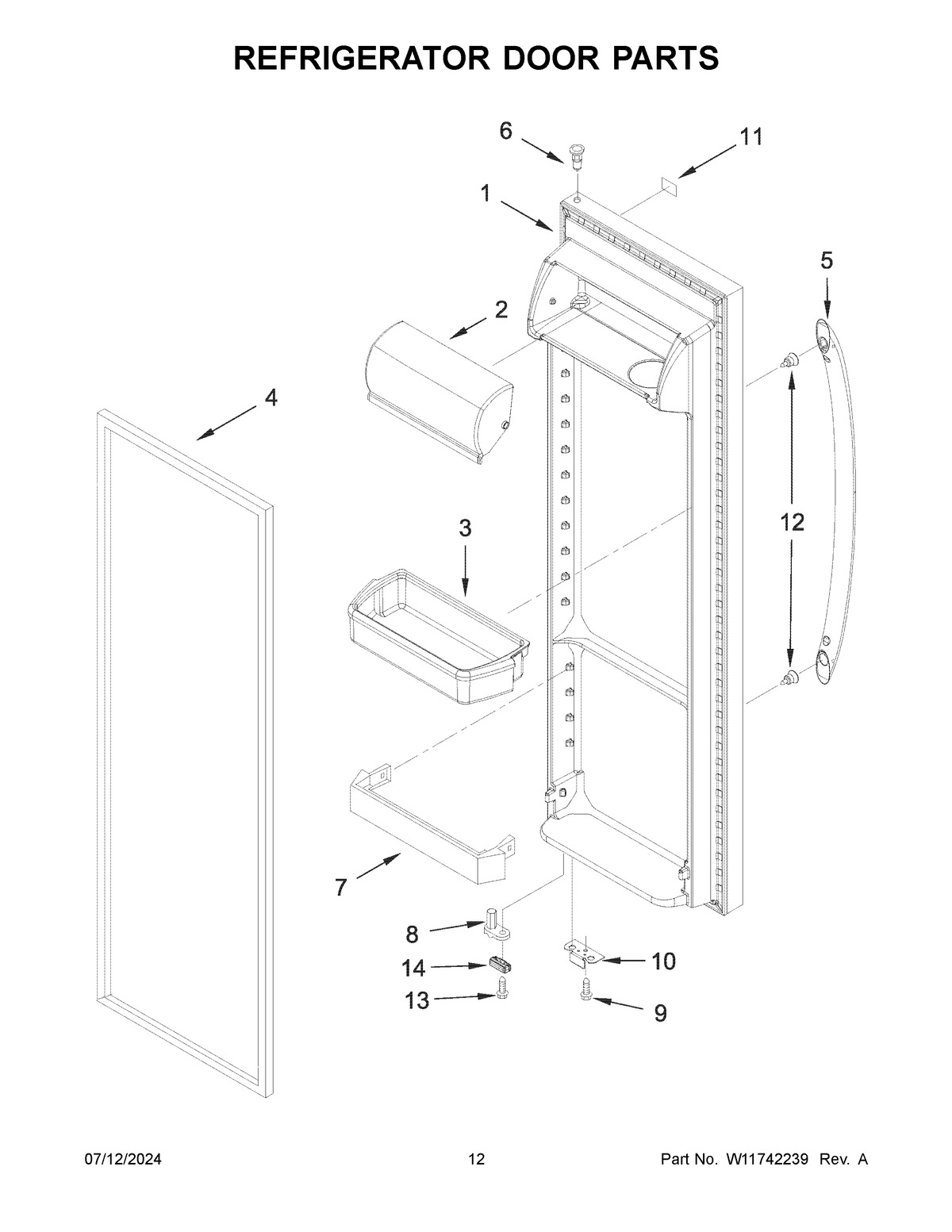

ASI2175GRW10 07 – REFRIGERATOR DOOR PARTS

ASI2175GRW10 07 – REFRIGERATOR DOOR PARTS

Written by

in

ASI2175GRW10 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10912366 Whirlpool Refrigerator DOR-FIP
2WP2256101 Whirlpool Dairy Door
3W11174793 Whirlpool Refrigerator Upper Door Shelf Bin
42159073 Whirlpool Refrigerator Door Gasket
5W10210942A Whirlpool Refrigerator Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11428492 Whirlpool Refrigerator Nameplate
12WPW10288153 Whirlpool Refrigerator Screw
13WPW10296804 Whirlpool Refrigerator Screw
14BUMPER, DOOR (WHITE)
