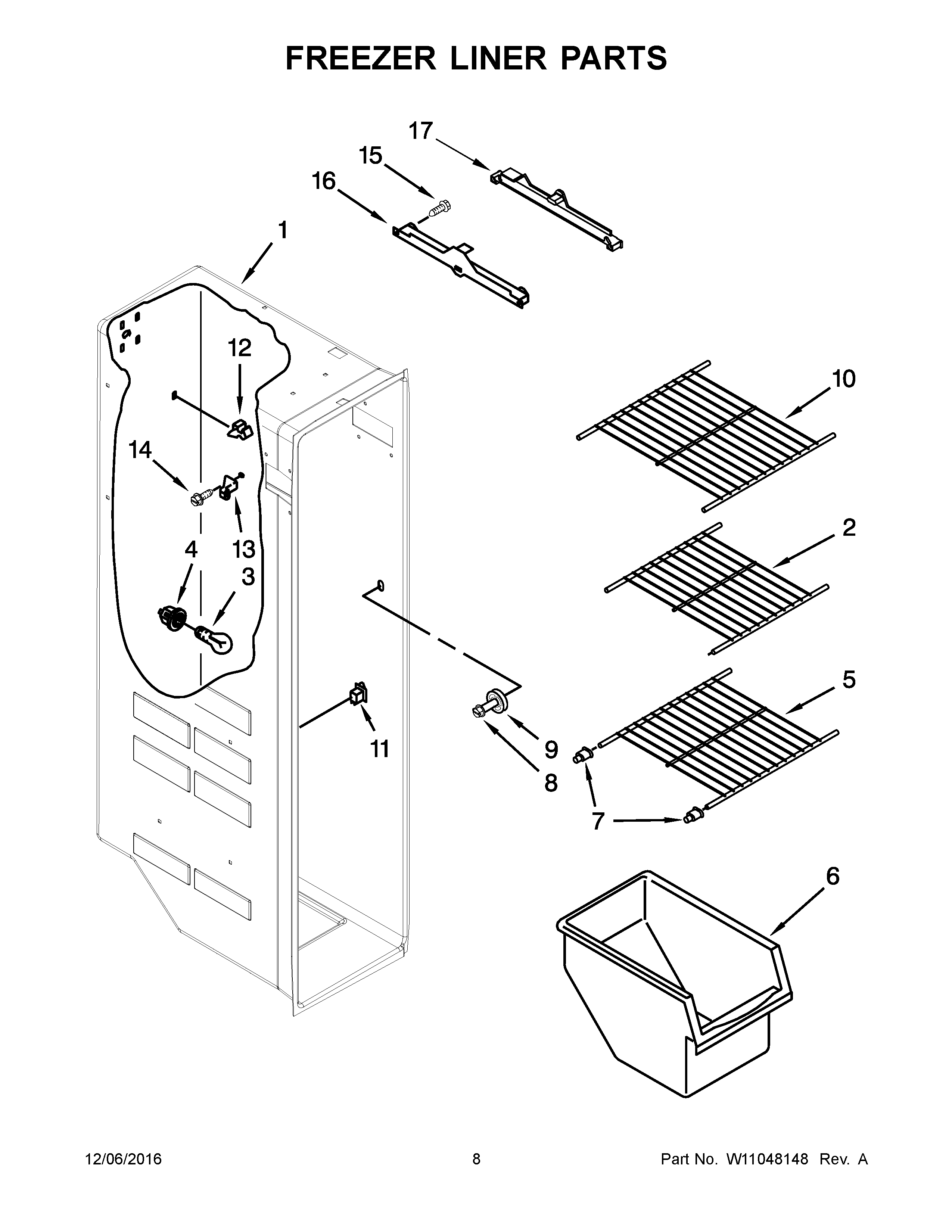

ASI2275FRB00 05 – FREEZER LINER PARTS

ASI2275FRB00 05 – FREEZER LINER PARTS

Written by

in

ASI2275FRB00 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	SHELF, WIRE (SHORT)
3	BULB, LIGHT
4	Socket, Light
5	MAY W10318952
6	MAY 2309758
7	Cup, Shelf Mount
8	MAY W10191952
9	ASSEMBLY, SHELF STUD
10	MAY W10318953
11	Switch, Rocker Arm
12	MAY 2315163
13	Support, Stud (4)
14	MAY 3400893
15	MAY 489100
16	SLIDE, ICE CONTAINER (LEFT)
17	SLIDE, ICE CONTAINER (RIGHT)
