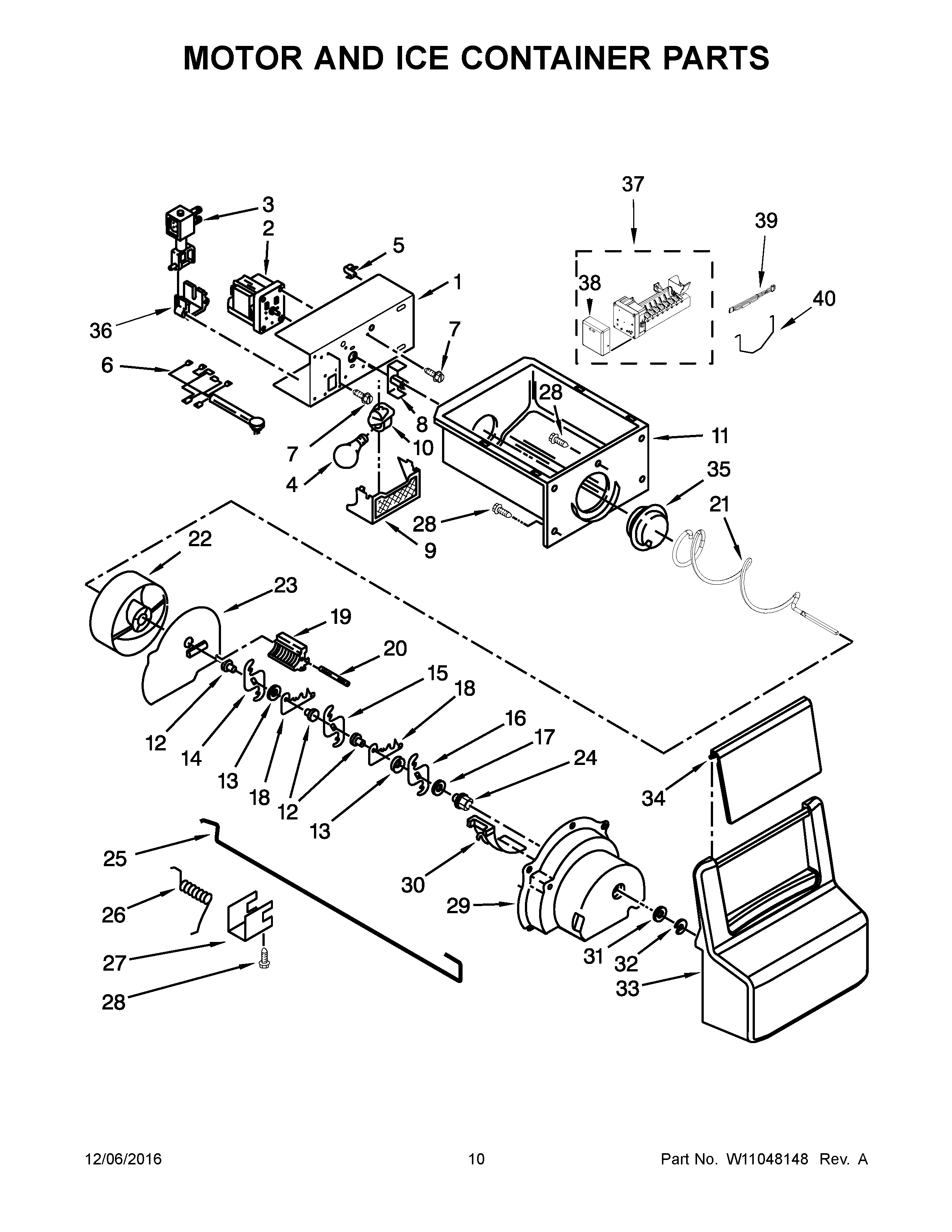

ASI2275FRB00 06 – MOTOR AND ICE CONTAINER PARTS
Written by
in
ASI2275FRB00 06 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10284487
2
MAY W10317991
3
Soleniod Assembly
4
BULB, LIGHT
5
MAY 1115374
6
MAY W10298069
7
Screw 8-32 x 5/16
8
MAY W10169511
9
MAY 2171706
10
Socket, Light
11
MAY W10670844
12
MAY W10189661
13
MAY W10189658
14
MAY W10278731
15
MAY W10278732
16
MAY W10278733
18
MAY W10181990
19
MAY W10189708
20
MAY 489229
21
MAY W10295082
22
MAY W10698642
23
MAY W10403781
24
MAY 1119018
25
MAY W10838981
26
MAY 1119020
27
MAY 1119021
28
MAY 488886
29
MAY W10185018
30
MAY 1119017
31
MAY 489234
32
MAY 489236
33
MAY W10189274
34
MAY W10406979
35
MAY W10698668
36
Guide, Soleniod
37
MAY W10300022
38
COVER
39
MAY W10508644
40
ARM, SHUT OFF
100
MAY W10407621
←
