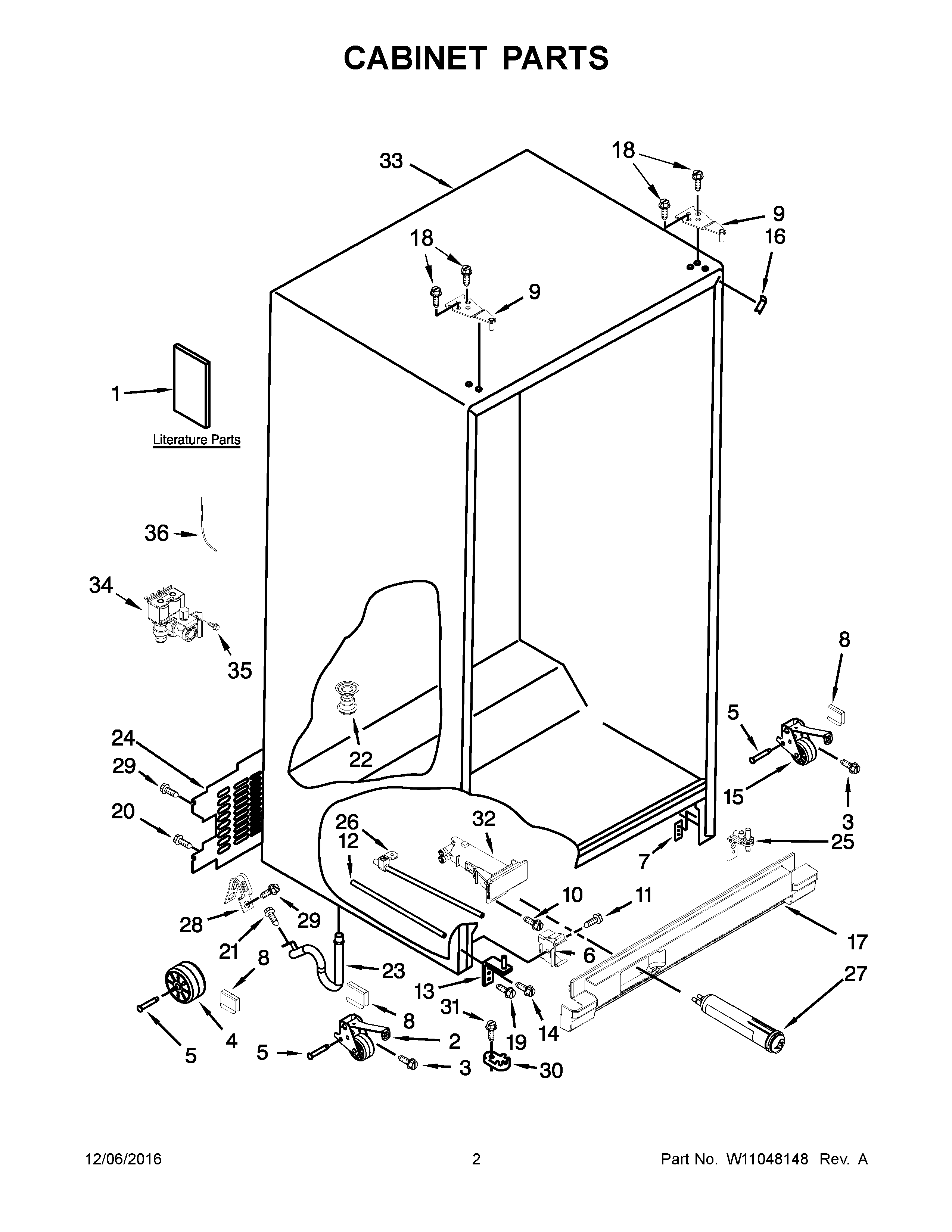

ASI2275FRW00 02 – CABINET PARTS

ASI2275FRW00 02 – CABINET PARTS

Written by

in

ASI2275FRW00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10452514
1A	MAY W10568358
1B	MAY W10624266
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	CLIP, ROLLER
9A	HINGE, TOP (BLACK)
9	HINGE, TOP (WHITE)
10	MAY 489500
11	MAY 488500
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	CORNER FILLER (WHITE)
16A	CORNER FILLER (BLACK)
17	MAY W10393044
17A	MAY W10393045
18A	SCREW (BLACK)
18	SCREW (WHITE)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188734
25	MAY W10846222
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	MAY W10846218
31	MAY W10142234
32A	MAY W10350063
32	MAY W10350062
33	LINER (NOT A SERVICEABLE PART)
34	MAY W10179146
35	MAY 488649
36	MAY W10357069
