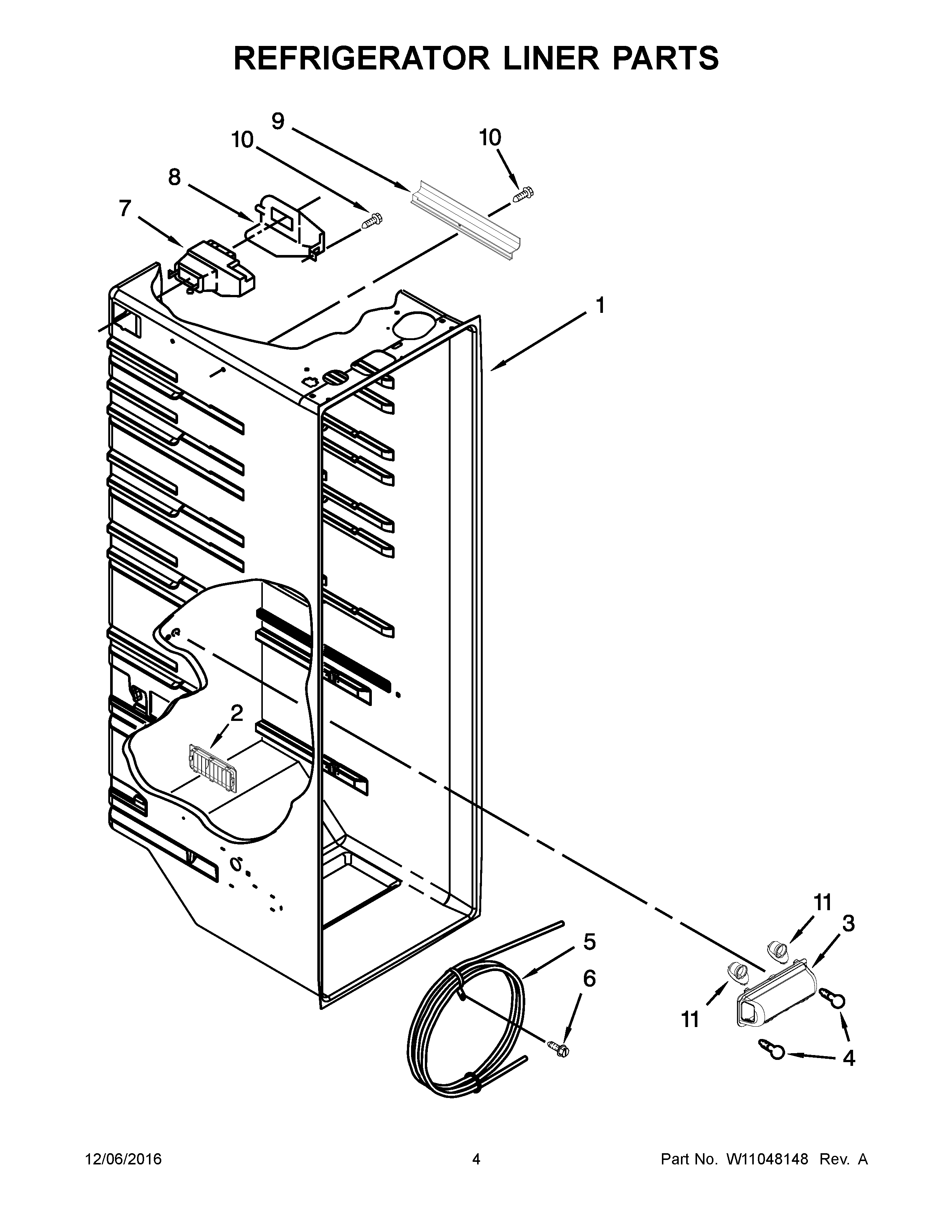

ASI2275FRW00 03 – REFRIGERATOR LINER PARTS

ASI2275FRW00 03 – REFRIGERATOR LINER PARTS

Written by

in

ASI2275FRW00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10550195
3	Lens, Light
4	BULB, LIGHT
5	RESERVOIR
6	Screw
7	MAY W10151374
8	Air Diffuser Cover
9	COVER, WIRING
10	MAY 486298
11	Socket, Light
