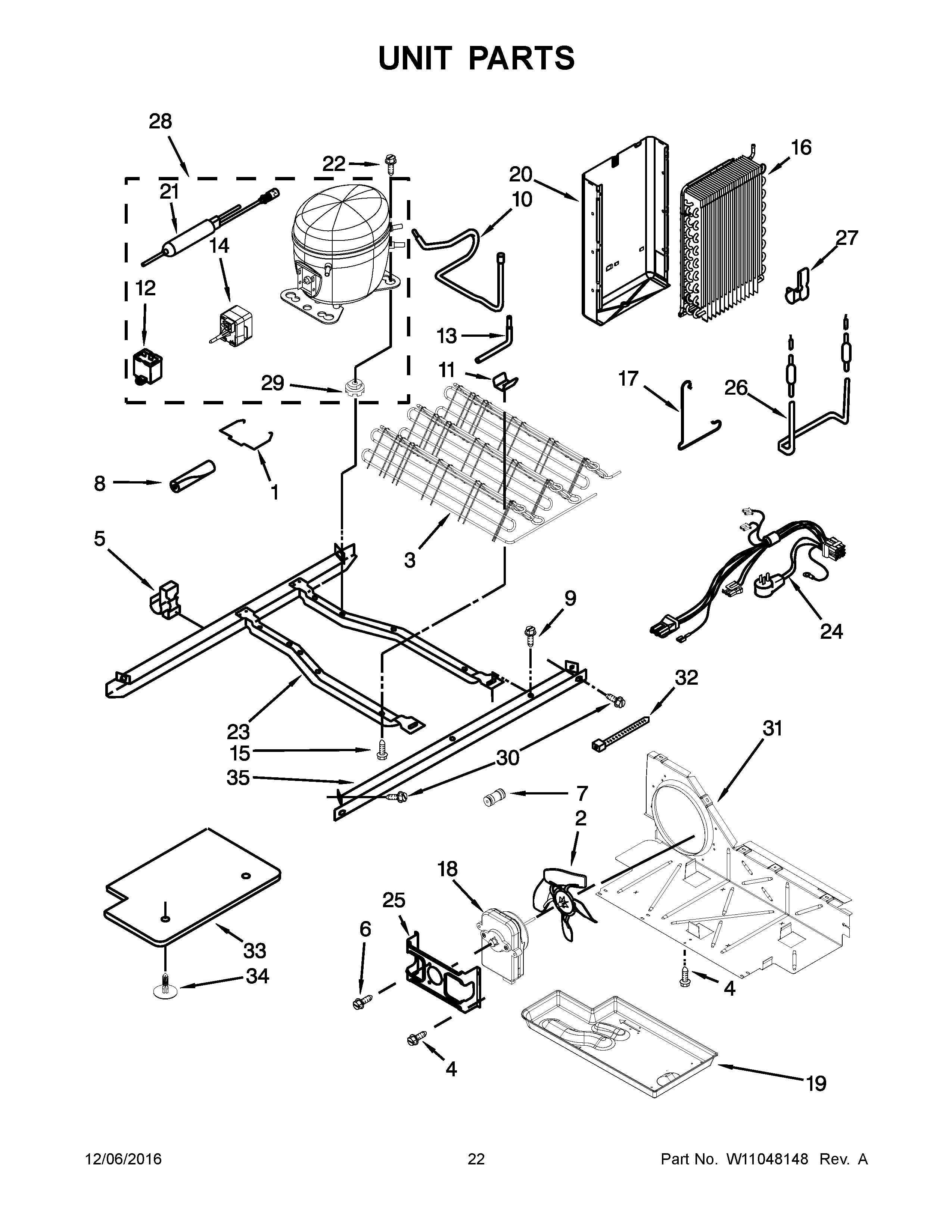

ASI2275FRW00 12 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	STRAP, BALE
2	MAY W10817071
3	MAY 2324712
4	Screw (3)
5	MAY 2326941
6	MAY 8533993
7	CONNECTOR, UNION
8	Sleeve, Pressure Switch Hose
9	MAY 489427
10	MAY W10745338
11	MAY 2311725
12	MAY W10350564
13	MAY 2325479
14	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
15	MAY 8281232
16	MAY 2188822
18	MAY W10508362
19	MAY W10614158
20	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
21	MAY W10771114
22	MAY W10476309
23	Frame, Unit Mounting
24	MAY W10670169
25	MAY 2181929
26	MAY W10495967
27	Clip
28	MAY W10253005
29	GROMMET
30	MAY 489340
31	MAY W10332806
32	MAY 2263990
33	MAY W10836751
34	MAY 489396
35	RAIL, UNIT MOUNTING
