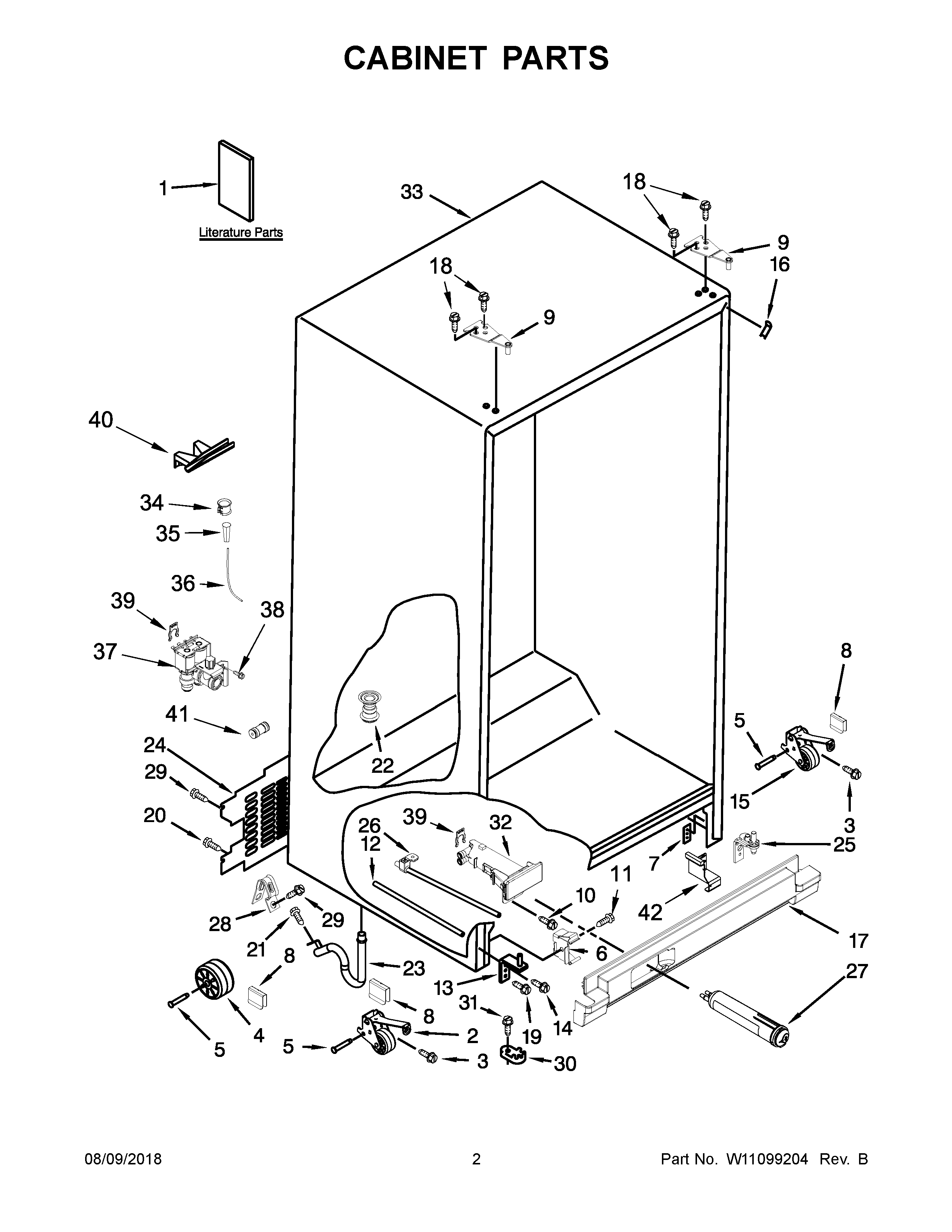

ASI2575FRB00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10452514
1B	ENERGY GUIDE
1A	MAY W10568358
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	CLIP, ROLLER
9	HINGE, TOP (WHITE)
9A	HINGE, TOP (BLACK)
10	MAY 489500
11	MAY 488500
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	FILLER, WRAPPER (WHITE)
16A	FILLER, WRAPPER (BLACK)
17A	MAY W10348651
17	MAY W10348650
18A	SCREW (BLACK)
18	SCREW (WHITE)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188735
25	MAY W10846222
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	MAY W10846218
31	MAY W10142234
32A	HOUSING, WATER FILTER (BLACK)
32	HOUSING, WATER FILTER (WHITE)
33	LINER (NOT A SERVICEABLE PART)
34	CLAMP, TUBE
35	MAY 2181939
36	MAY W10357076
37	MAY W10179146
38	MAY 488649
39A	LOCKING RING (5/16)
39	LOCKING RING (1/4)
40	MAY 2209774
41	CONNECTOR, UNION
42	ASSEMBLY, BRACKET
