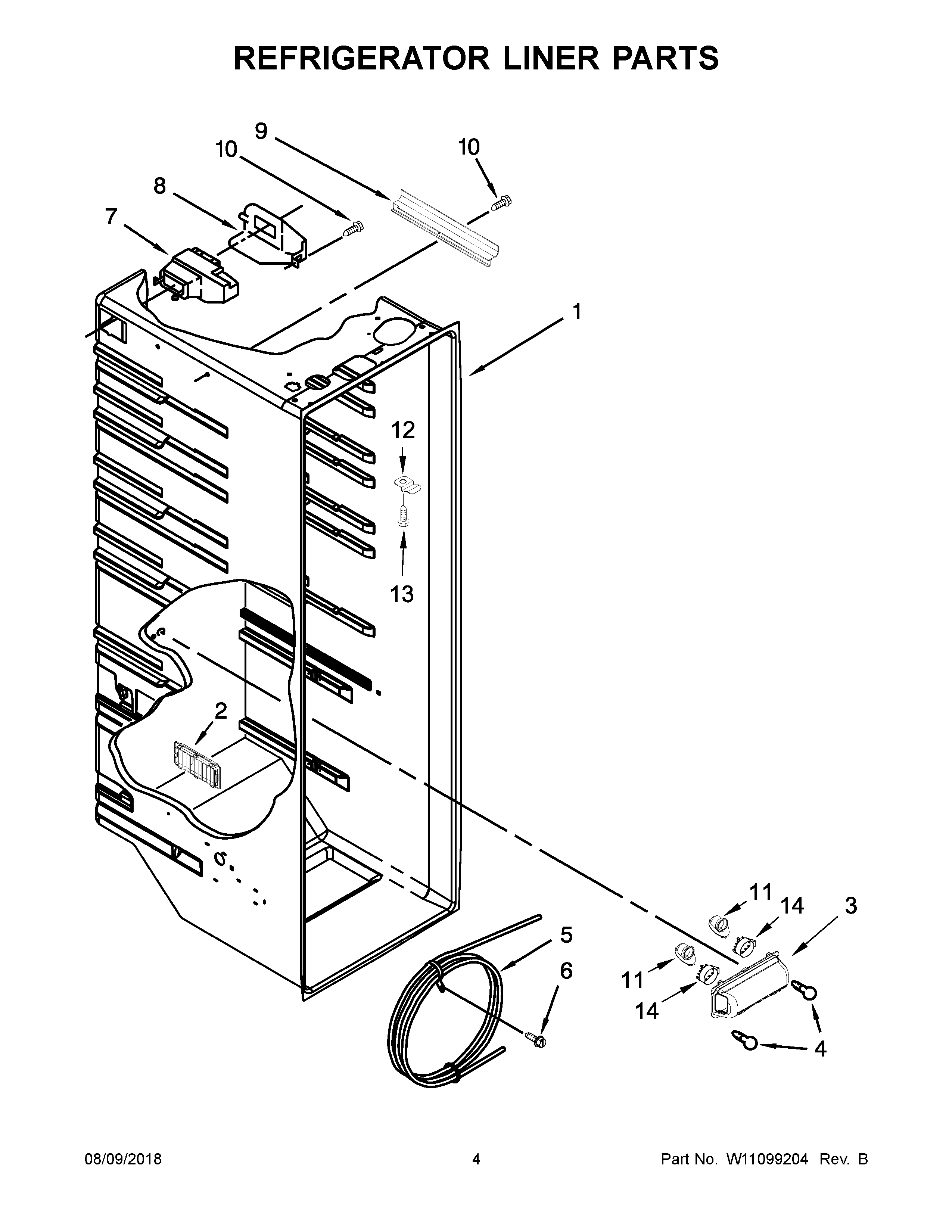

ASI2575FRB00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10550195
3LENS, LIGHT (INCLUDES GASKET)
4BULB, LIGHT
5RESERVOIR
6Screw
7MAY W10151374
8Air Diffuser Cover
9COVER, WIRING
10MAY 486298
11Socket, Light
12CLIP, CONTROL BOX
13SCREW
14SHROUD, LIGHT
