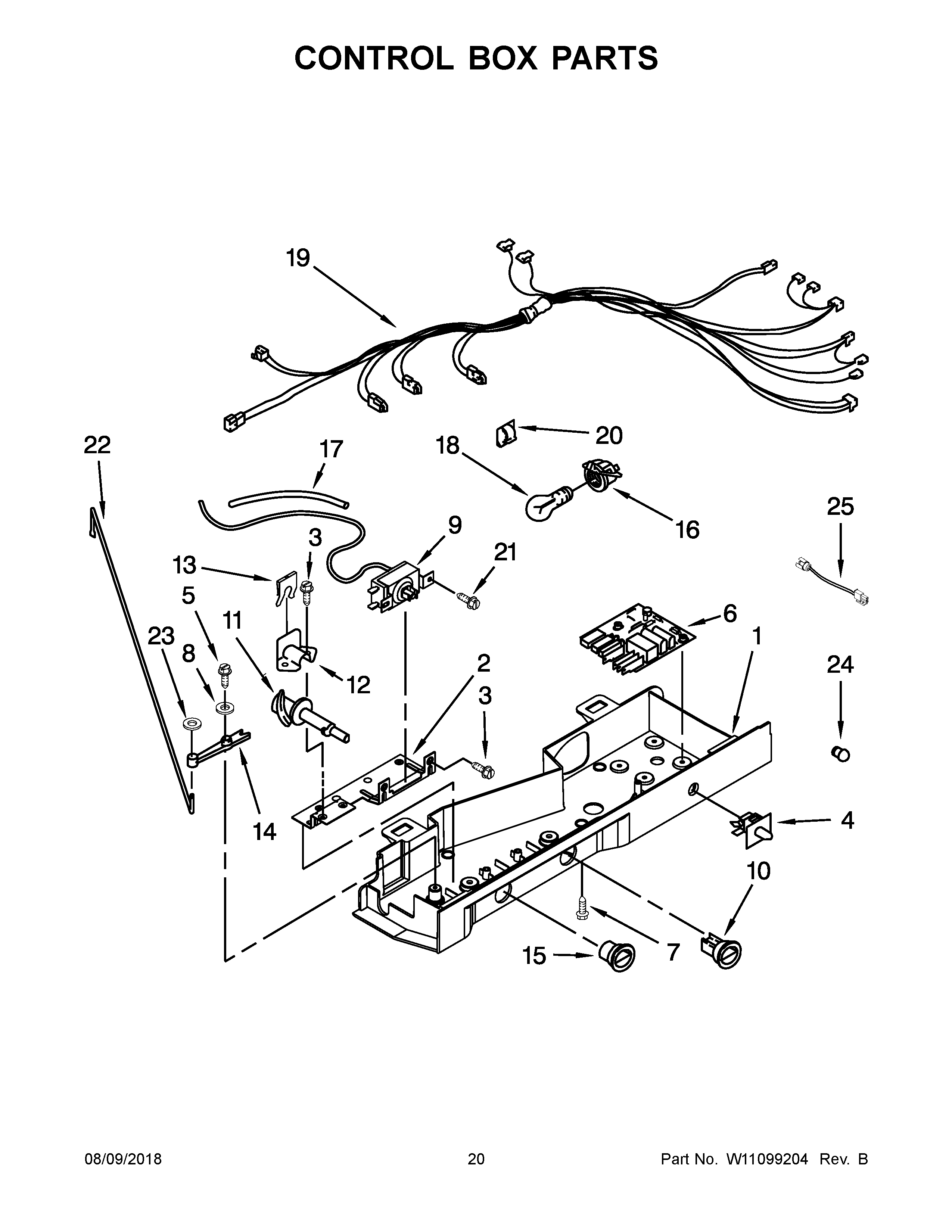

ASI2575FRB00 11 – CONTROL BOX PARTS

ASI2575FRB00 11 – CONTROL BOX PARTS

Written by

in

ASI2575FRB00 11 – CONTROL BOX PARTS

Products

Position	Product
1	MAY W10482525
2	MAY 2311611
3	Screw
4	SWITCH, LIGHT
5	MAY 627068
6	MAY W10366605
7	Screw
8	MAY W10657618
9	MAY W10583800
10	KNOB, THERMOSTAT
11	MAY 2182195
12	BODY, BEARING
13	Damper Control
14	ARM, PIVOT
15	KNOB, CONTROL
16	Socket, Light
17	TUBE-BARRIER, THERMOSTAT
18	BULB, LIGHT
19	MAY W10354806
20	MAY 1115374
21	Screw
22	MAY W10804348
23	MAY W10672286
24	LENS, LIGHT
25	LED LIGHT ASSEMBLY
