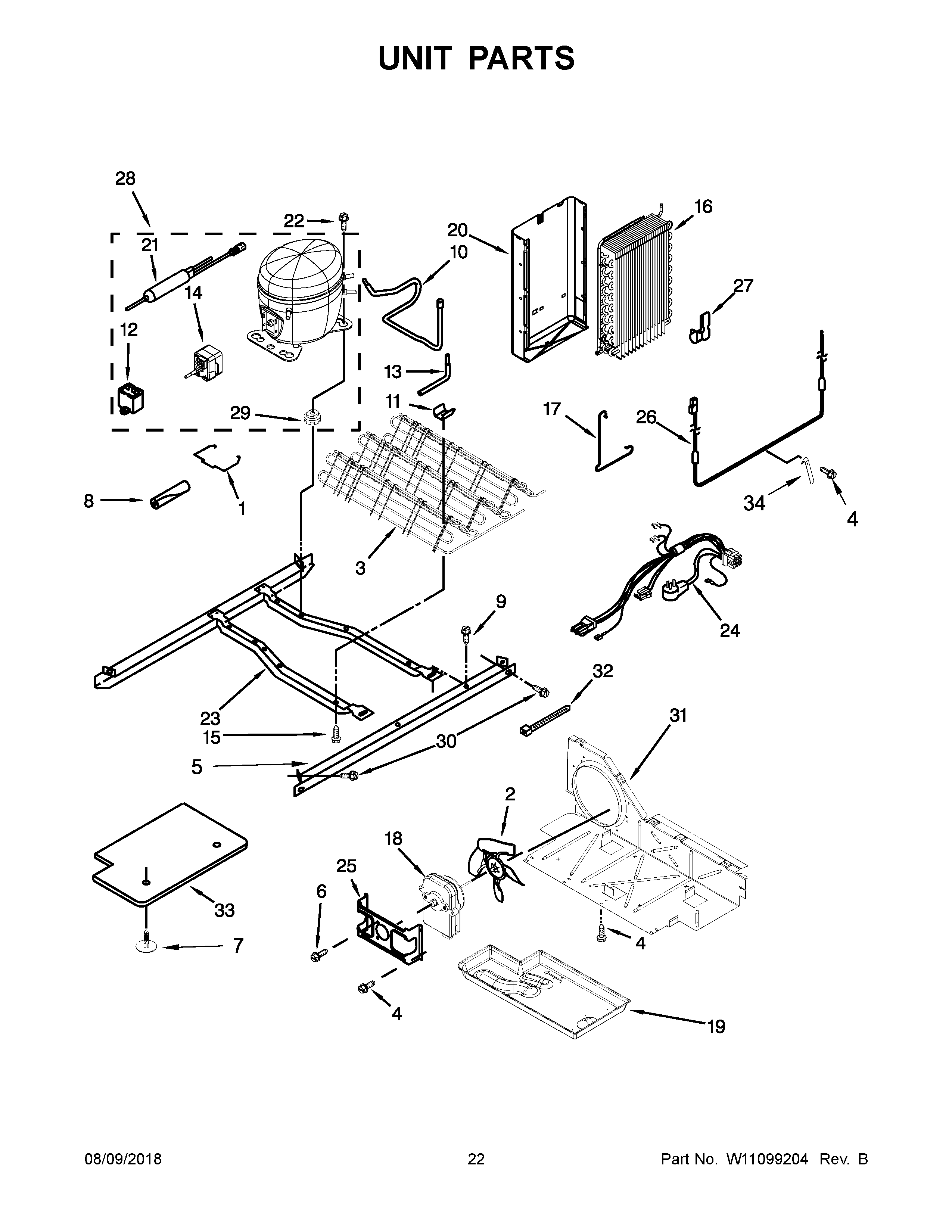

ASI2575FRB00 12 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	STRAP, BALE
2	MAY W10817071
3	MAY 2324712
4	Screw (3)
5	RAIL, UNIT MOUNTING
6	MAY 8533993
7	MAY 489396
8	Sleeve, Pressure Switch Hose
9	MAY 489427
10	TUBE, SUCTION
11	MAY 2311725
12	MAY W10350564
13	MAY 2325479
14	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
15	MAY 8281232
16	Evaporator
18	MOTOR, CONDENSER
19	MAY W10614158
20	Heat Shield
21	MAY W10771114
22	MAY W10476309
23	FRAME, UNIT MOUNTING
24	MAY W10670169
25	MAY 2181929
26	MAY 2188175
27	Clip
28	MAY W10800725
29	GROMMET
30	MAY 489340
31	MAY W10332806
32	MAY 2263990
33	ASSEMBLY, UNIT COVER (BOTTOM)
34	PROBE, HEAT
