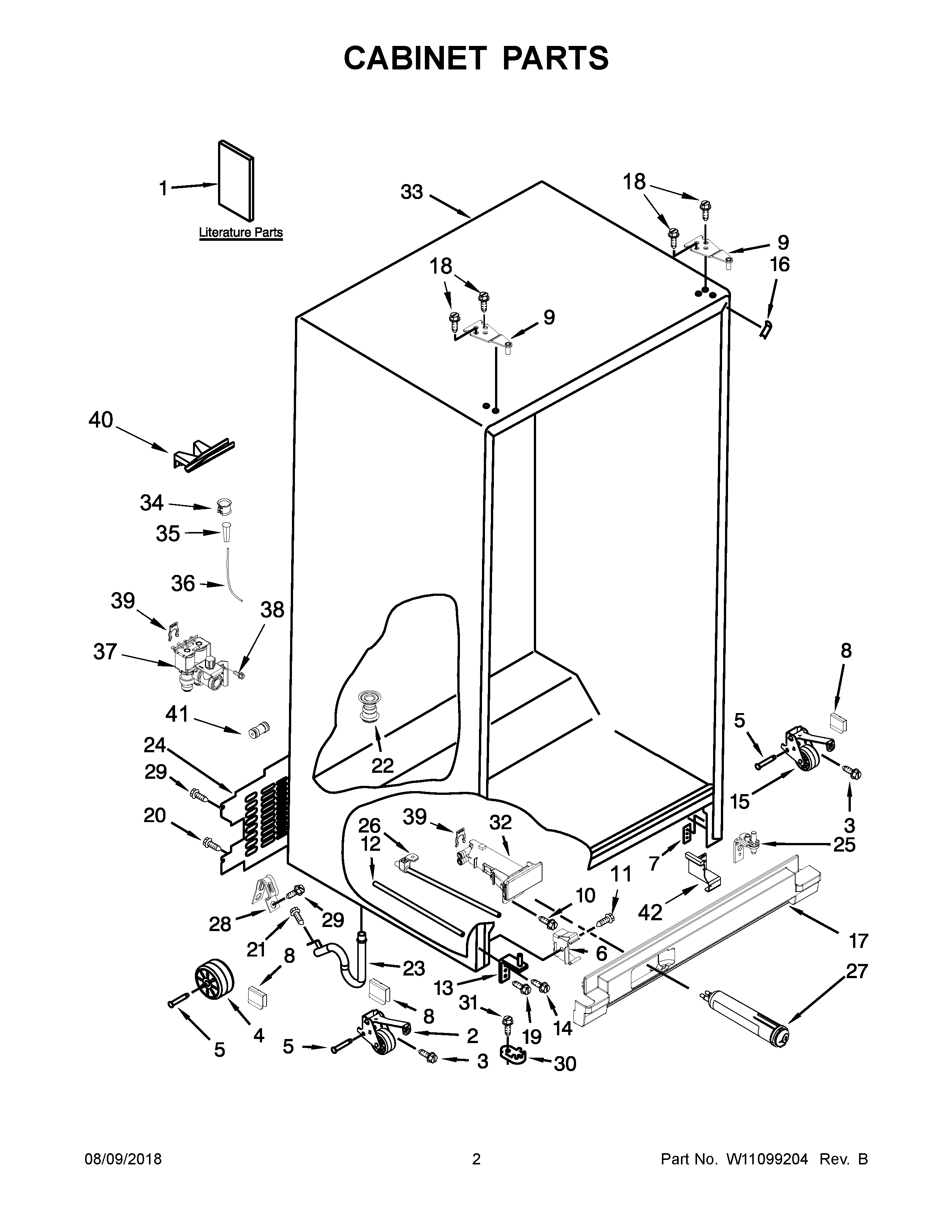

ASI2575FRW00 02 – CABINET PARTSadmin2025-04-26T08:55:55+00:00ASI2575FRW00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10452514 |
| 1B | ENERGY GUIDE |
| 1A | MAY W10568358 |
| 2 | ROLLER, FRONT (LEFT) |
| 3 | MAY 2152958 |
| 4 | Roller |
| 5 | AXLE, ROLLER |
| 6 | MAY 2155013 |
| 7 | MAY 2304249 |
| 8 | CLIP, ROLLER |
| 9 | HINGE, TOP (WHITE) |
| 9A | HINGE, TOP (BLACK) |
| 10 | MAY 489500 |
| 11 | MAY 488500 |
| 12 | MAY W10350006 |
| 13 | MAY W10414753 |
| 14 | Screw (4) |
| 15 | ROLLER, FRONT (RIGHT) |
| 16 | FILLER, WRAPPER (WHITE) |
| 16A | FILLER, WRAPPER (BLACK) |
| 17A | MAY W10348651 |
| 17 | MAY W10348650 |
| 18A | SCREW (BLACK) |
| 18 | SCREW (WHITE) |
| 19 | MAY 3400103 |
| 20 | SCREW |
| 21 | Screw (3) |
| 22 | MAY 2304888 |
| 23 | MAY W10153550 |
| 24 | MAY 2188735 |
| 25 | MAY W10846222 |
| 26 | MAY W10350007 |
| 27 | MAY W10569758 |
| 28 | MAY 549193 |
| 29 | MAY 489084 |
| 30 | MAY W10846218 |
| 31 | MAY W10142234 |
| 32A | HOUSING, WATER FILTER (BLACK) |
| 32 | HOUSING, WATER FILTER (WHITE) |
| 33 | LINER (NOT A SERVICEABLE PART) |
| 34 | CLAMP, TUBE |
| 35 | MAY 2181939 |
| 36 | MAY W10357076 |
| 37 | MAY W10179146 |
| 38 | MAY 488649 |
| 39A | LOCKING RING (5/16) |
| 39 | LOCKING RING (1/4) |
| 40 | MAY 2209774 |
| 41 | CONNECTOR, UNION |
| 42 | ASSEMBLY, BRACKET |
