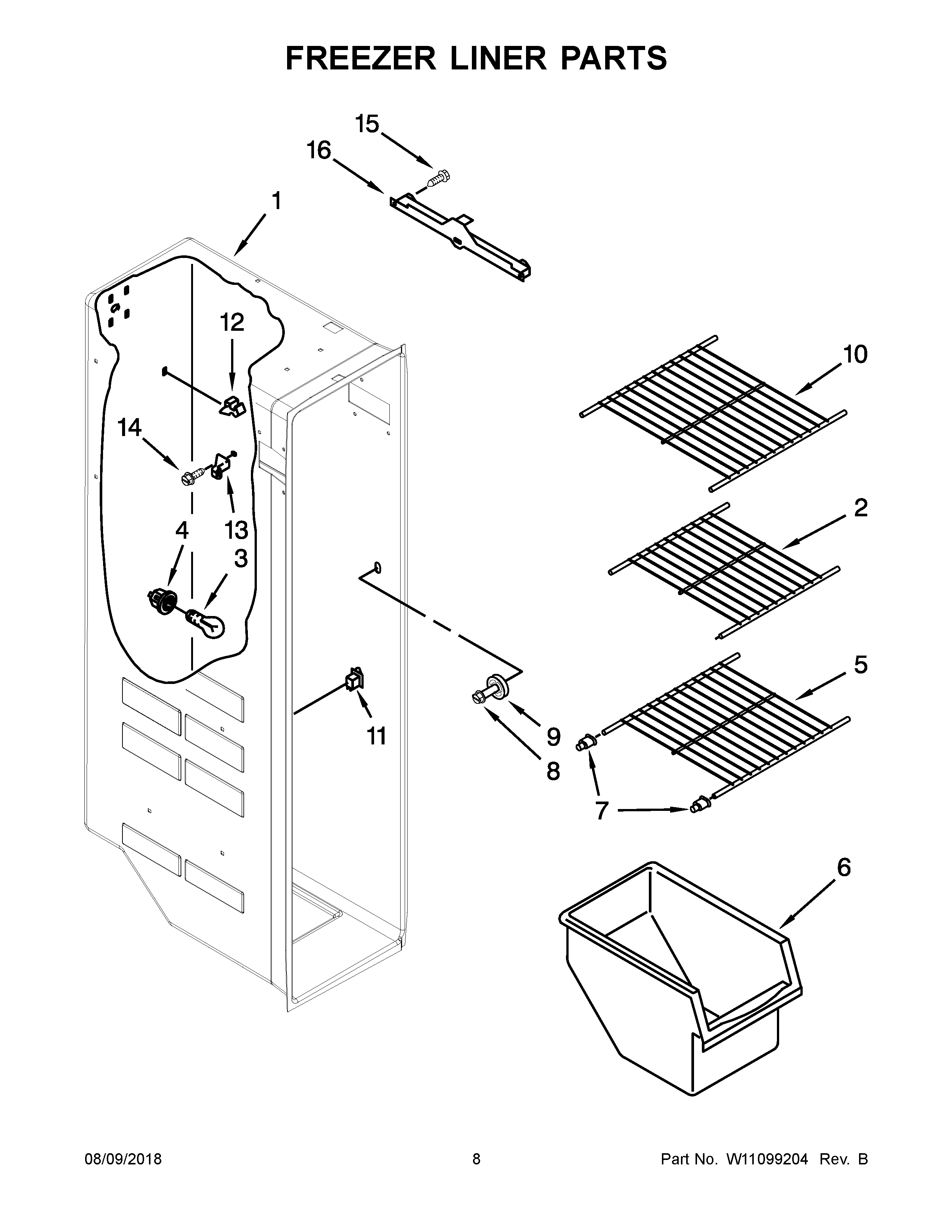

ASI2575FRW00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10318961
3BULB, LIGHT
4Socket, Light
5MAY W10318947
6Freezer Bin
7Cup, Shelf Mount
8MAY W10191952
9ASSEMBLY, SHELF STUD
10MAY W10318948
11Switch, Rocker Arm
12MAY 2315163
13Support, Stud (4)
14MAY 3400893
15MAY 489100
16SLIDE, ICE CONTAINER (LEFT)
16ASLIDE, ICE CONTAINER (RIGHT)
