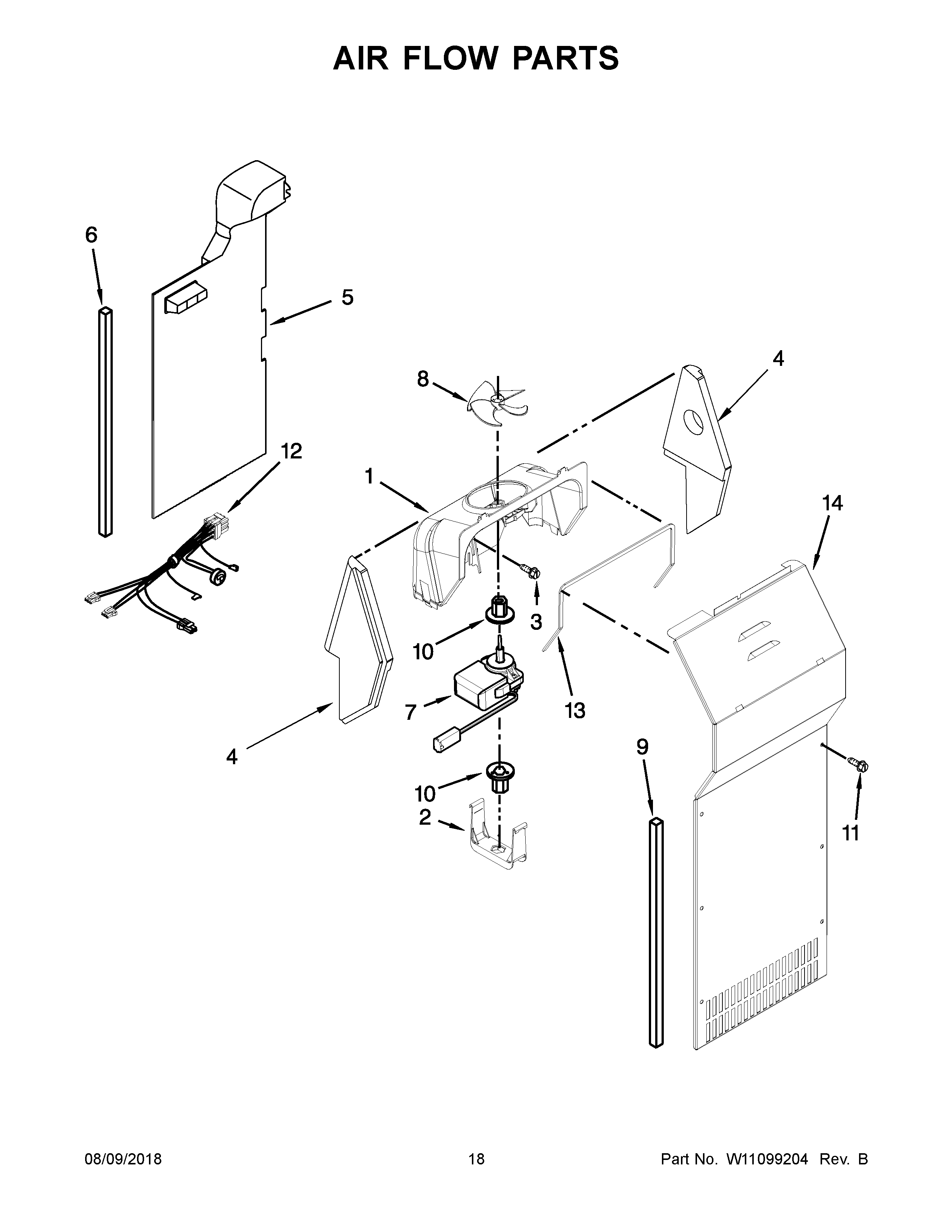

ASI2575FRW00 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY W10188846
3	MAY 489478
4A	SUPPORT, FAN SCROLL (RIGHT HAND)
4	SUPPORT, FAN SCROLL (LEFT HAND)
5	AIR DUCT FREEZER
6	GASKET
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	SCREW
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	Gasket, Fan Scroll
14	MAY W10463013
