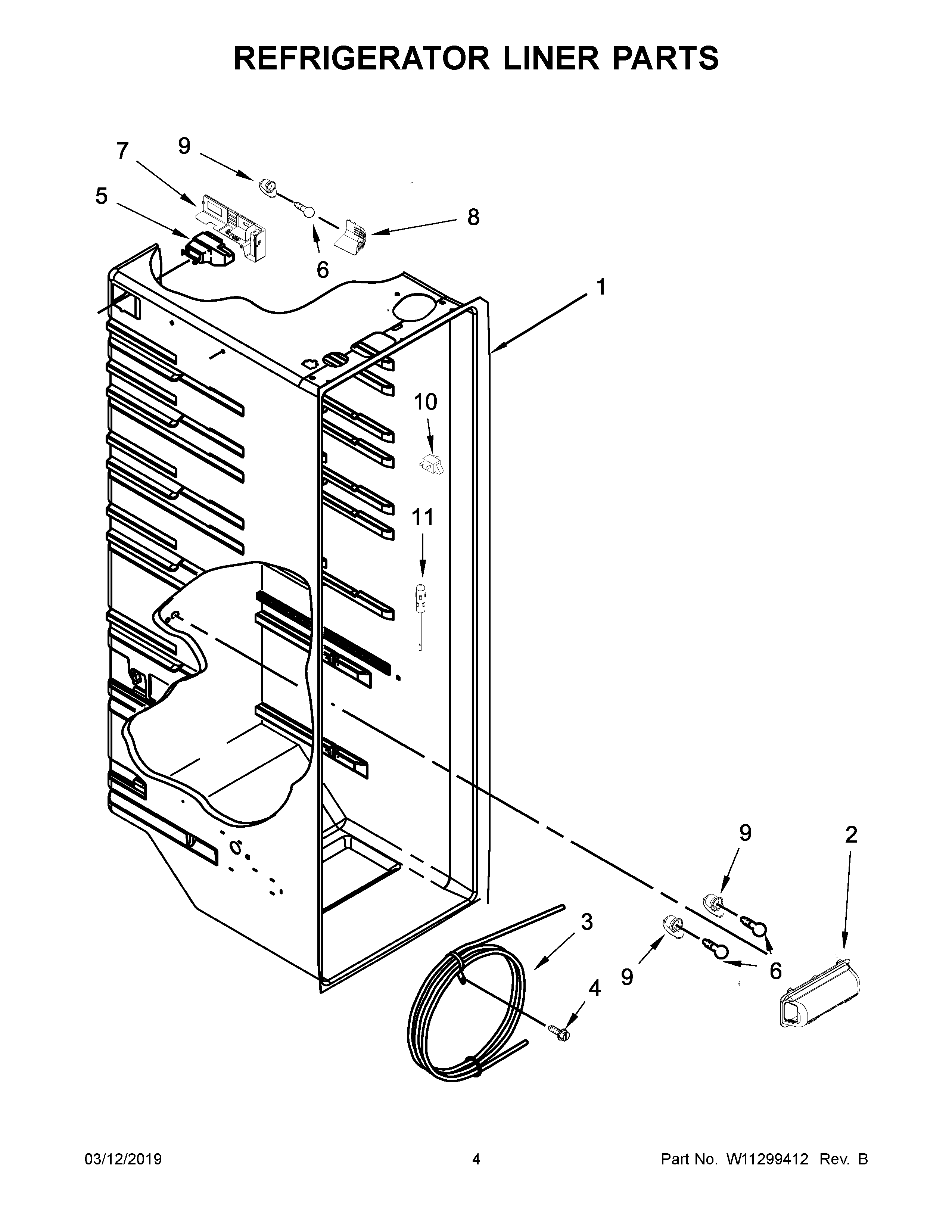

ASI2575GRB01 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	LENS, LIGHT (INCLUDES GASKET)
3	TUBING, WATER RESERVOIR
4	SCREW 8-15 X 3/4
5	DIFFUSER, AIR
6	BULB, LIGHT
7	ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CONTROL)
8	COVER, LIGHT
9	MAY W10134764
10	MAY 1118894
11	THERMISTOR
