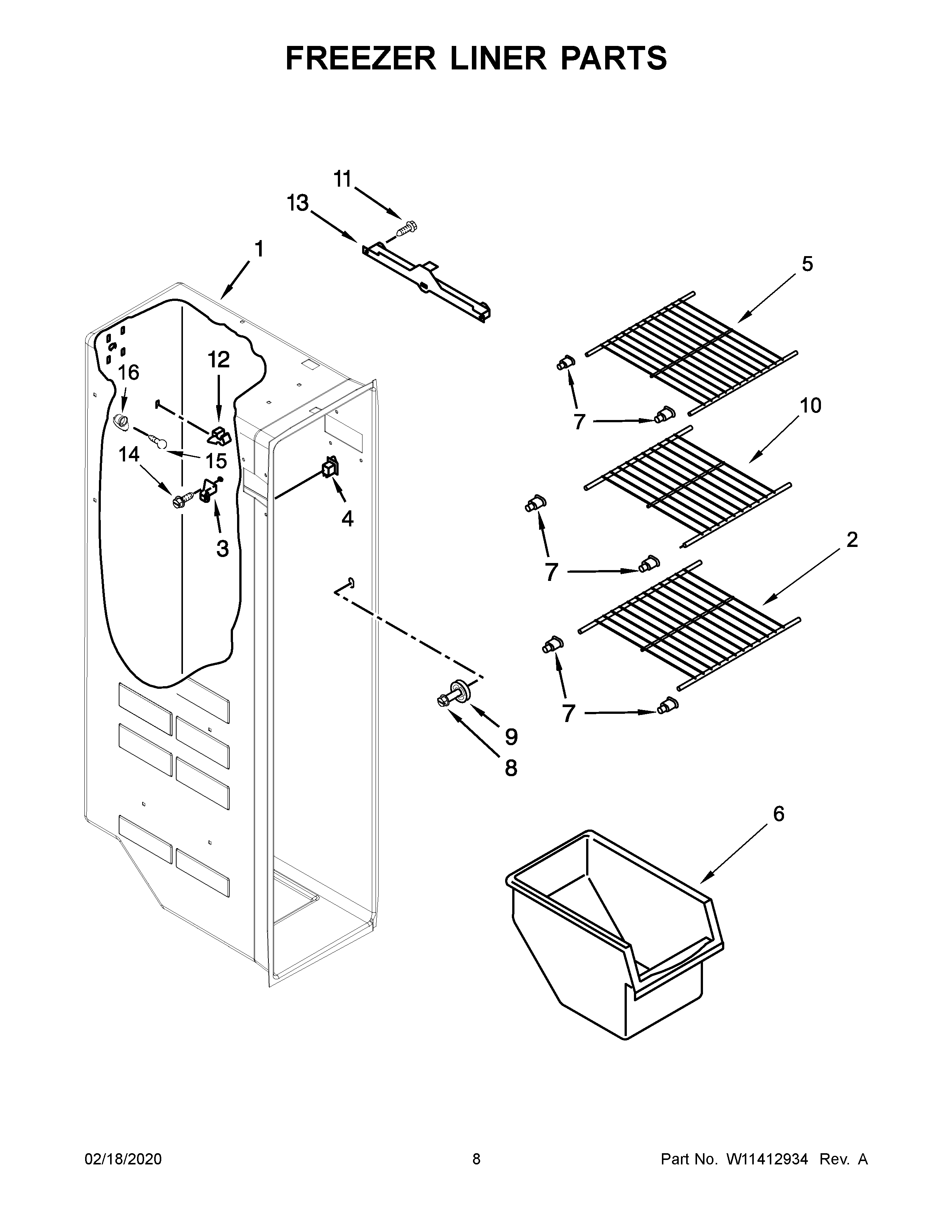

ASI2575GRB02 05 – FREEZER LINER PARTS

ASI2575GRB02 05 – FREEZER LINER PARTS

Written by

in

ASI2575GRB02 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10318948
3Support, Stud (4)
4Switch, Rocker Arm
5MAY W10318947
6Freezer Bin
7Cup, Shelf Mount
8MAY W10191954
9Stud Assembly
10MAY W10318961
11MAY 489100
12MAY 2315163
13SLIDE, ICE CONTAINER (LEFT)
13ASLIDE, ICE CONTAINER (RIGHT)
14MAY 3400893
15BULB, LIGHT
16MAY W10134764
