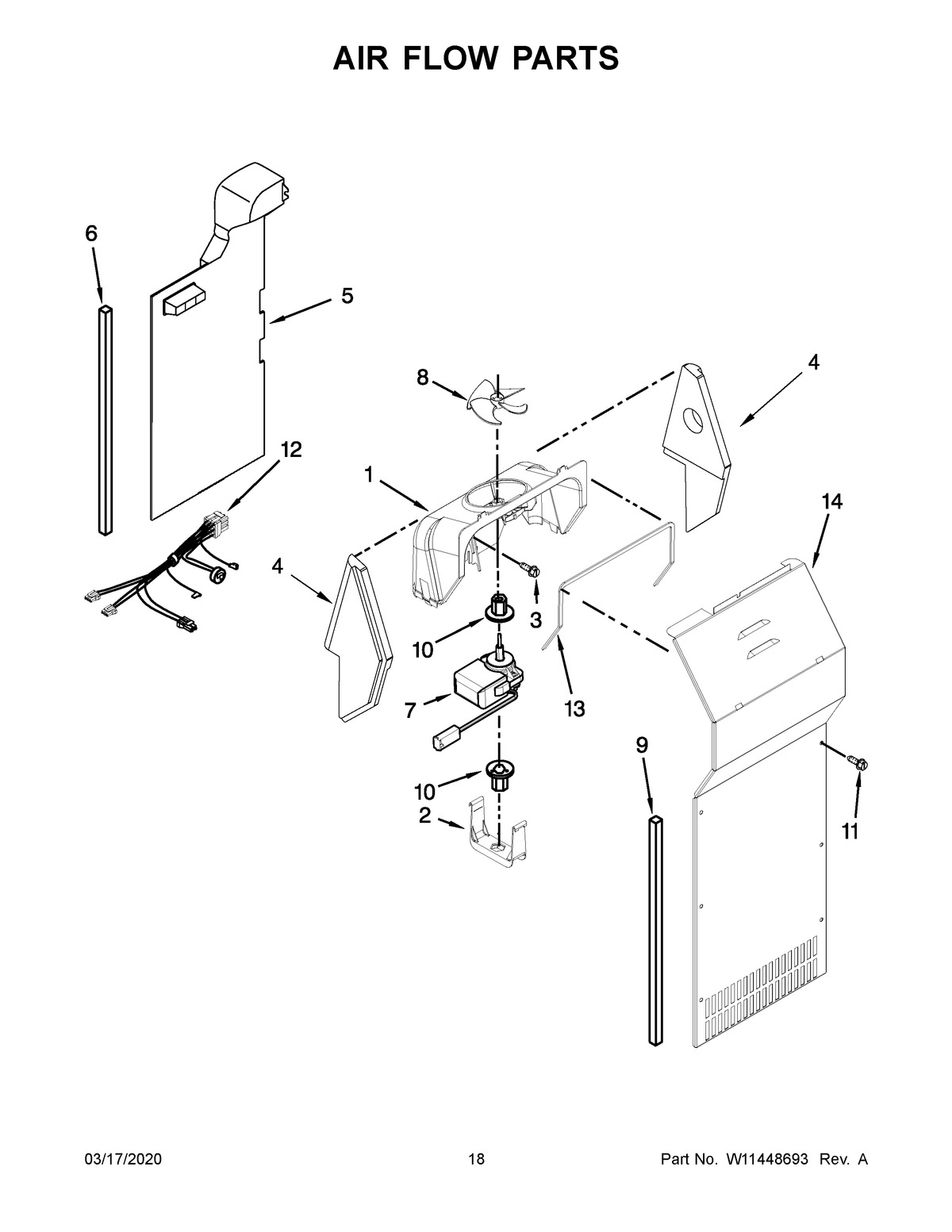

ASI2575GRB04 10 – AIR FLOW PARTS

Products

Position	Product
1	SCROLL, FAN
2	MAY W10188846
3	MAY 489478
4	SUPPORT, FAN SCROLL (LEFT HAND)
4A	SUPPORT, FAN SCROLL (RIGHT HAND)
5	DUCT, FREEZER AIR
6	GASKET
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	SCREW
12	HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUSE)
13	Gasket, Fan Scroll
14	MAY W10463013
