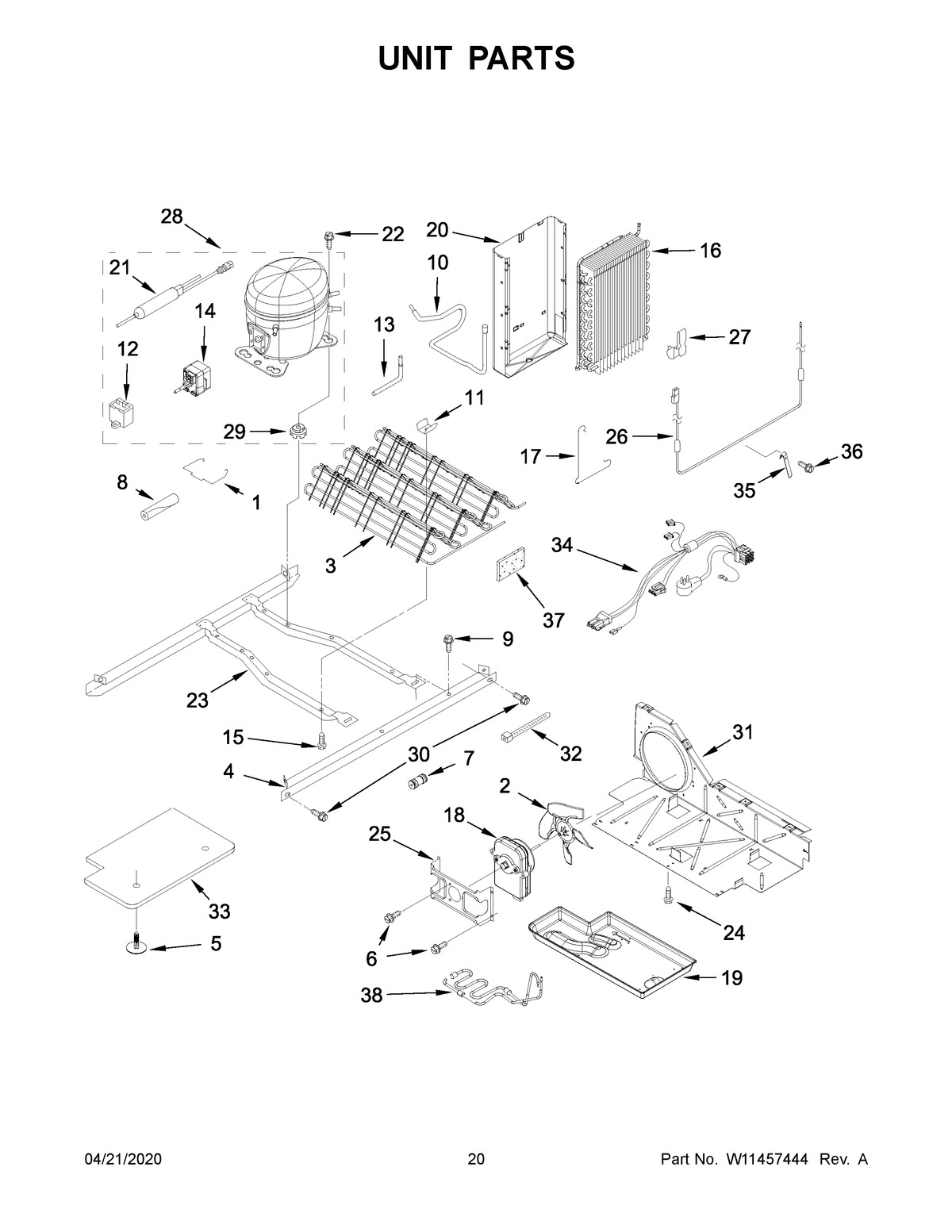

ASI2575GRB05 11 – UNIT PARTSadmin2025-04-26T08:56:03+00:00ASI2575GRB05 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10174384 |
| 2 | MAY 2225834 |
| 3 | ASSEMBLY, CONDENSER |
| 4 | RAIL, UNIT MOUNTING |
| 5 | MAY 489396 |
| 6 | MAY 8533993 |
| 7 | CONNECTOR, UNION |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | MAY 489427 |
| 10 | TUBE, SUCTION |
| 11 | MAY 2311725 |
| 12 | MAY W10350564 |
| 13 | TUBE, PROCESS |
| 14 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 15 | MAY 8281232 |
| 16 | Evaporator |
| 18 | MOTOR, CONDENSER FAN |
| 19 | TRAY, EVAPORATOR |
| 20 | Heat Shield |
| 21 | MAY W10771114 |
| 22 | MAY 489473 |
| 23 | FRAME, UNIT MOUNTING |
| 24 | SCREW |
| 25 | MAY 2181929 |
| 26 | MAY 2188175 |
| 27 | Clip |
| 28 | COMPRESSOR |
| 29 | GROMMET |
| 30 | MAY 489340 |
| 31 | BAFFLE, AIR |
| 32 | MAY 2263990 |
| 33 | ASSEMBLY, UNIT COVER (BOTTOM) |
| 34 | ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD) |
| 35 | PROBE, HEAT |
| 36 | MAY 489478 |
| 37 | MAY PROBE, HEAT |
| 38 | ASSEMBLY, PRECOOLER FORMED |
