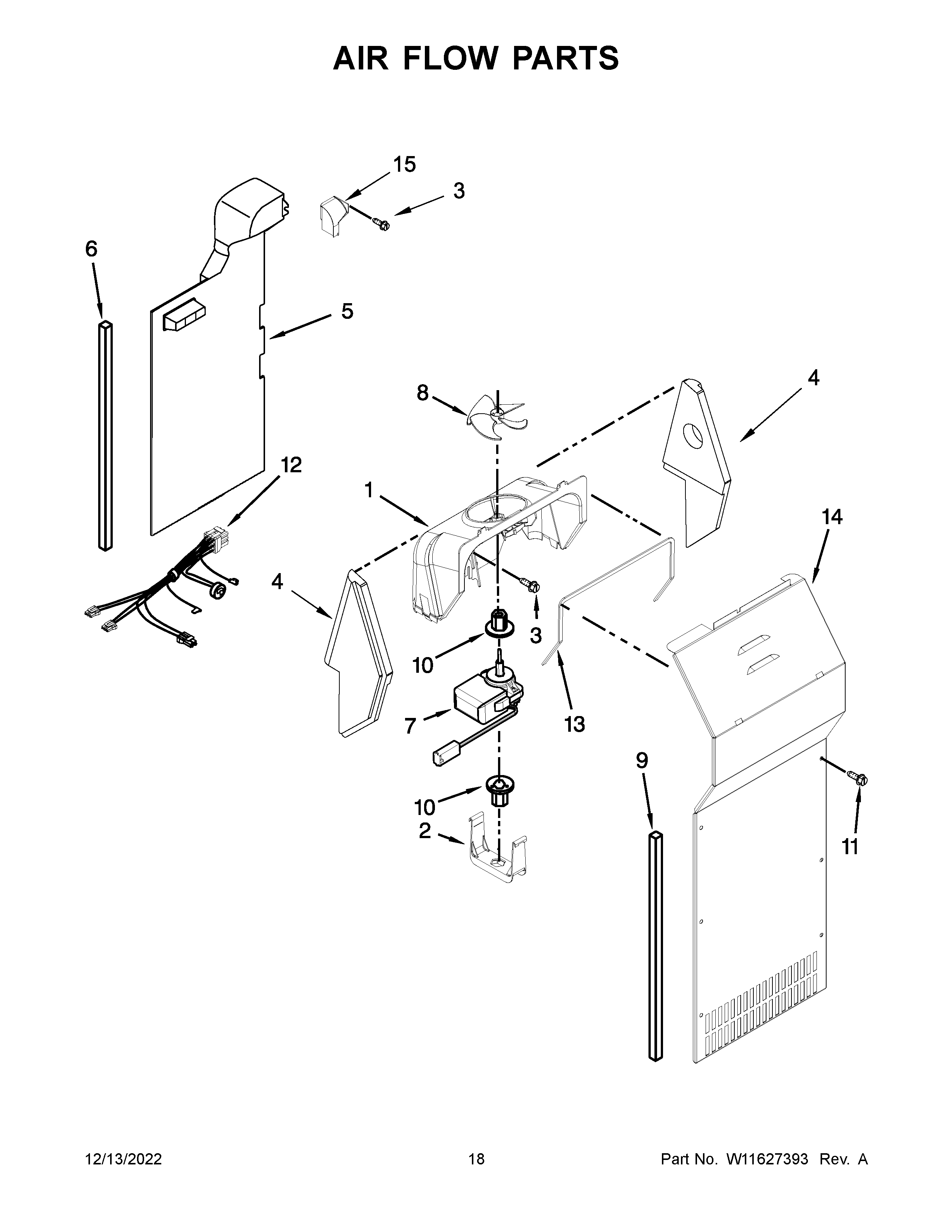

ASI2575GRB09 10 – AIR FLOW PARTS

ASI2575GRB09 10 – AIR FLOW PARTS

Written by

in

ASI2575GRB09 10 – AIR FLOW PARTS

Products

PositionProduct
1W11263195 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
44388358 Whirlpool Refrigerator Support Bracket
5Air Duct Freezer
64388500 Whirlpool Refrigerator Gasket
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12W11546681 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10463013 Whirlpool Refrigerator Evaporator Cover
15W10803597 Whirlpool Refrigerator Air Scoop
