ASI2575GRS02 05 – FREEZER LINER PARTS – Aparts

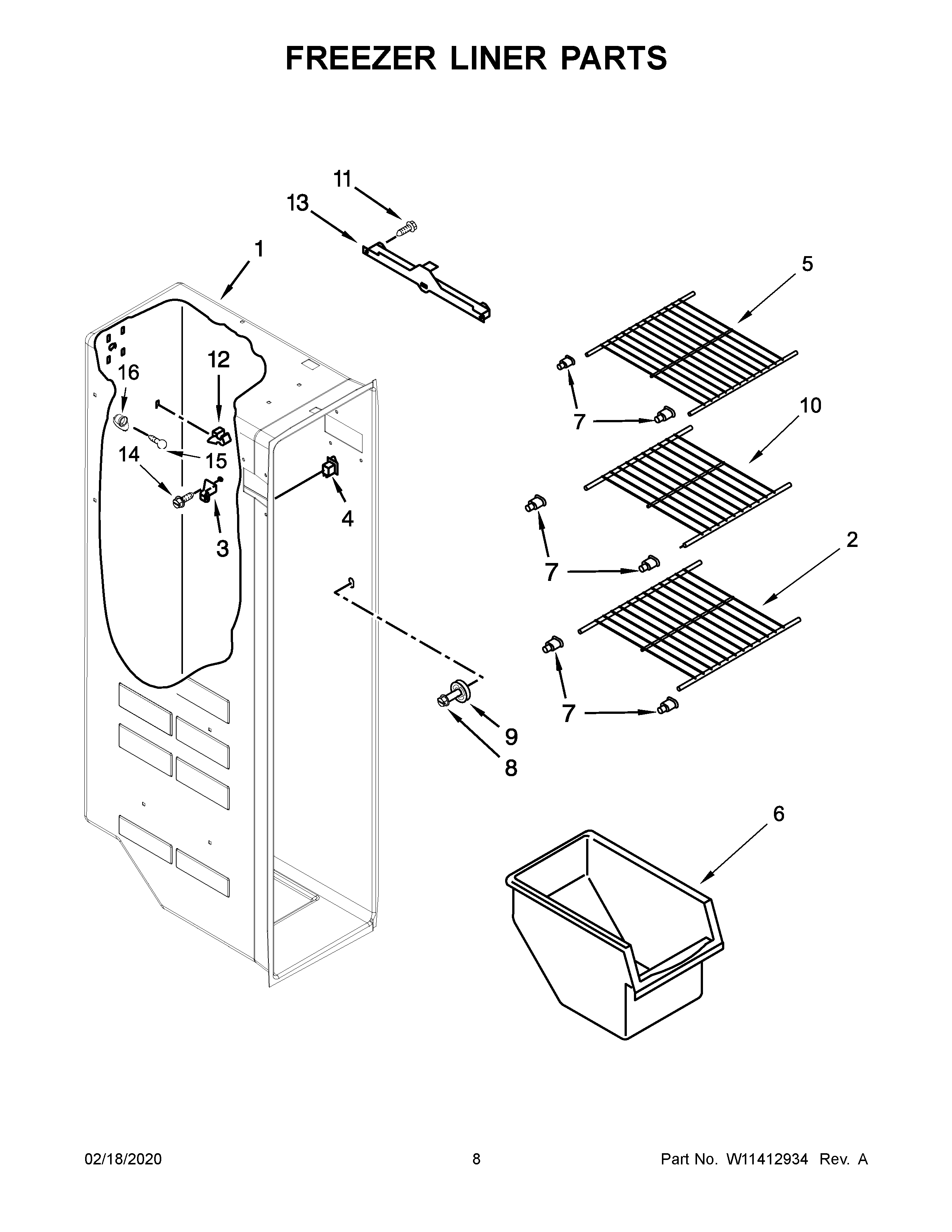

ASI2575GRS02 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10318948
3	Support, Stud (4)
4	Switch, Rocker Arm
5	MAY W10318947
6	Freezer Bin
7	Cup, Shelf Mount
8	MAY W10191954
9	Stud Assembly
10	MAY W10318961
11	MAY 489100
12	MAY 2315163
13	SLIDE, ICE CONTAINER (LEFT)
13A	SLIDE, ICE CONTAINER (RIGHT)
14	MAY 3400893
15	BULB, LIGHT
16	MAY W10134764
