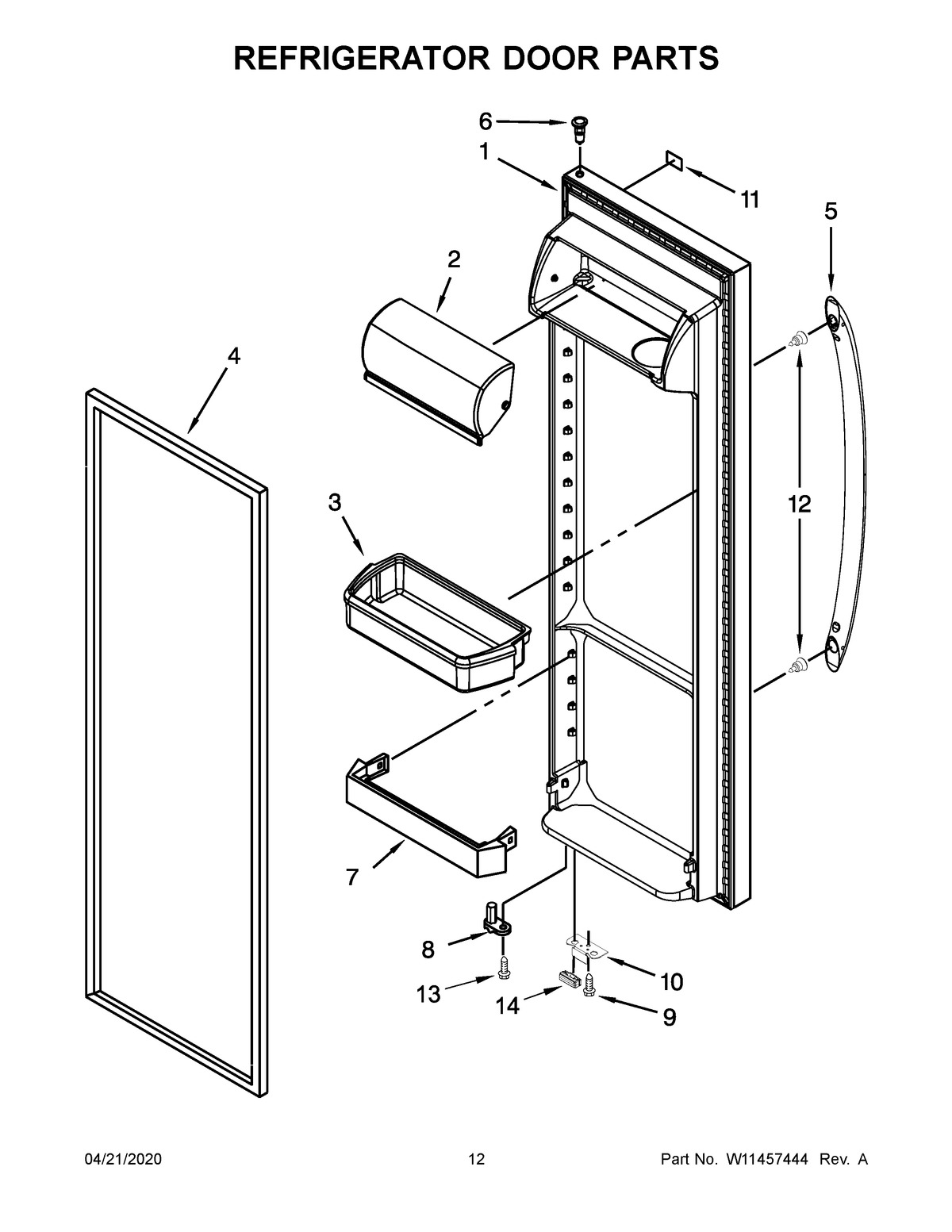

ASI2575GRS05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
1ADOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
1BDOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2Door, Compartment
3BIN, DOOR
4GASKET, DOOR (BEIGE)
4AGASKET, DOOR (BLACK)
5BHANDLE (GREY)
5AHANDLE (BLACK)
5HANDLE (WHITE)
6THIMBLE
7Trivet
8THIMBLE, CAM
9MAY 489420
10BRACKET, DOOR STOP (BLACK)
11BMAY W11046241
11ANAMEPLATE (BLACK)
11NAMEPLATE (WHITE)
12MAY W10288153
13SCREW (WHITE)
13ASCREW (BLACK)
14BUMPER, DOOR (WHITE)
14ABUMPER, DOOR (BLACK)
