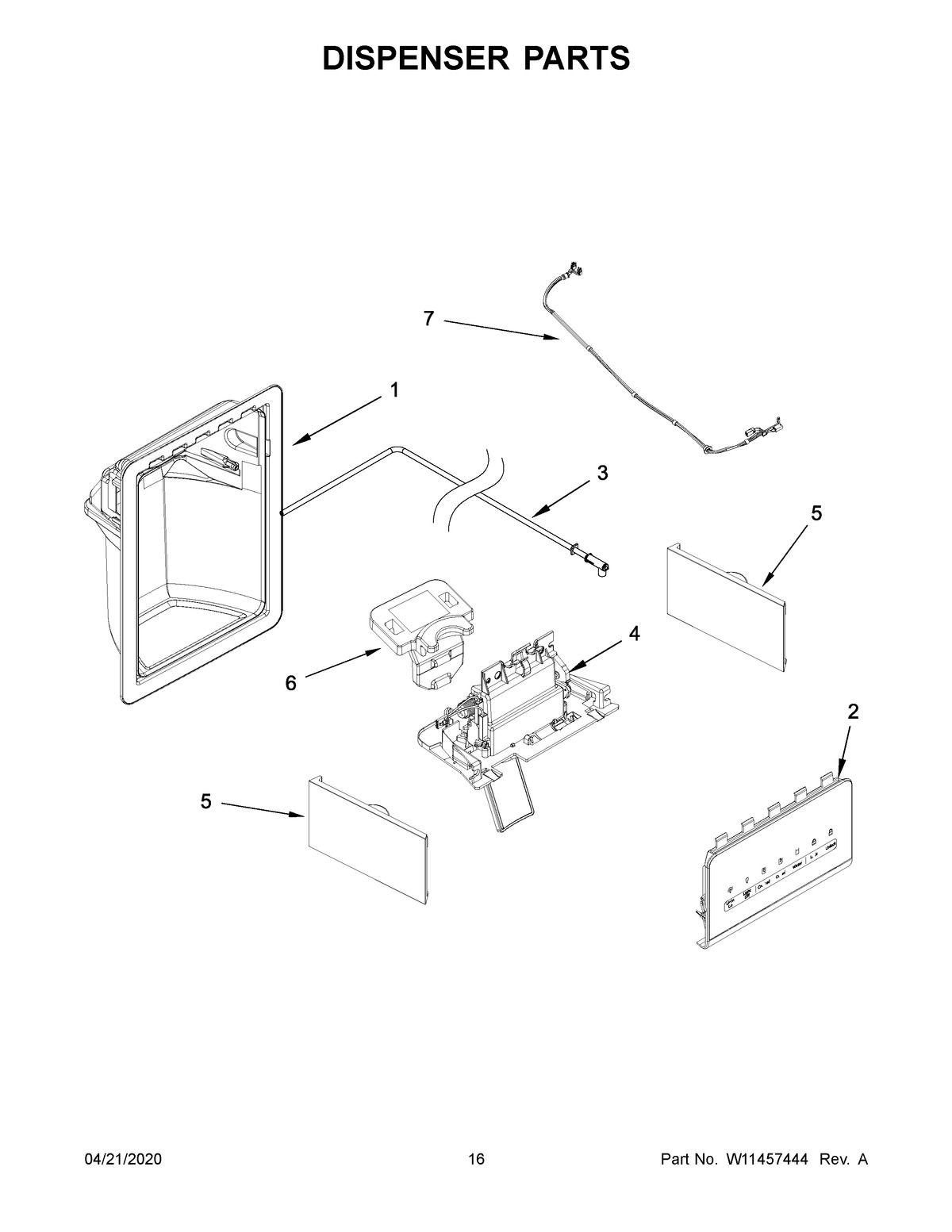

ASI2575GRS05 09 – DISPENSER PARTSadmin2025-04-26T08:56:08+00:00ASI2575GRS05 09 – DISPENSER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK) |
| 3 | ASSEMBLY, WATER FITTING |
| 4 | ASSEMBLY, SEPARATOR (WHITE) |
| 4A | ASSEMBLY, SEPARATOR (BLACK) |
| 5 | FRONT COVER, DISPENSER (WHITE (LEFT HAND)) |
| 5B | FRONT COVER, DISPENSER (BLACK (RIGHT HAND)) |
| 5C | FRONT COVER, DISPENSER (BLACK (LEFT HAND)) |
| 5A | FRONT COVER, DISPENSER (WHITE (RIGHT HAND)) |
| 6 | RETAINER, SEPARATOR HOSE |
| 7 | HARNESS, WIRE |
