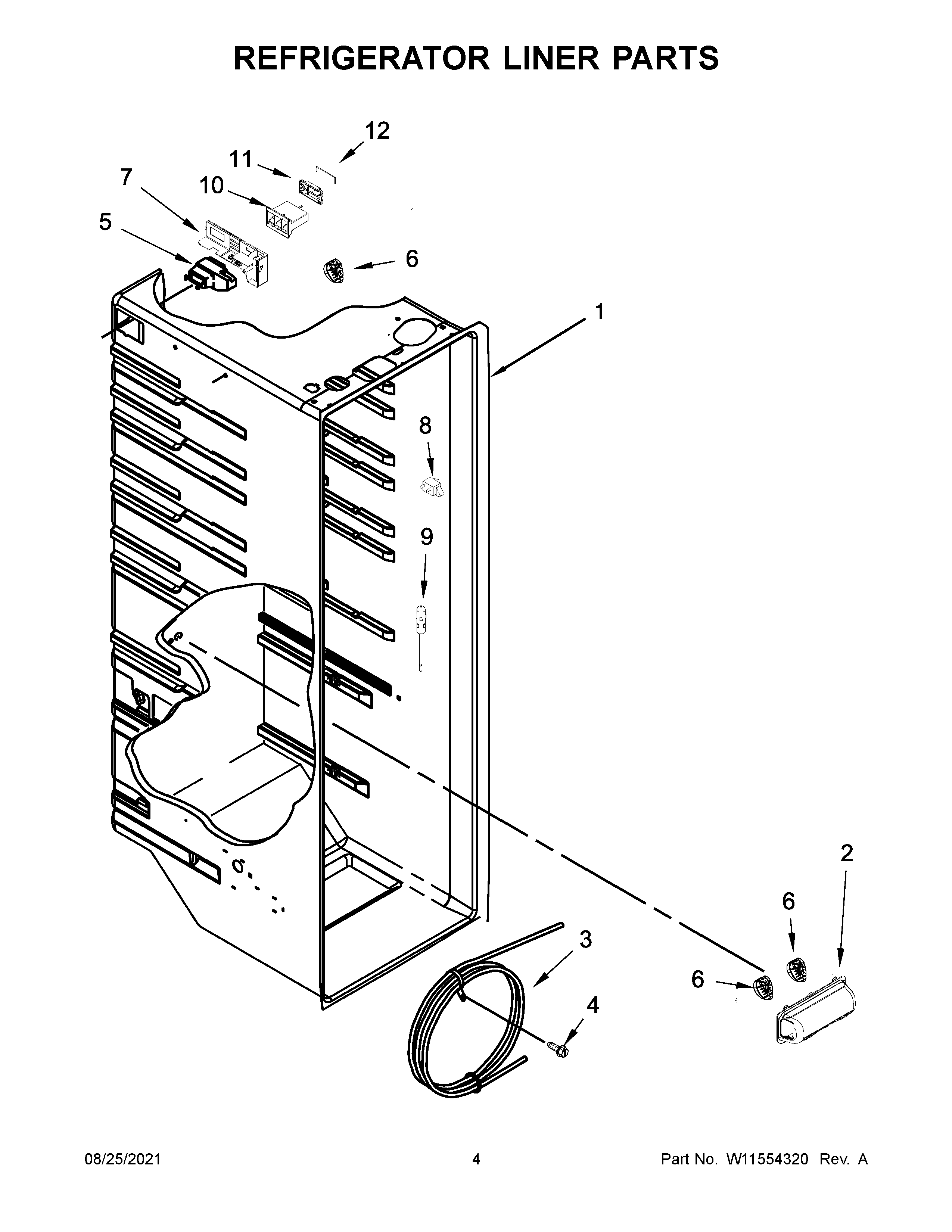

ASI2575GRS08 03 – REFRIGERATOR LINER PARTS

ASI2575GRS08 03 – REFRIGERATOR LINER PARTS

Written by

in

ASI2575GRS08 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11239891 Whirlpool Refrigerator Light Lens
3W11566768 Whirlpool Refrigerator Reservoir
4W10141518 Whirlpool Refrigerator Screw
5W11380595 Whirlpool Refrigerator Diffuser
6MODULE
7CONTRL-BOX
8W11123941 Whirlpool Refrigerator Switch
9WPW10384183 Whirlpool Thermistor
10W10901825 Whirlpool Housing
11W10901827 Whirlpool Knob
12W10901826 Whirlpool Rod Assembly
