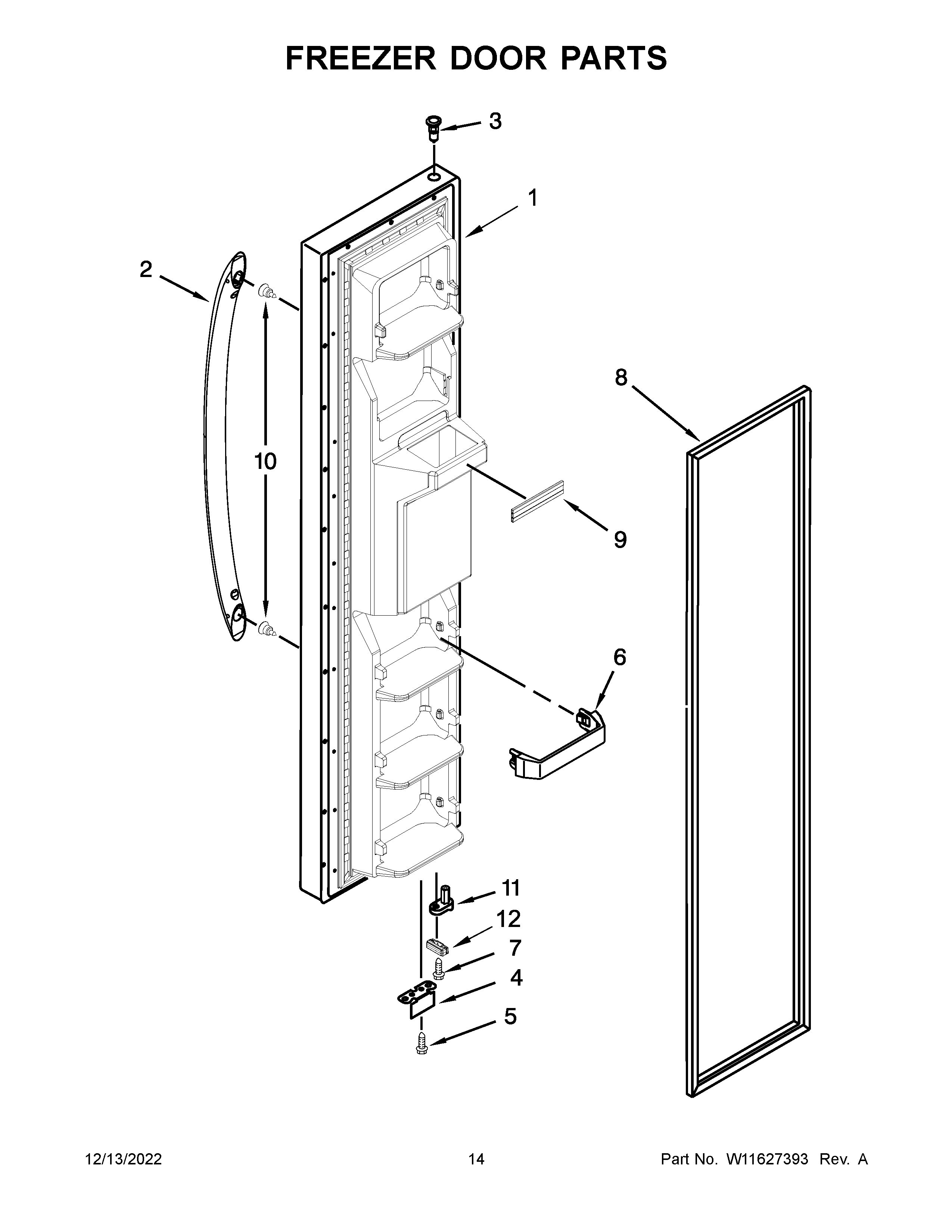

ASI2575GRS09 08 – FREEZER DOOR PARTS

ASI2575GRS09 08 – FREEZER DOOR PARTS

Written by

in

ASI2575GRS09 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW10898312 Whirlpool Refrigerator FIP Door
1ALW11108866 Whirlpool Refrigerator DOR-FIP
1LW11108865 Whirlpool Refrigerator Door FIP
2BWPW10257120 Whirlpool Refrigerator Handle
2AW10210943A Whirlpool Refrigerator Handle
2W10210942A Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309718 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
8A2159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10288153 Whirlpool Refrigerator Screw
11W11661926 Whirlpool Refrigerator Door Cam
12AW10407187 Whirlpool Refrigerator Door Bumper
12BUMPER, DOOR (WHITE)
