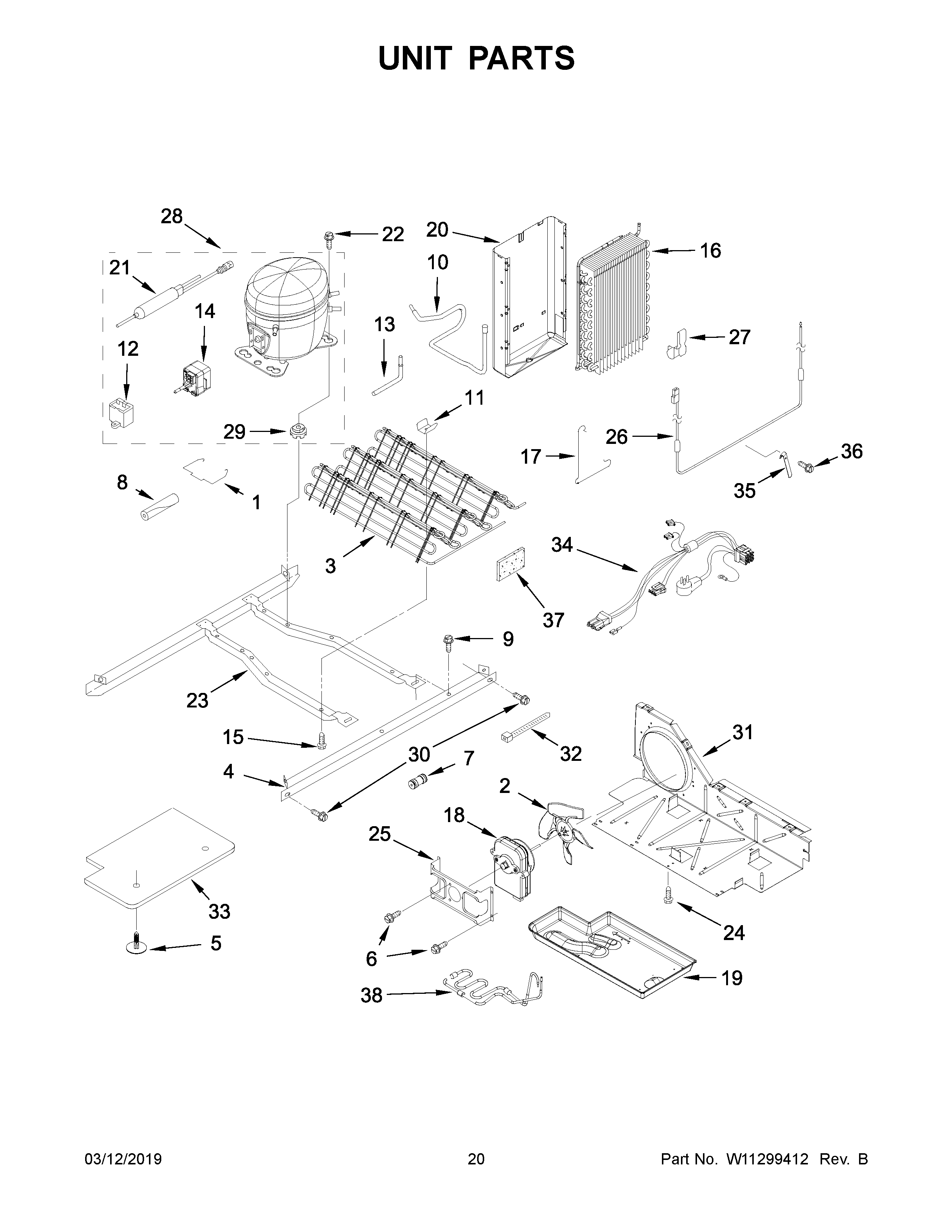

ASI2575GRW01 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10174384
2	MAY 2225834
3	ASSEMBLY, CONDENSER
4	RAIL, UNIT MOUNTING
5	MAY 489396
6	MAY 8533993
7	CONNECTOR, UNION
8	Sleeve, Pressure Switch Hose
9	MAY 489427
10	TUBE, SUCTION
11	MAY 2311725
12	MAY W10350564
13	TUBE, PROCESS
14	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
15	MAY 8281232
16	Evaporator
18	MOTOR, CONDENSER FAN
19	TRAY, EVAPORATOR
20	Heat Shield
21	MAY W10771114
22	MAY 489473
23	FRAME, UNIT MOUNTING
24	Screw (3)
25	MAY 2181929
26	MAY 2188175
27	Clip
28	COMPRESSOR
29	GROMMET, COMPRESSOR
30	MAY 489340
31	BAFFLE, AIR
32	MAY 2263990
33	ASSEMBLY, UNIT COVER (BOTTOM)
34	MAY W10670169
35	PROBE, HEAT
36	MAY 489478
37	SEALER, INSULATION
38	MAY W11189542
