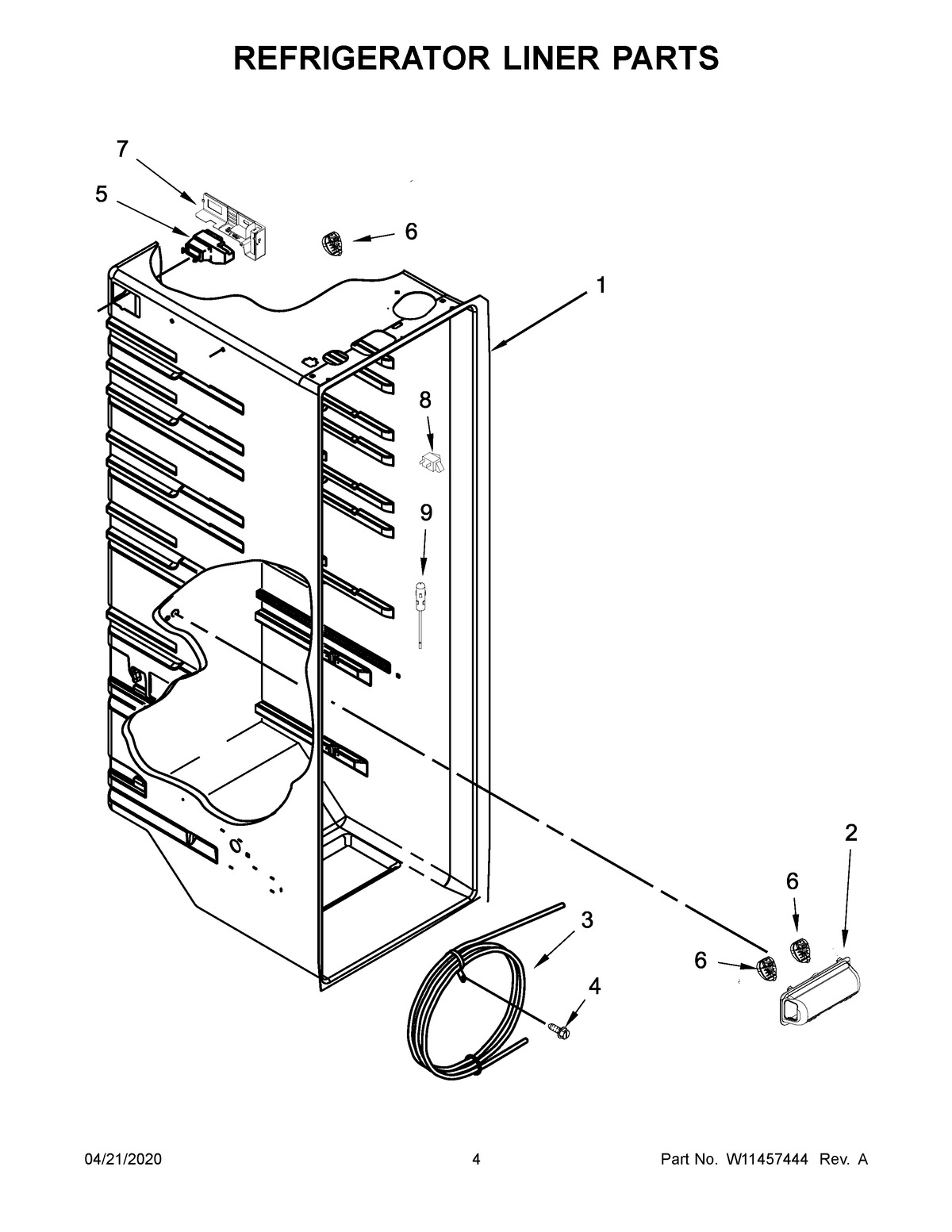

ASI2575GRW05 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	LENS, LIGHT (INCLUDES GASKET)
3	TUBING, WATER RESERVOIR
4	SCREW 8-15 X 3/4
5	DIFFUSER, AIR
6	MAY W11251749
7	ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CONTROL)
8	MAY 1118894
9	THERMISTOR
