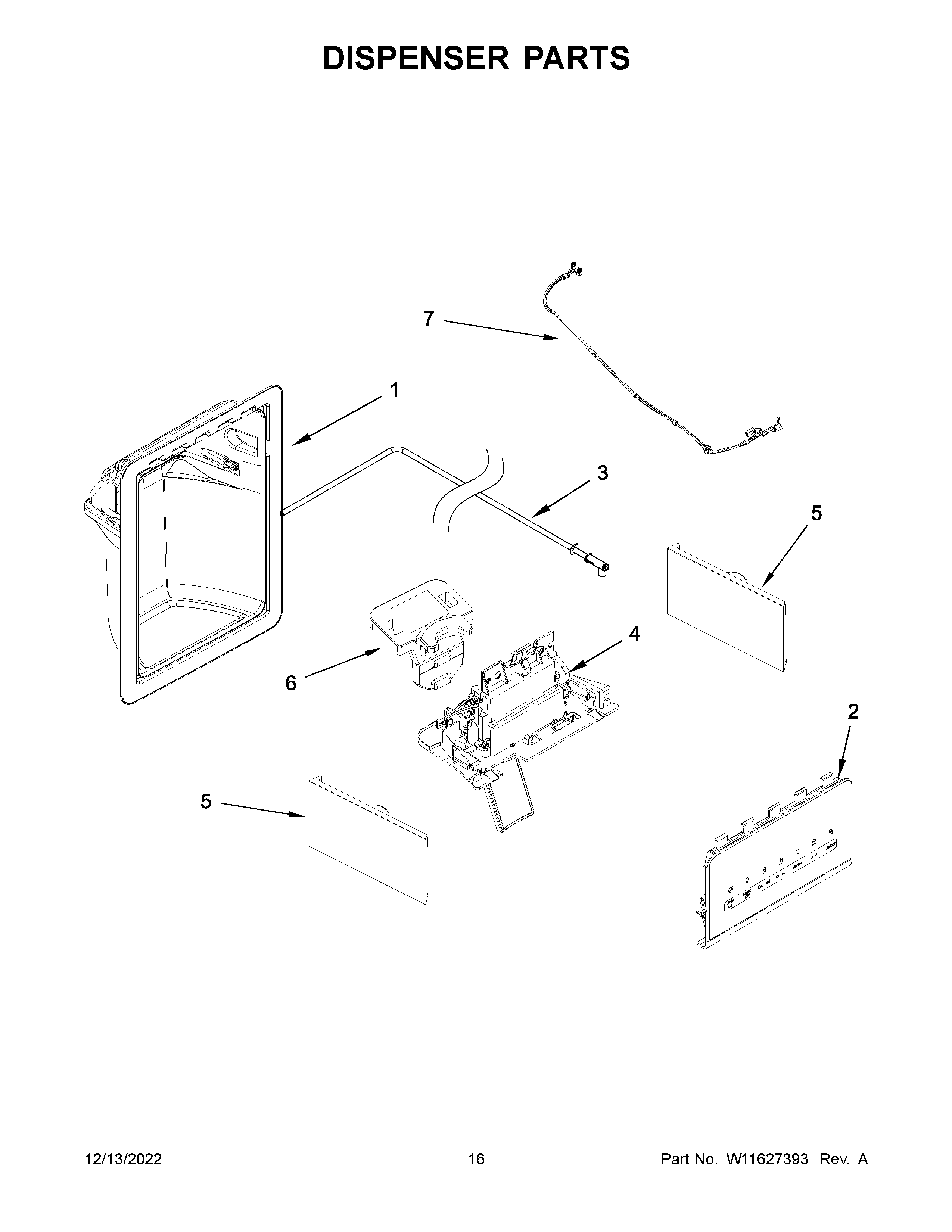

ASI2575GRW09 09 – DISPENSER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11216949-includeCORE Whirlpool W11216949 Refrigerator Electronic Control Board
3	W11163765 Whirlpool Refrigerator Fitting
4	W11678841 Whirlpool Ice Door Assembly
4A	W11678840 Whirlpool Ice Door
5	W11311797 Whirlpool Refrigerator Cover
5A	W11311798 Whirlpool Cover Assembly
5B	W11311800 Whirlpool Refrigerator Cover
5C	W11311799 Whirlpool Refrigerator Cover
6	W11397167 Whirlpool Refrigerator Retainer
7	W10898319 Whirlpool Refrigerator Wire Harness
