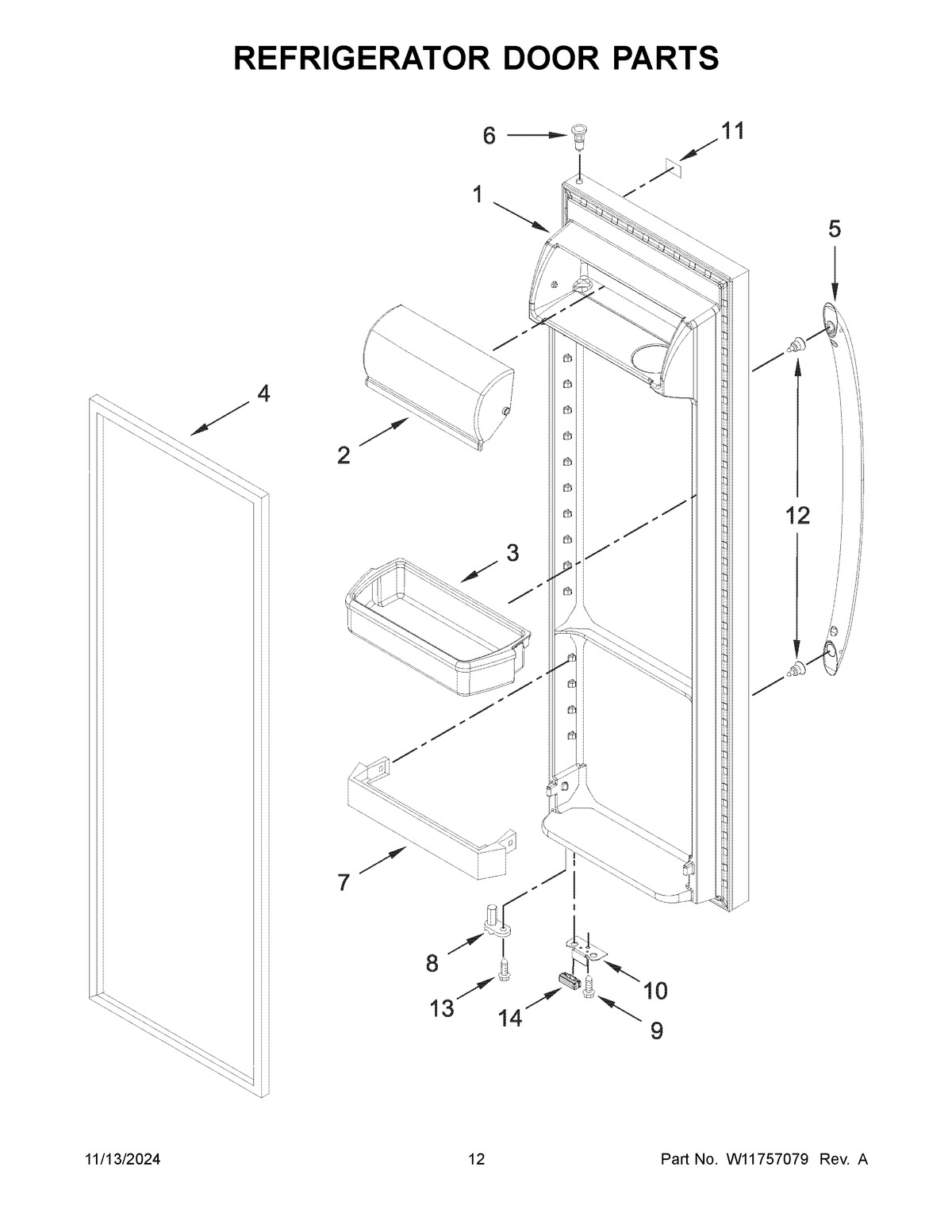

ASI2575GRW12 07 – REFRIGERATOR DOOR PARTS

ASI2575GRW12 07 – REFRIGERATOR DOOR PARTS

Written by

in

ASI2575GRW12 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW11156545 Whirlpool Refrigerator Door Kit FIP Stainless Steel
1ALW10912126 Whirlpool Refrigerator Door Assembly (Black)
1LW10912118 Whirlpool Refrigerator Door FIP
2WP2256101 Whirlpool Dairy Door
3W11174793 Whirlpool Refrigerator Upper Door Shelf Bin
42159075 Whirlpool Door Gasket Seal
4A2159083 Whirlpool Gasket Door
5BWPW10257120 Whirlpool Refrigerator Handle
5AW10210943A Whirlpool Refrigerator Handle
5W10210942A Whirlpool Refrigerator Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11AW11318226 Whirlpool Refrigerator Nameplate
11BW11182143 Whirlpool Microwave Nameplate
11W11428492 Whirlpool Refrigerator Nameplate
12WPW10288153 Whirlpool Refrigerator Screw
13WPW10142283 Whirlpool Refrigerator Screw
13AWP98008545 Whirlpool Screw
14BUMPER, DOOR (WHITE)
14AW10407187 Whirlpool Refrigerator Door Bumper
