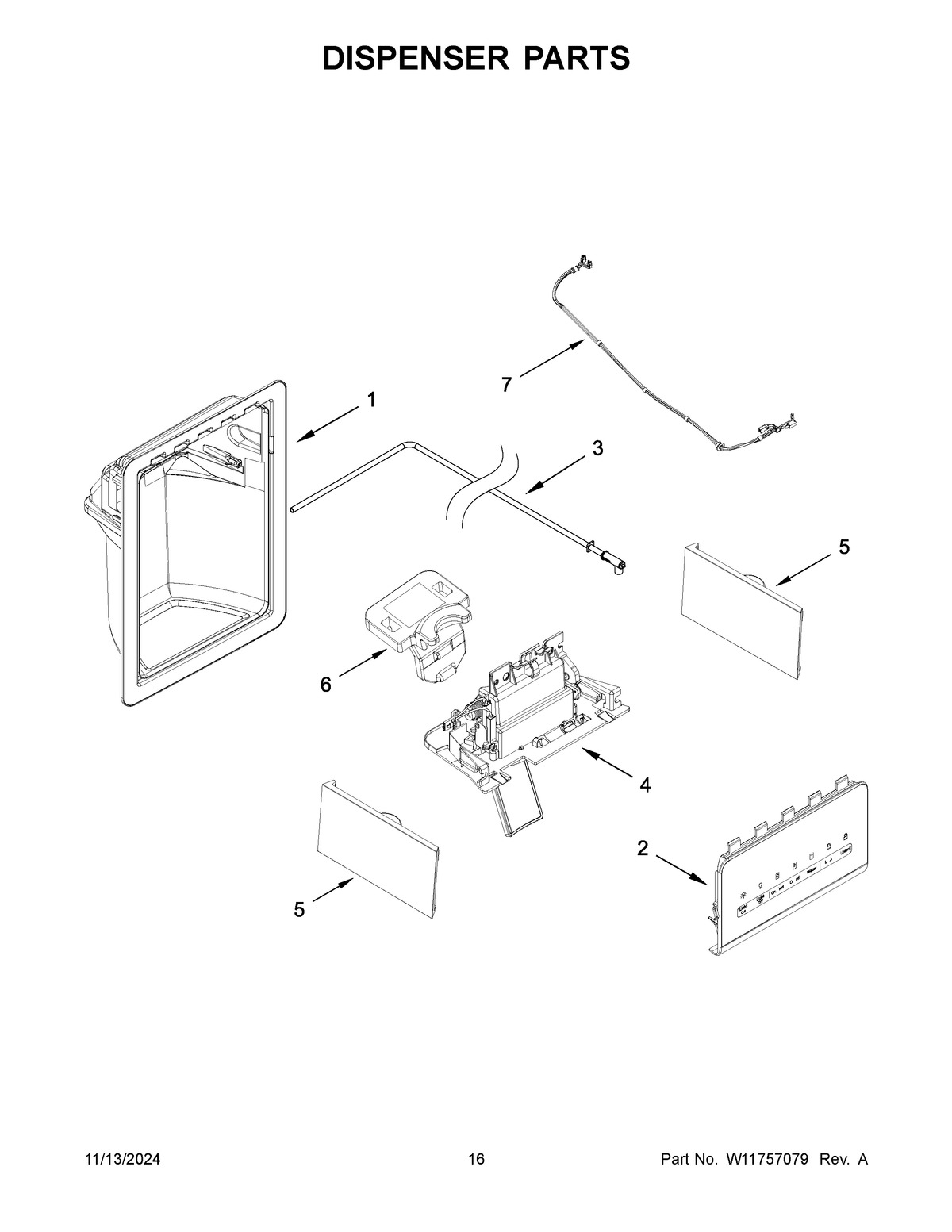

ASI2575GRW12 09 – DISPENSER PARTS

ASI2575GRW12 09 – DISPENSER PARTS

Written by

in

ASI2575GRW12 09 – DISPENSER PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2W11216949-includeCORE Whirlpool W11216949 Refrigerator Electronic Control Board
3W11163765 Whirlpool Refrigerator Fitting
4W11678841 Whirlpool Ice Door Assembly
4AW11678840 Whirlpool Ice Door
5AW11311798 Whirlpool Cover Assembly
5W11311797 Whirlpool Refrigerator Cover
5BW11311800 Whirlpool Refrigerator Cover
5CW11311799 Whirlpool Refrigerator Cover
6W11397167 Whirlpool Refrigerator Retainer
7W10898319 Whirlpool Refrigerator Wire Harness
