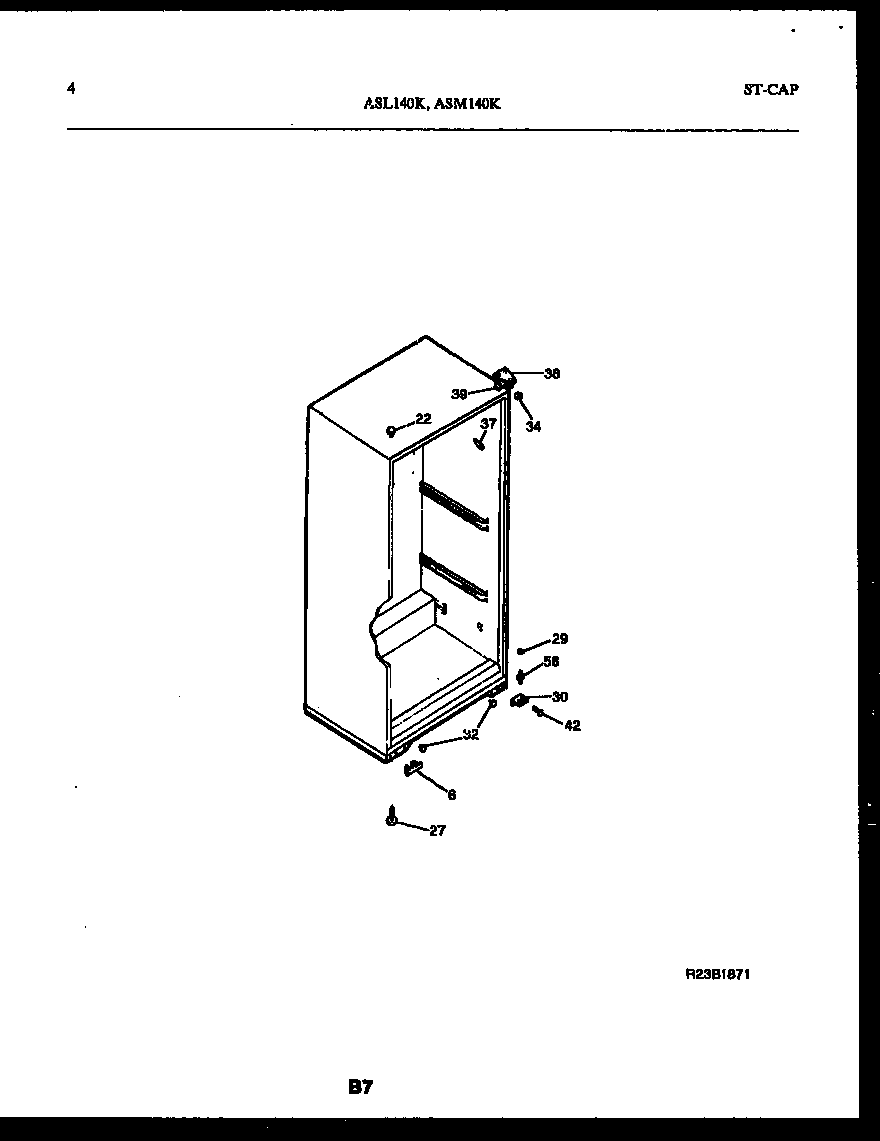

ASM140BK2 03 – CABINET PARTS

ASM140BK2 03 – CABINET PARTS

Written by

in

ASM140BK2 03 – CABINET PARTS

Products

PositionProduct
*58772SKID PAD, REAR CAB BASE (NI)
*58772WCI 5303001288
6WCI 3206135
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
27WCI 23206141
29WASHER, .28 X .62 X .19, NYLON
30WCI 3206136
32PLUG-BUTTON
34WASHER, .34 X .62 X .05, NYLON
37TRIM-CABINET CORNER, ALMOND
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
