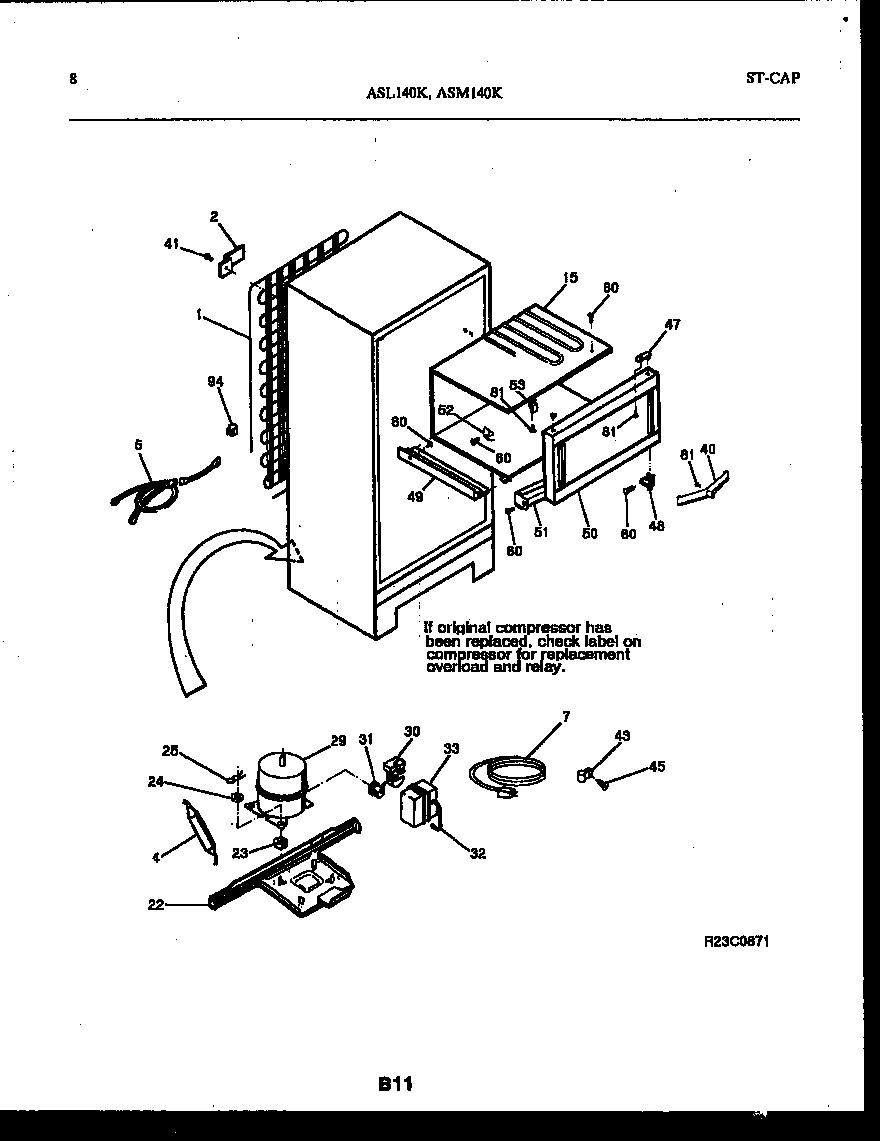

ASM140HK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

ASM140HK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

ASM140HK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*58778WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
*58778WCI 3916557
1WCI 08001012
1ASPACER-COND TUBE,BLACK
2BRACKET-MTG (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303209961
5AWCI 5303274235
7CORD-ELECTRIC POWER
15WCI 5303276694
22WCI 3206126
22A5304500008 Frigidaire Oven Screw
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
29COMPRESSOR W/ ELECTRICALS
30WCI 5303017583
31WCI 5303276693
32WCI 5303211232
33WCI 08016583
40CLAMP-CONTROL BULB (NON-ILLUSTRATED)
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
47WCI 08009748
48WCI 08009997
49WCI 08009749
50WCI 5303209938
51WCI 5300181105
52WCI 08014590
53WCI 5300185054
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
94CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
