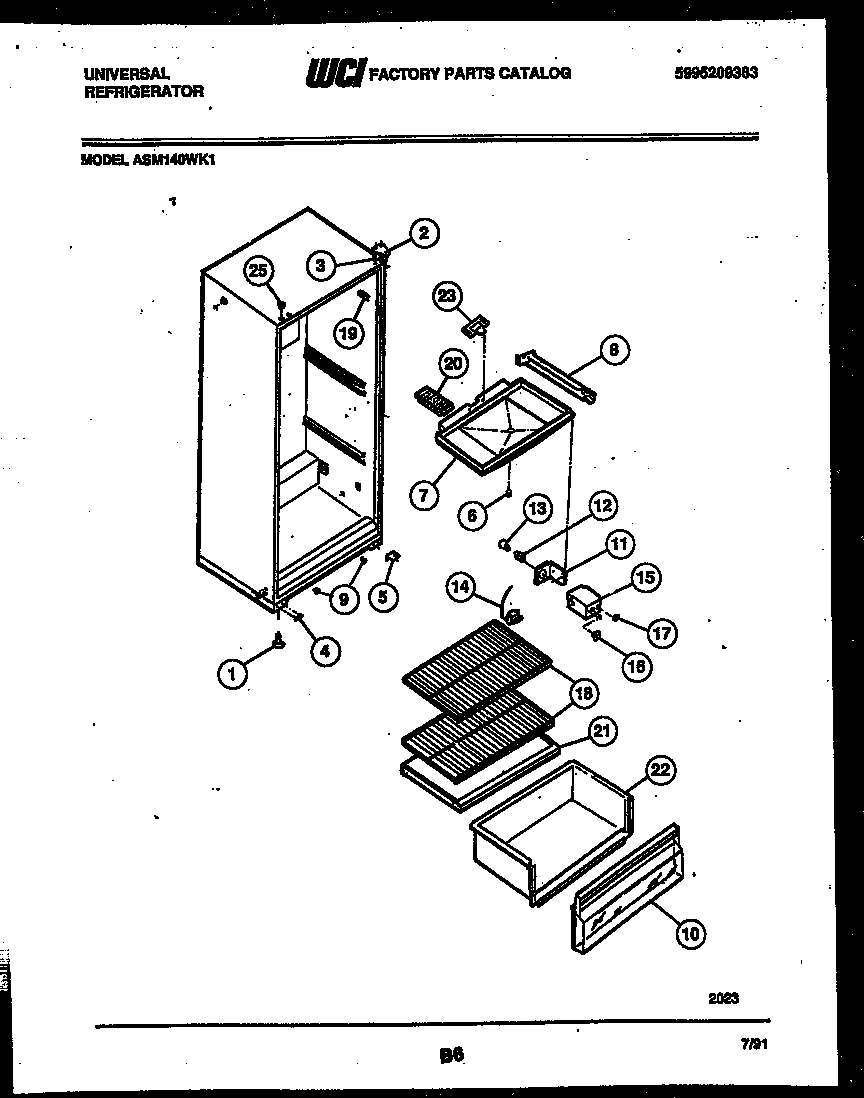

ASM140K1 03 – CABINET PARTSadmin2025-04-26T08:47:20+00:00ASM140K1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | SCREW-LEVELING, (2) |
| 2 | WCI 3206100 |
| 2B | WASHER, .34 X .62 X .05, NYLON |
| 3 | SHIM - UPPER HINGE |
| 4 | WCI 3206135 |
| 4A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 4A | WCI 5300185054 |
| 5 | WCI 3206136 |
| 5C | 241710601 Frigidaire Refrigerator Screw |
| 5B | WASHER, .28 X .62 X .19, NYLON |
| 5A | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 6 | WCI 08009779 |
| 7A | WCI 5300179982 |
| 7 | WCI 5317766801 |
| 8 | WCI 5300163217 |
| 8A | 5304455650 Frigidaire Refrigerator Screw |
| 9 | PLUG-BUTTON |
| 10 | WCI 3206106 |
| 11A | 5304455852 Frigidaire Refrigerator Screw |
| 11 | WCI 5300163210 |
| 12 | SOCKET-LIGHT/LAMP |
| 13 | 316538904 Frigidaire Oven Lamp Light |
| 14A | WCI 5303001260 |
| 14 | WCI 5316266703 |
| 15A | SCREW-MOUNTING (2) (NON-ILLUSTRATED) |
| 15 | WCI 5303209951 |
| 16 | WCI 5303209953 |
| 17 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 18 | WCI 5303209934 |
| 19 | TRIM-CABINET CORNER, WHITE |
| 19 | TRIM-CABINET CORNER, ALMOND |
| 19 | WCI 5303202338 |
| 20 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 21 | WCI 5303209935 |
| 22 | PAN-CRISPER, FULL-WIDTH |
| 23A | WCI 5300183114 |
| 23 | WCI 5300179612 |
| 23B | WCI 5300179540 |
| 25 | BUTTON-HINGE-WHEAT |
| 25 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 25 | PLUG-BUTTON, WHITE |
