ASM16DBS1 ROOM AIR CONDITIONER – Aparts

ASM16DBS1 ROOM AIR CONDITIONER

Products

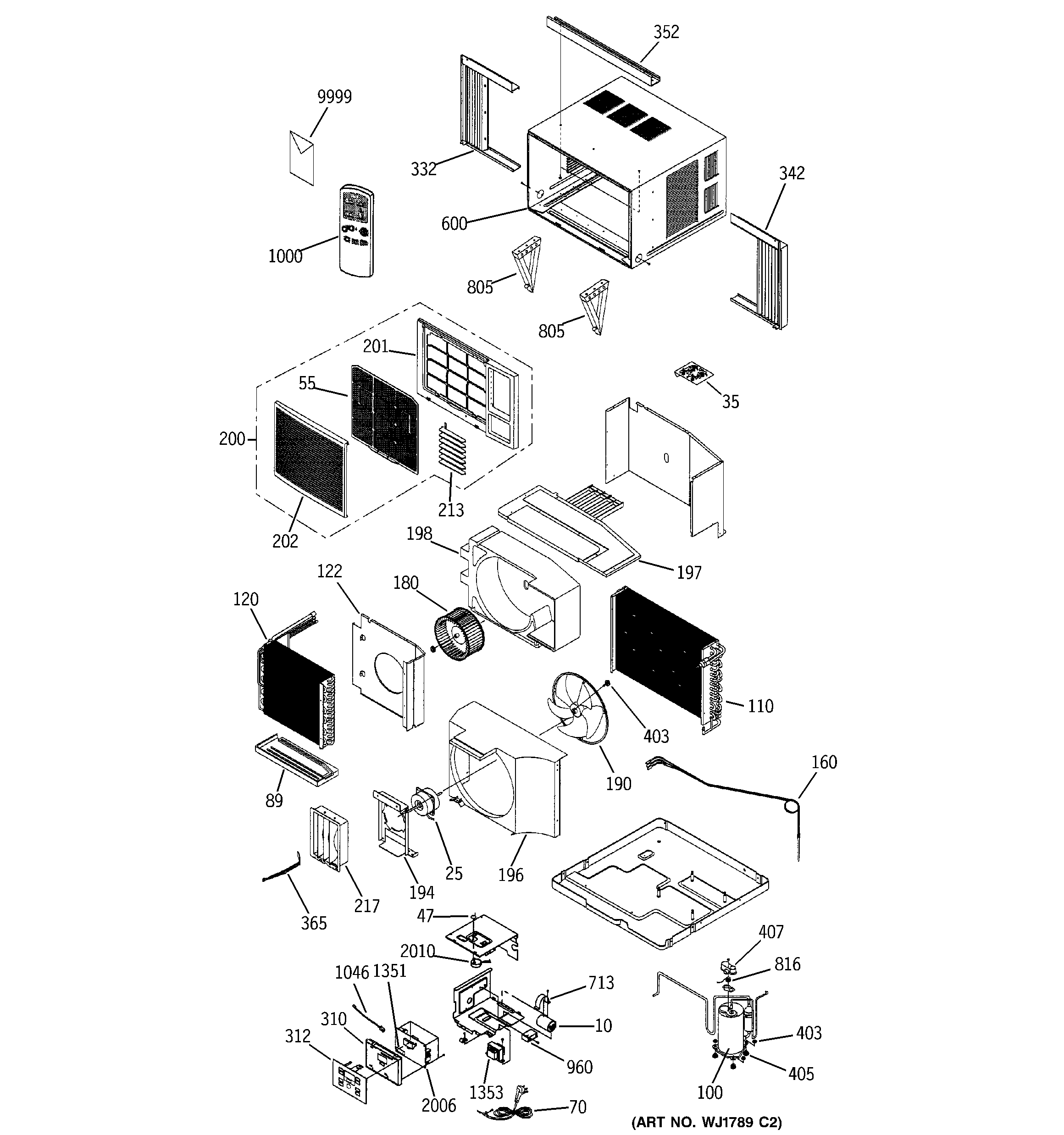

Position	Product
10	GEN WJ20X10052
25	GEN WJ94X10110
35	ASSY-SCREW HARDWARE PACK
47	GEN WJ01X10144
55	GUARD AIR-FILTER
70	GEN WJ35X10041
89	TRAY-DRAIN
100	GEN WJ98X10051
110	GEN WJ88X10049
120	EVAPORATOR
122	GEN WJ76X10057
160	CAPILLARY TUBE
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
200	GEN WJ71X10138
201	GRILLE FRAME
202	GRILLE-AIR INLET
213	LOUVERS HORIZONTAL
217	GEN WJ71X10215
310	GEN WJ26X10052
312	GEN WJ26X10053
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10151
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ68X10018
816	OVER LOAD PROTECTOR
960	GEN WJ20X10051
1000	GEN WJ26X10022
1046	GEN WJ27X10031
1351	FUSE 3.15A
1353	GEN WJ27X10036
2006	GEN WJ26X10054
2010	GEN WJ94X10071
9999	GEN 49-7405
9999	GEN 31-60724
