ASM22DAD1 ROOM AIR CONDITIONER

ASM22DAD1 ROOM AIR CONDITIONER

Written by

in

ASM22DAD1 ROOM AIR CONDITIONER

Products

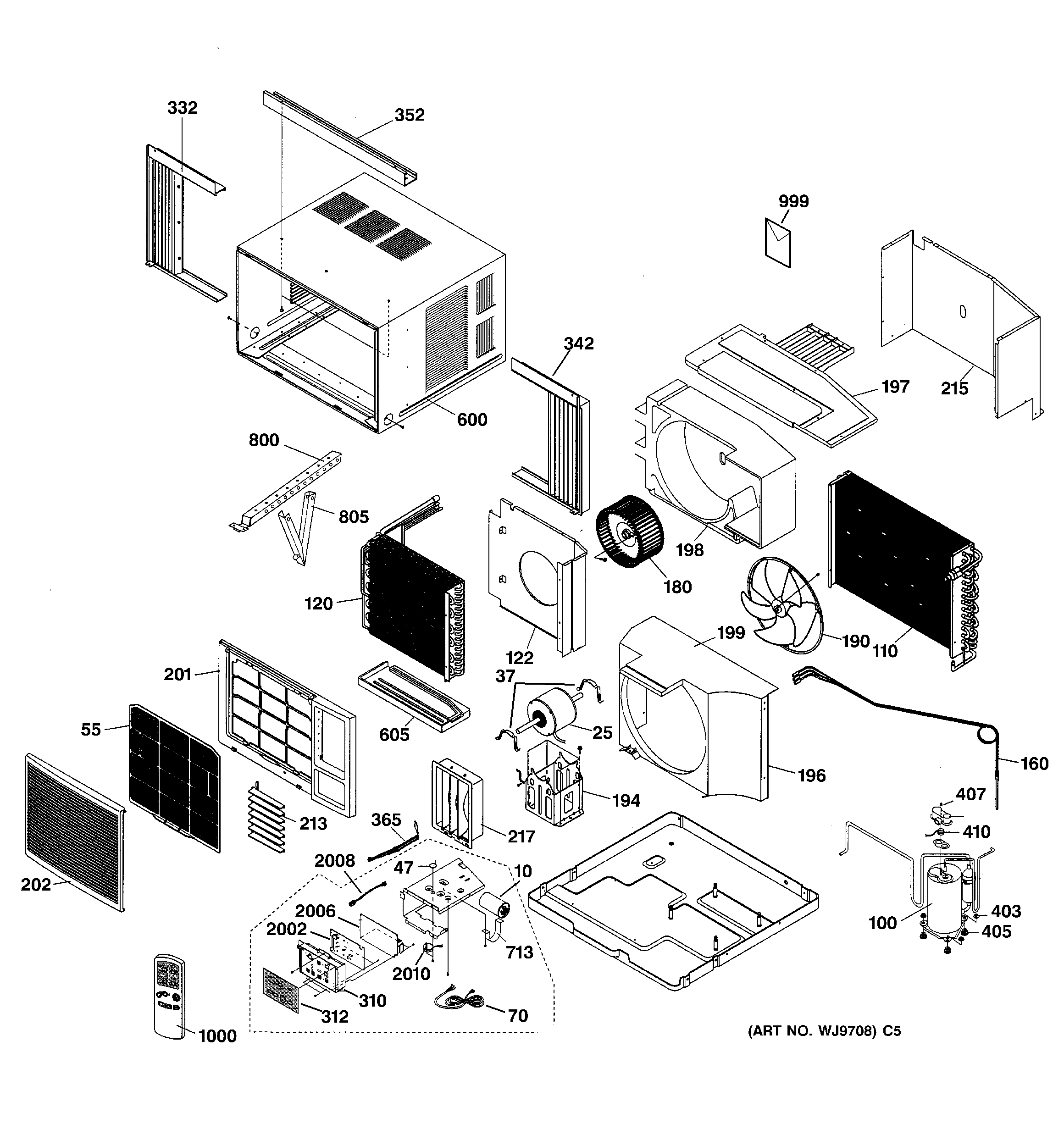

Position	Product
10	GEN WJ20X10035
25	GEN WJ94X10070
37	GEN WJ02X10021
47	GEN WJ01X10113
55	GUARD AIR-FILTER
70	GEN WJ35X10029
100	GEN WJ98X10047
110	CONDENSER
120	EVAPORATOR
122	GEN WJ76X10057
160	TUBE-CAPILLARY
180	GEN WJ73X10027
190	FAN BLADE – O.D.
194	GEN WJ95X10002
196	GEN WJ76X10055
197	GEN WJ01X10111
198	EVAPORATOR CASE
199	GEN WJ86X10013
201	GRILLE FRAME
202	GRILLE-AIR INLET
213	LOUVERS HORIZONTAL
215	GEN WJ71X10142
217	GEN WJ71X10143
310	GEN WJ26X10019
312	GEN WJ26X10018
332	GEN WJ86X10016
342	ACCORDIAN PANEL – RIGHT
352	GEN WJ86X10015
365	GEN WJ14X10019
403	GEN WJ01X10119
405	GEN WJ01X10112
407	GEN WJ86X10014
410	GEN WJ43X10017
600	GEN WJ90X10022
605	TRAY-DRAIN
713	CLIP-CAPACITOR
800	GEN WJ66X10032
805	GEN WJ66X10033
999	GEN 49-7387
999	GEN 31-60605
1000	GEN WJ26X10022
2002	GEN WJ26X10021
2006	GEN WJ26X10020
2008	GEN WJ27X10031
2010	GEN WJ94X10071
