ASM24DDS1 ROOM AIR CONDITIONER – Aparts

ASM24DDS1 ROOM AIR CONDITIONER

Products

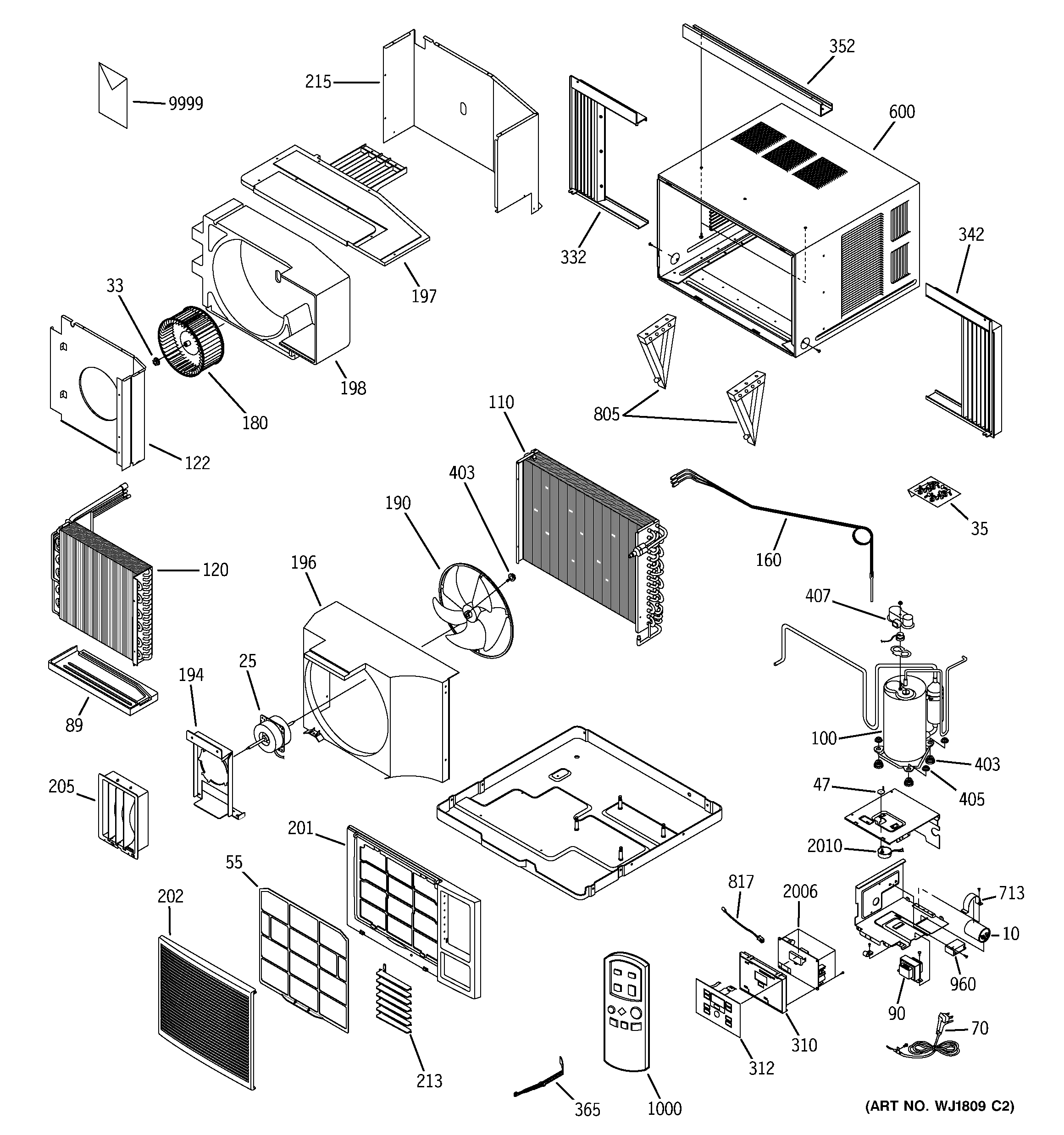

Position	Product
10	GEN WJ20X10076
25	MOTOR(YSK160-6A)
33	GEN WJ01X10147
35	GEN WJ01X10181
47	GEN WJ01X10144
55	GUARD AIR-FILTER
70	GEN WJ35X10042
89	TRAY-DRAIN
90	GEN WJ27X10053
100	GEN WJ98X10095
110	GEN WJ88X10089
120	GEN WJ87X10095
122	GEN WJ76X10061
160	GEN WJ53X10086
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
201	GRILLE FRAME
202	GRILLE-AIR INLET
205	GEN WJ71X10215
213	LOUVERS HORIZONTAL
215	GEN WJ71X10292
310	GEN WJ26X10052
312	GEN WJ26X10058
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10119
405	GEN WJ01X10182
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ66X10046
817	GEN WJ27X10050
960	GEN WJ20X10051
1000	GEN WJ26X10087
2006	GEN WJ26X10139
2010	GEN WJ94X10071
9999	GEN 49-7443
9999	GEN 31-61002
