ASN24DAD1 ROOM AIR CONDITIONER – Aparts

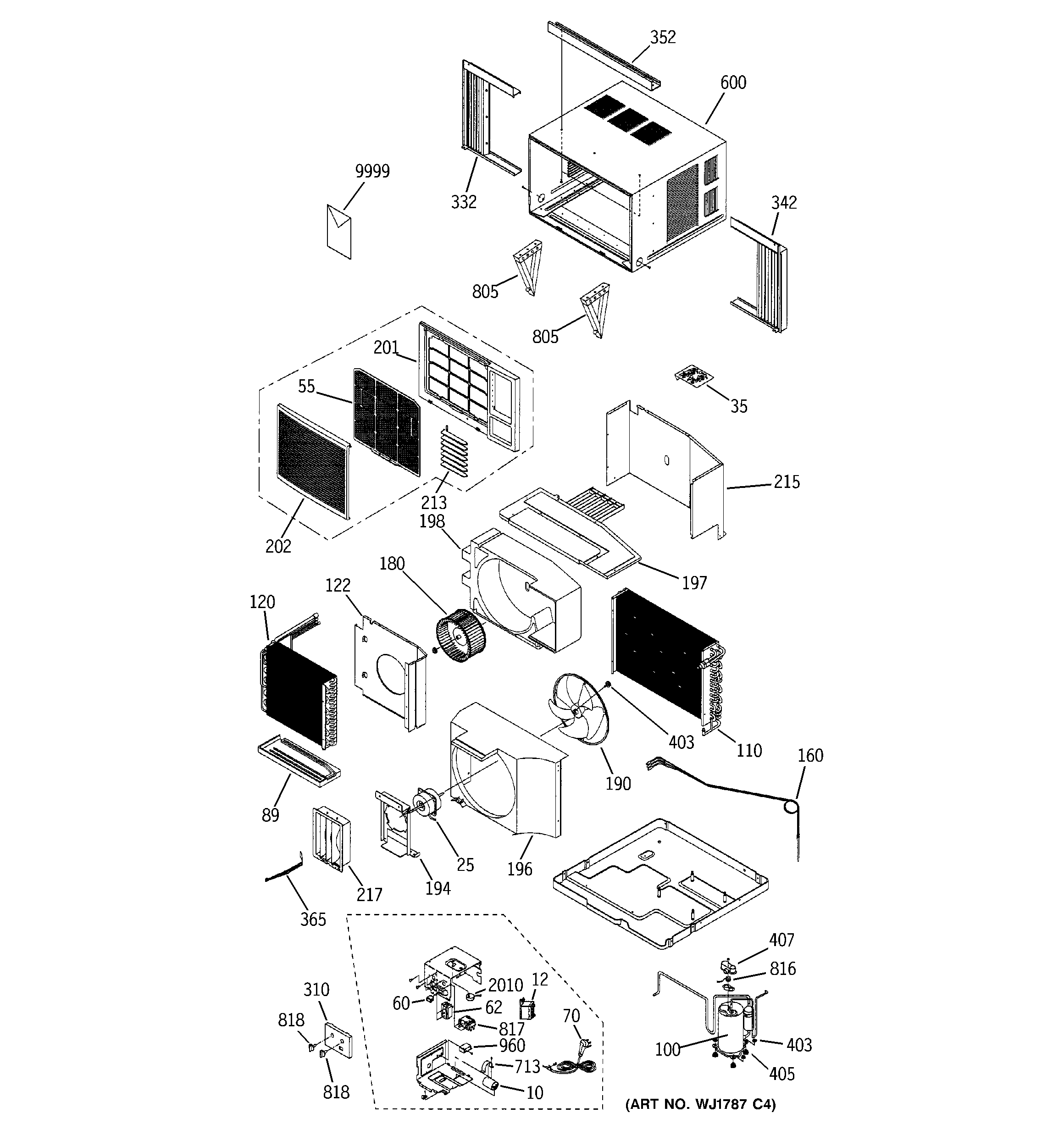

ASN24DAD1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10052
12	GEN WJ24X10003
25	GEN WJ94X10110
35	ASSY-SCREW HARDWARE PACK
55	FILTER
60	GEN WJ26X10024
62	GEN WJ26X10026
70	GEN WJ35X10042
89	TRAY-DRAIN
100	GEN WJ98X10046
110	CONDENSER
120	EVAPORATOR
122	GEN WJ76X10061
160	CAPILLARY TUBE
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
201	GRILLE FRAME
202	INLET GRILLE
213	LOUVERS - ADJ.
215	GEN WJ71X10292
217	GEN WJ71X10215
310	GEN WJ26X10044
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	DAMPER LEVER
403	GEN WJ01X10153
405	GEN WJ01X10112
407	GEN WJ86X10014
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ68X10018
816	GEN WJ23X10033
817	GEN WJ28X10016
818	GEN WJ12X10054
960	GEN WJ20X10063
2010	GEN WJ94X10071
9999	GEN 49-7405
9999	GEN 31-60726
