ASP18DBS1 ROOM AIR CONDITIONER – Aparts

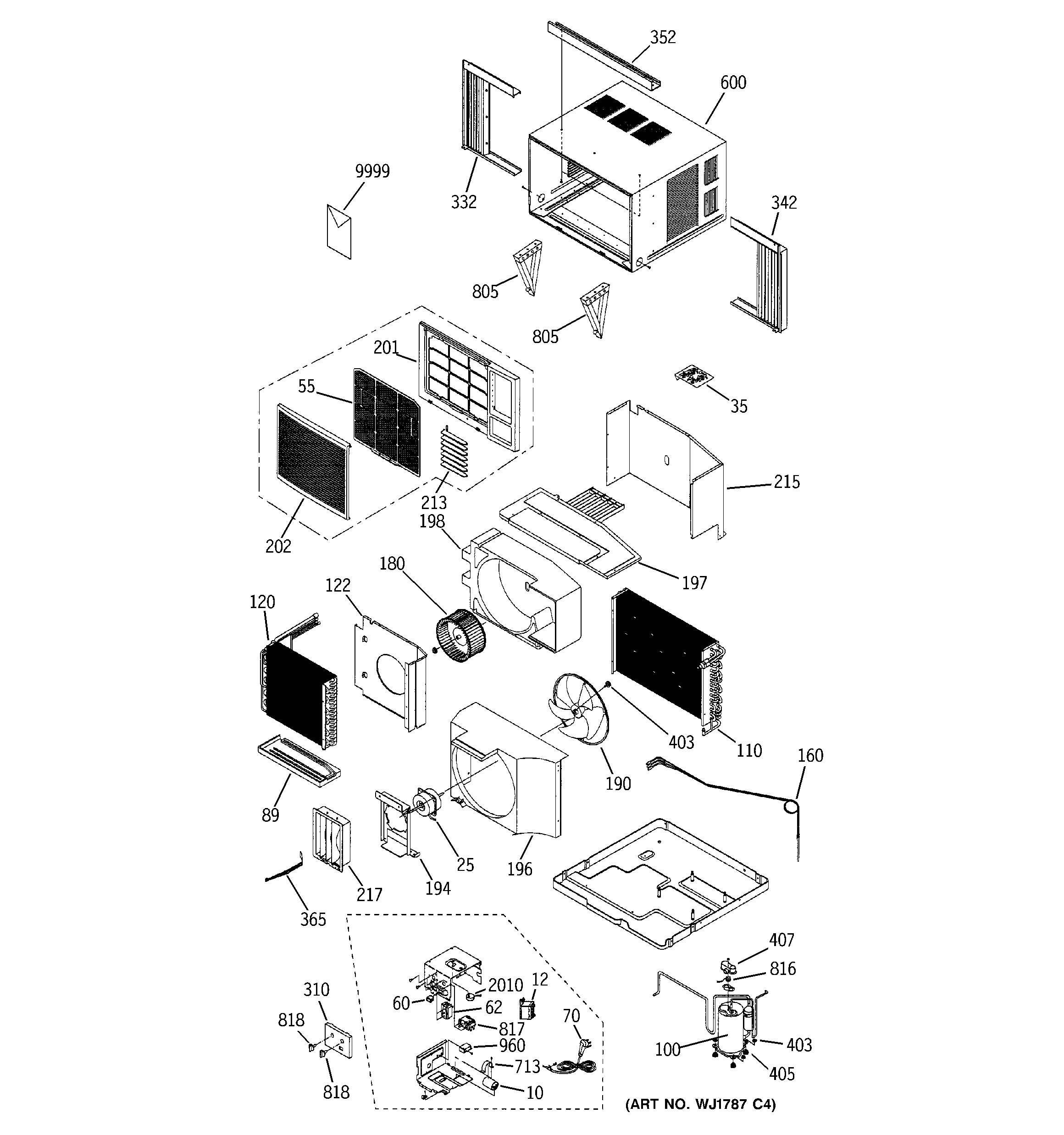

ASP18DBS1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10050
25	GEN WJ94X10110
35	ASSY-SCREW HARDWARE PACK
55	GEN WJ85X10044
62	SWITCH ROTARY
70	GEN WJ35X10041
89	TRAY-DRAIN
100	GEN WJ98X10049
110	CONDENSER
120	EVAPORATOR
122	GEN WJ76X10057
160	CAPILLARY TUBE
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
201	GEN WJ71X10241
202	GEN WJ71X10240
213	GEN WJ71X10242
217	GEN WJ71X10163
310	GEN WJ26X10060
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10027
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ68X10018
816	GEN WJ23X10029
817	GEN WJ28X10016
818	GEN WJ12X10053
960	GEN WJ20X10063
2010	GEN WJ94X10071
9999	GEN 49-7405
9999	GEN 31-60723
