AST05LBS1 ROOM AIR CONDITIONER – Aparts

AST05LBS1 ROOM AIR CONDITIONER

Products

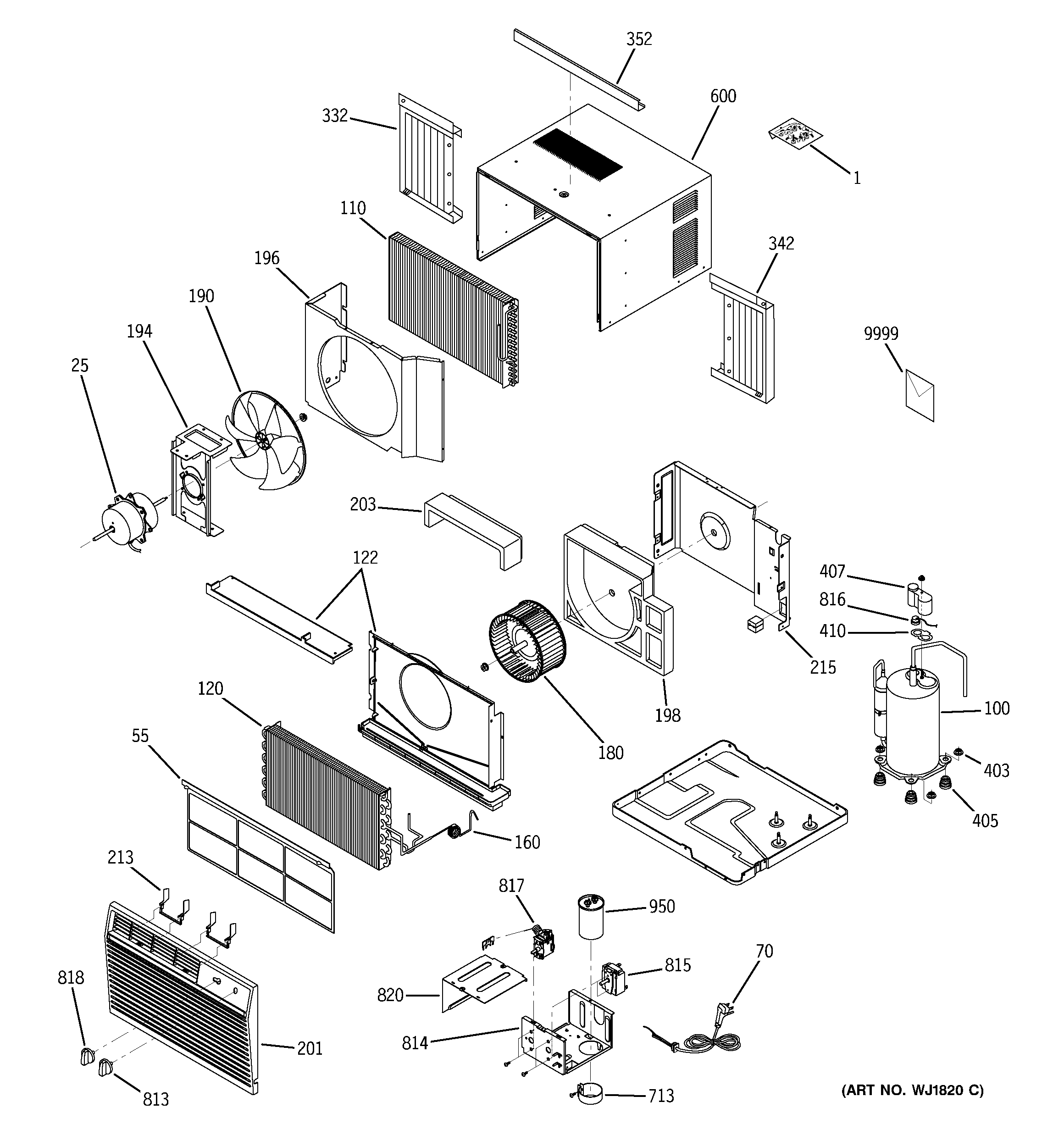

Position	Product
1	GEN WJ86X10037
25	GEN WJ94X10129
55	GEN WJ85X10035
70	GEN WJ35X10039
100	GEN WJ98X10090
110	CONDENSER ASS'Y
120	GEN WJ87X10064
122	GEN WJ76X10082
160	GEN WJ53X10060
180	GEN WJ73X10042
190	GEN WJ73X10029
194	MOUNTER MOTOR
196	CASE CONDENSER
198	GEN WJ76X10084
201	GEN WJ71X10207
203	GEN WJ76X10083
213	GEN WJ71X10269
215	GEN WJ71X10208
332	SHUTTER LEFT ASS'Y
342	SHUTTER RIGHT ASS'Y
352	SHUTTER ANGLE,UP
403	GEN WJ01X10119
405	GEN WJ01X10114
407	COVER-TERMINAL
410	GEN WJ43X10018
600	GEN WJ90X10023
713	GEN WJ03X10023
813	KNOB THERMO
814	GEN WJ76X10085
815	SWITCH ROTARY
816	GEN WJ23X10054
817	GEN WJ28X10015
818	GEN WJ12X10035
820	GEN WJ76X10086
950	GEN WJ20X10034
9999	GEN 31-60814
9999	GEN 49-7423
